REB-4315 Operational Manual

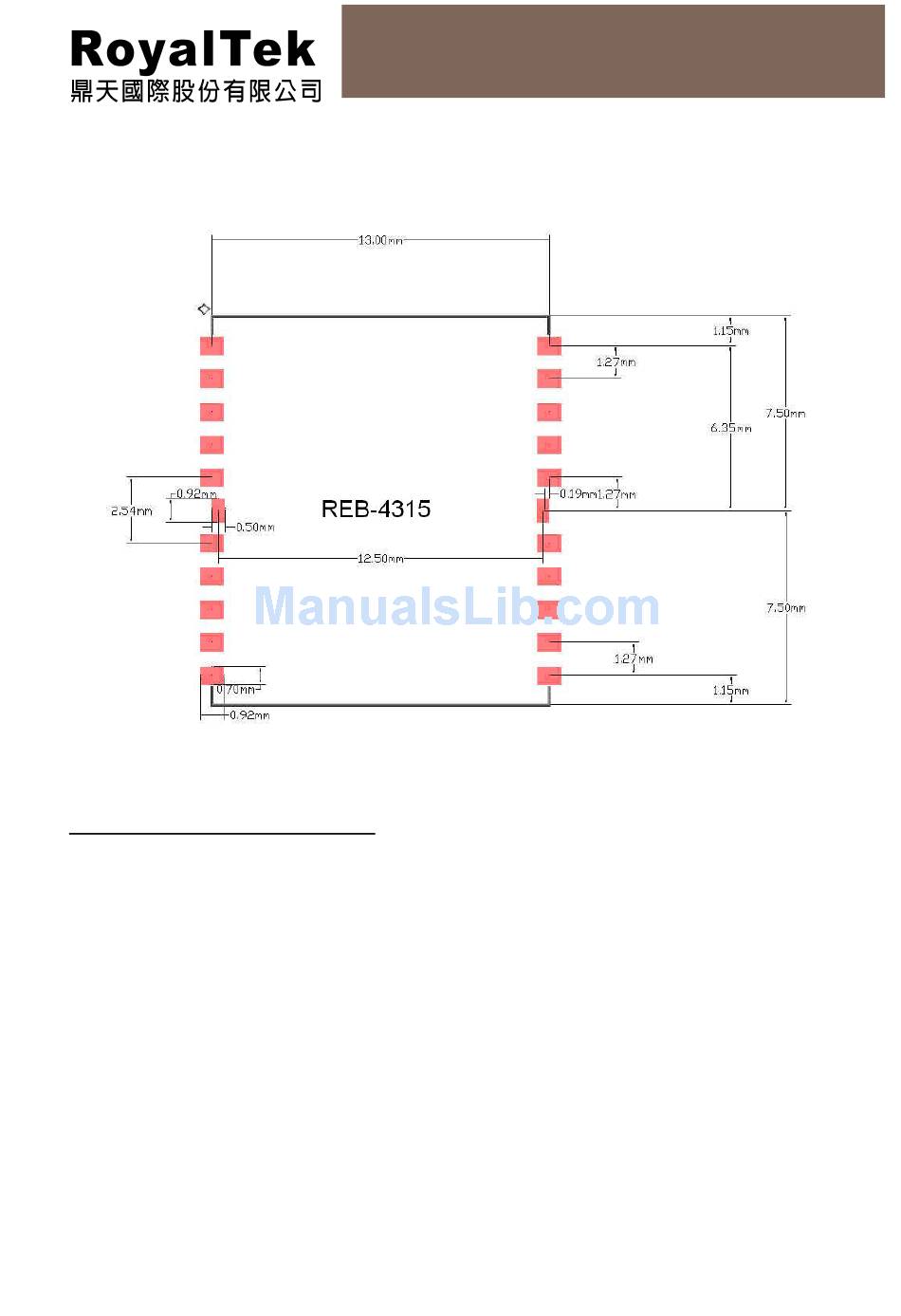

7 Recommend layout PAD:
Dimension：13mm*15mm*2.2mm(Tolerance：±0.2mm)
TOP View
Recommend paste mask pad
Recommend paste mask pad is shift outside the layout pad 0.2mm (See under figure)
Black Block is layout PAD、Blue Block(Gray region is paste mask pad recommend)
RoyalTek Confidential
7
