RGM-3600 Operational Manual
RGM-3600 Operational Manual
Version 1.2
2008/05/02
This document contains information highly confidential to RoyalTek Company
LTD (RoyalTek). It is provided for the sole purpose of the business discussions
between supplier and RoyalTek and is covered under the terms of the
applicable Non-Disclosure Agreements. Disclosure of this information to other
parties is prohibited without the written consent of RoyalTek.
Prepared by RoyalTek Company LTD.
4F., No.188, Wen Hwa 2nd Rd., Kuei Shan,
Tao Yuan 333, Taiwan
TEL: 886-3-3960001
FAX: 886-3-3960065
http://www.royaltek.com/contact
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RoyalTek RGM-3600
Summary of Contents for RoyalTek RGM-3600
- Page 1 2008/05/02 This document contains information highly confidential to RoyalTek Company LTD (RoyalTek). It is provided for the sole purpose of the business discussions between supplier and RoyalTek and is covered under the terms of the applicable Non-Disclosure Agreements. Disclosure of this information to other parties is prohibited without the written consent of RoyalTek.
-
Page 2: Table Of Contents
RGM-3600 Operational Manual Content Introduction ............... 3 RGM-3600 Picture ............4 RGM-3600 System Block Diagram........5 RGM-3600 Technique Specification........6 Mechanical Layout ............10 Software Specification and NMEA Protocol ..... 11 Package Specification and Order Information....17 Revision History .............. 17... -
Page 3: Introduction
Positioning System) applications. RGM-3600 represents the latest ingenious GPS technology from the leading GPS receiver manufacturer. Connecting to the notebook PC or Handheld PC implementing map or navigation software, RGM-3600 helps you locate one or multiple objects, conduct personal & vehicle navigation, and/or apply for geographical surveys. purchase:... -

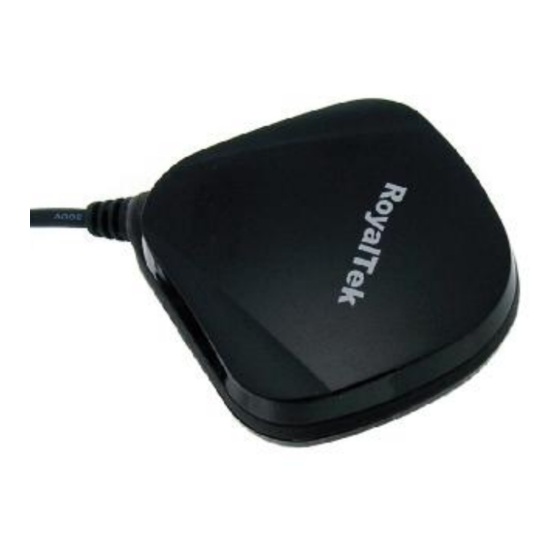

Page 4: Rgm-3600 Picture
RGM-3600 Operational Manual 2. RGM-3600 Picture... -
Page 5: Rgm-3600 System Block Diagram
RGM-3600 Operational Manual 3. RGM-3600 System Block Diagram System block diagram description: a. Patch antenna with 1 Stage LNA b. 4Mega bits flash memory on chip c. 6pin I/O pin (pin 5, pin6 for internal) SIRF 6Pin I/O GSC3f/LP with 4M Flash... -
Page 6: Rgm-3600 Technique Specification
RGM-3600 Operational Manual 4. RGM-3600LP Technique Specification Function Specification GPS receiver Chipset SiRF GSC3f/LP Frequency L1 1575.42MHz. Code C.A. Code. Channels Chipset Sensitivity -159dBm Chipset cold start 35 sec @ open sky Chipset warm start 35 sec @ open sky... - Page 7 RGM-3600 Operational Manual 24 SRAM backup battery 3.3mAhr Li-Ion rechargeable battery. Battery life at full charge is ≥ 7 days. Environment -20 ~ +60℃ Operating temperature -20 ~ +60℃ Storage temperature ≦95% Humidity Hardware Interface 1. 2. 3. 4. 6.
- Page 8 RGM-3600 Operational Manual ． ． ． ． RXA This is the main receiver channel and is used for receiving software commands to the board from SiRFdemo software or software written by users themselves. PS: Pull up if not used. ． ． ． ． TXA...
- Page 9 RGM-3600 Operational Manual - (Y cable) 9 pin D-SUB Interface Pin Number: Table 2 Signal Nam e Descr ipt ion Characterist ics 1 No connect 2 TX O Serial Data Output High: -3V ~ -15V Low: +3V ~ +15V 3 RX...
-
Page 10: Mechanical Layout
RGM-3600 Operational Manual 5. Mechanical Layout Unit： ： ： ： mm... -
Page 11: Software Specification And Nmea Protocol
RGM-3600 Operational Manual 6. Software Specification and NMEA Protocol Software Specification GPS Firmware [GSW3] GGA(1),GSA(1),GSV(5),RMC(1) 4800 GPS Firmware GPS Utility A GPS performance diagnostic utility is required C/NO, TTFF WAAS Enable NMEA V3.0 Protocol Its output signal level is TTL: 4800 bps (default), 8 bit data, 1 stop bit and no parity. It supports the following NMEA-0183 Messages: GGA, GLL, GSA, GSV, RMC and VTG. - Page 12 RGM-3600 Operational Manual Position Fix Indicator See Table 2-1 Satellites Used Range 0 to 12 HDOP Horizontal Dilution of Precision MSL Altitude meters Units meters Geoid Separation meters Units meters Age of Diff. Corr. second Null fields when DGPS is not used Diff.
- Page 13 RGM-3600 Operational Manual GSA-GNSS DOP and Active Satellites Table 4 contains the values of the following example: $GPGSA, A, 3, 07, 02, 26, 27, 09, 04, 15, , , , , , 1.8,1.0,1.5*33 Table 4 GSA Data Format Name Example...
- Page 14 RGM-3600 Operational Manual Number of Range 1 to 3 Messages Messages Number Range 1 to 3 Satellites in View Satellite ID Channel 1(Range 1 to 32) Elevation degrees Channel 1(Maximum 90) Azimuth degrees Channel 1(True, Range 0 to 359) SNR (C/No)
- Page 15 RGM-3600 Operational Manual Checksum ＜CR＞＜LF＞ End of message termination VTG-Course Over Ground and Ground Speed Table 7 contains the values of the following example: $GPVTG, 309.62, T, , M, 0.13, N, 0.2, K*6E Table 7 VTG Data Format Name Example...
- Page 16 RoyalTek RGM-3600 Operational Manual GPS Receiver User’s Tip GPS signals are affected by weather and environmental conditions. It is suggested to use the GPS receiver under less shielding environments to ensure GPS receiver has better receiving performance. When GPS receiver is in moving condition, it will prolong the time to fix the position.
-
Page 17: Package Specification And Order Information
RoyalTek RGM-3600 Operational Manual Package Specification and Order Information Color box (40pcs/carton) - Honeycomb (160pcs/box) - White box (40pcs/carton) -
Page 18: Revision History
Order Information, add 4. RGM-3600LP Technique Specification cable connector type. Contact Information Section Contact: sales@royaltek.com Headquarter: Address: 4F., No.188, Wen Hwa 2nd Rd., Kuei Shan, Tao Yuan 333, Taiwan TEL: 886-3-3960001 FAX: 886-3-3960065 Web Site: http://www.royaltek.com Web Site Customer Service: http://www.royaltek.com/contact...
