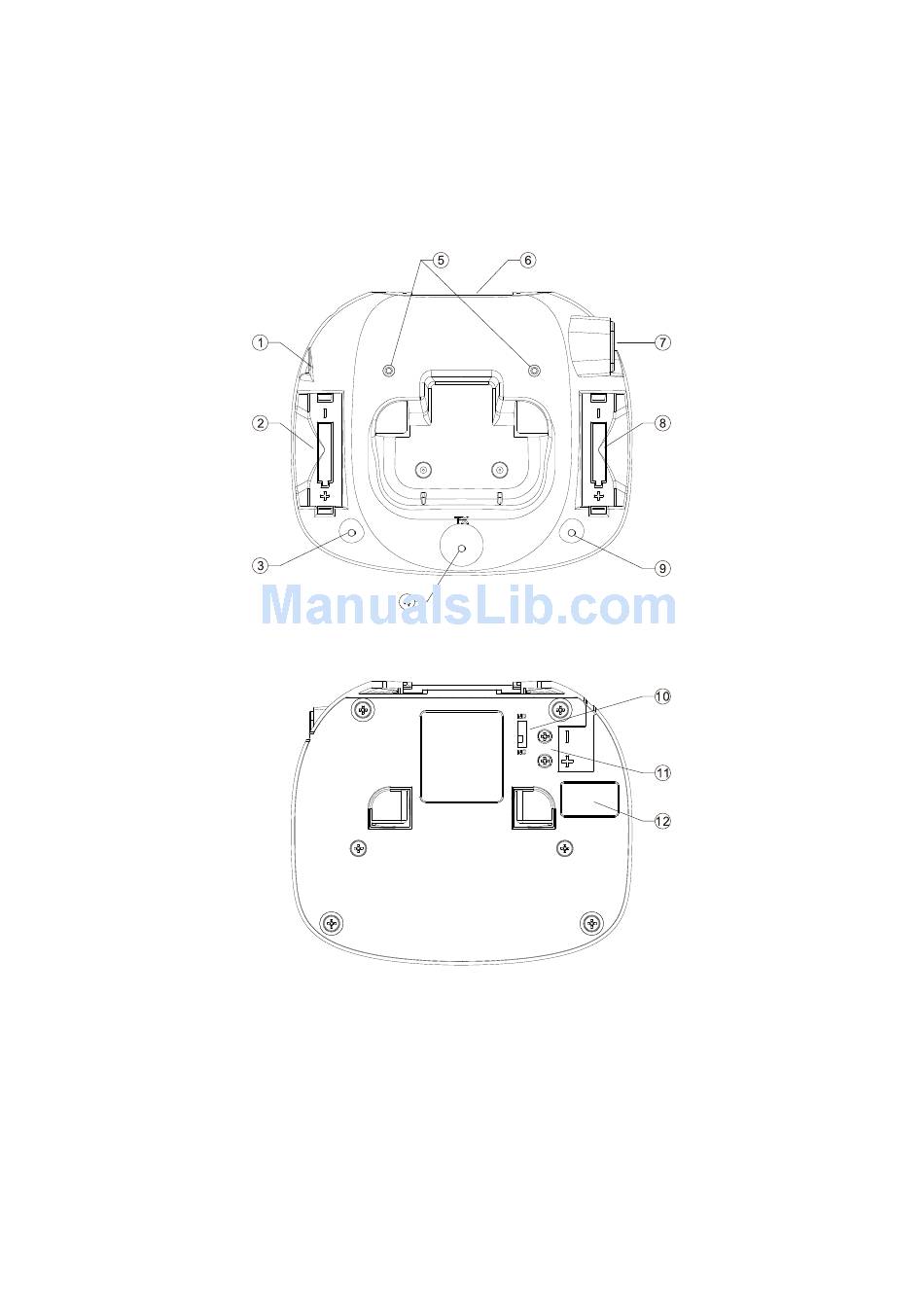

Flex EX2 Charging Instructions
1)
DC power cord input
2)
"AA" rechargeable battery slot-A
3)
Battery slot-A LED charging indication
4)
Transmitter LED charging indication
5)
Rubber safety belt attachment slot
6)
Mounting bracket attachment slot
7)
AC power cord input
8)
"AA" rechargeable battery slot-B
9)
Battery slot-B LED charging indication
10) External light indicator NO/NC switch
11) External light indicator output
12) External light indicator table
Page 1
Advertisement
Related Manuals for Flex EX2
Summary of Contents for Flex EX2
- Page 1 Flex EX2 Charging Instructions DC power cord input AC power cord input “AA” rechargeable battery slot-A “AA” rechargeable battery slot-B Battery slot-A LED charging indication Battery slot-B LED charging indication Transmitter LED charging indication 10) External light indicator NO/NC switch...
- Page 2 The transmitter is designed to accept any off-the-shelf Ni-MH rechargeable batteries. When charging both transmitter and individual batteries at the same time the priority always goes to the transmitter charging. The individual battery charging begins only after the transmitter charging is completed. Depending on the battery capacity the average charging time is approximately 3 hours from completely drained to fully charged.
- Page 3 If mounting bracket is used (optional), slide down the charging station along the guided track to secure the charging station to the mounting bracket. Remove the charging station by pressing down the bracket release and pull the charging station upward until it clears the guided track. External light indication can be used to remind the user whether the transmitter is situated on the charging station or not.
