Risco RWX34S Installation Instructions Manual

Risco RWX34S Installation Instructions Manual

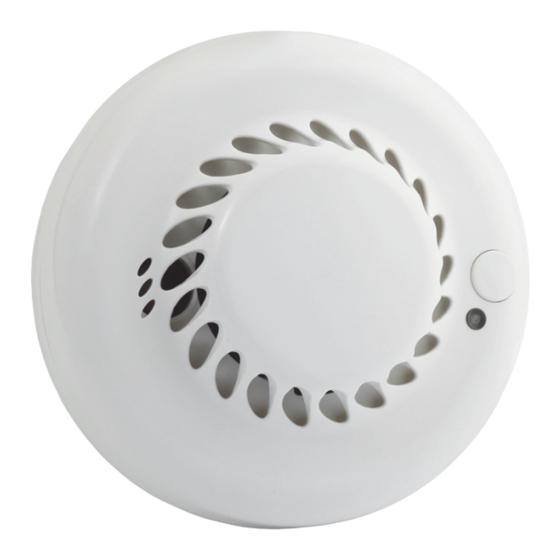

Smoke & heat detector
Hide thumbs Also See for RWX34S:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual

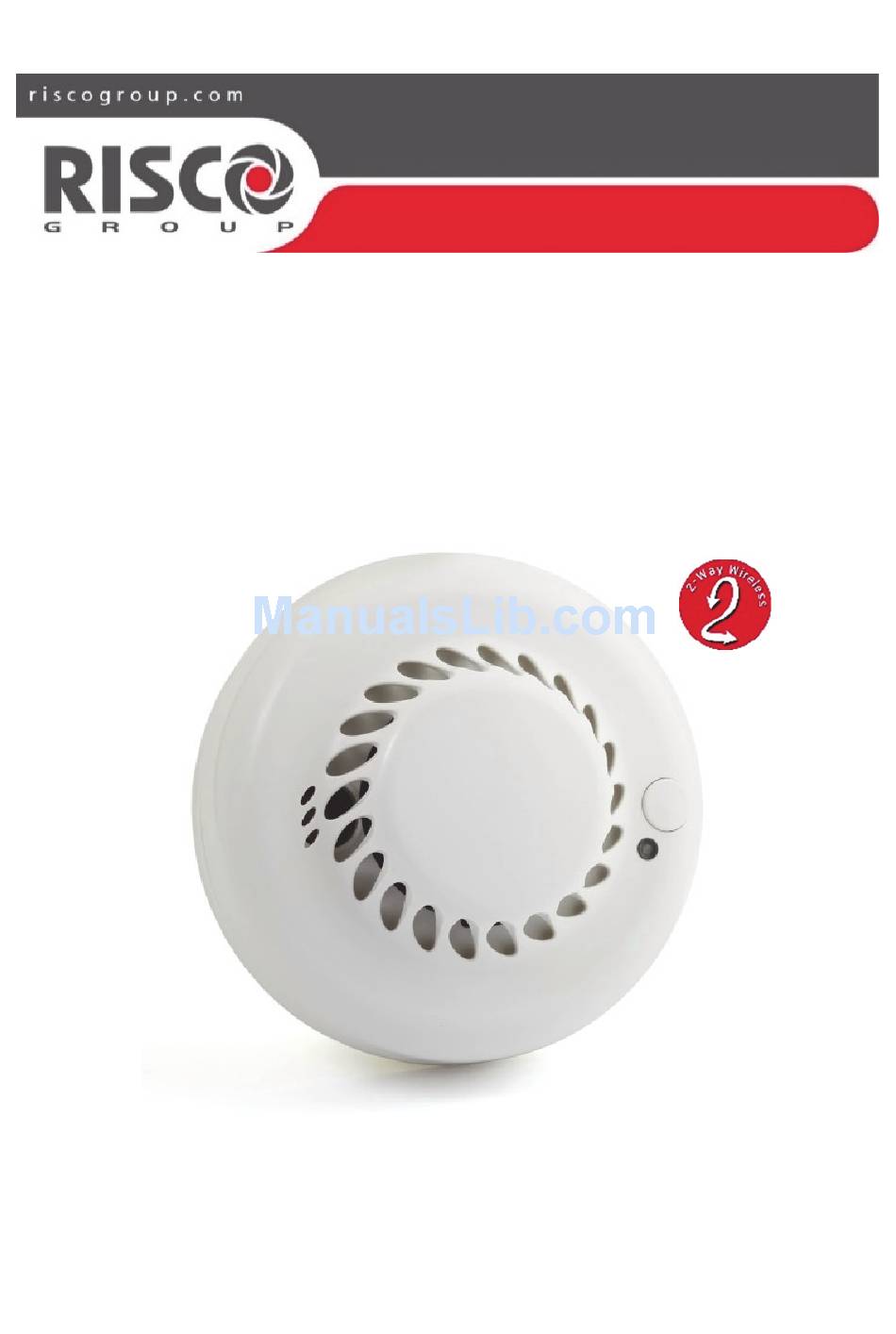

SMOKE
& HEAT DETECTOR
MODEL: RWX34S
INSTALLATION INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RWX34S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Risco RWX34S

Summary of Contents for Risco RWX34S

  • Page 1: Heat Detector

    SMOKE & HEAT DETECTOR MODEL: RWX34S INSTALLATION INSTRUCTIONS...

  • Page 2: General Description

    GENERAL DESCRIPTION RISCO Group’s RWX34S Wireless Smoke and Heat Detector combines advanced technologies within a compact and streamlined design, the ideal choice for homeowners seeking the highest safety standards. With both smoke and heat detection capabilities , the Smoke and Heat Detector offers a more sensitive and dependable product for early detection of fire hazards in different environments with a reduced risk of false alarms.

  • Page 3: Selecting A Location

    SELECTING A LOCATION Smoke and heat detectors should be installed in accordance with the NFPA Standard 74 (National Fire Protection Association, Batterymarch Park, Quincy, MA 02169). For complete coverage in residential units, smoke and heat detectors should be installed in all rooms, halls, storage areas, basements, and attics in each family living unit.
  • Page 4  Install basement detectors at the bottom of the basement stairwell.  Install second-floor detectors at the top of the first-to-second floor stairwell.  Be sure no door or other obstruction blocks the path of smoke to the detector.  Install additional detectors in your living room, dining room, family room, attic, utility and storage Figure 3: Location for placing smoke and...
  • Page 5 CAUTION: (As required by the California State Fire Marshall) “Early warning fire detection is best achieved by the installation of fire detection equipment in all rooms and areas of the household as follows: (1) A smoke and heat detector installed in each separate sleeping area (in the vicinity, but outside of the bedrooms), and (2) Heat or smoke and heat detectors in the living rooms, dining rooms, bedrooms, kitchens, hallways, attics, furnace rooms, closets, utility and, storage rooms, basements and...
  • Page 6  Dead-air spaces, which are often at the Air Return Air Entry top of a peaked roof, or in the corners Bath Stove between ceilings and walls. Dead air Bedroom may prevent smoke from reaching a detector. See Figures 1 - 6 for Kitchen recommended mounting locations.

  • Page 7: Installation

    INSTALLATION The smoke and heat detector is to be mounted on the ceiling or on the wall, if necessary. Since the smoke and heat detector is a single-station type, it cannot be linked to other detectors. WARNING: Do not connect the smoke and heat detectors to any other alarm or auxiliary device.
  • Page 8 7. Allocate the sensor at the WiComm Smart Hub: The smoke detector must identify itself to the WiComm Smart Hub. This can be performed either using the RISCO Express Wizard (www.riscocloud.com/express) by adding the smoke at the time of the Smart Hub system installation or later either by using the “Settings”...
  • Page 9 9. Insert the locking pin in order to secure the mounting bracket to the detector (Figure 7). 10. Pull the detector outward to make sure it is securely attached to the mounting bracket. 11. Perform a functional test of the detector according to the Testing section of these instructions.

  • Page 10: Battery Replacement

    SMOKE AND HEAT DETECTOR MAINTENANCE To keep your detector in good working condition, you must test the detector weekly, according to the “Testing Your Smoke and Heat Detector” section. CLEANING THE SMOKE AND HEAT DETECTOR Clean the detector housing with a dry or damp cloth to remove dust and dirt. If necessary, open the smoke chamber and clean the interior of the detector.

  • Page 11: Specifications

    Height: 2 in (53 mm) Transmitter Characteristics: Nominal Center Smoke & Heat Detector, 1 & 2 way 915 Frequency In order to continue improving the product, RISCO Group reserves the right to change specifications and/or designs without prior notice. Ordering Information Model Description RWX34S Smoke &...

  • Page 12: Fcc Note

    (RISCO Group's.) could void the user's authority to operate the equipment. Contacting RISCO Group RISCO Group is committed to customer service and product support. You can contact us through our website (www.riscogroup.com) or at the following telephone and fax numbers: United Kingdom...
