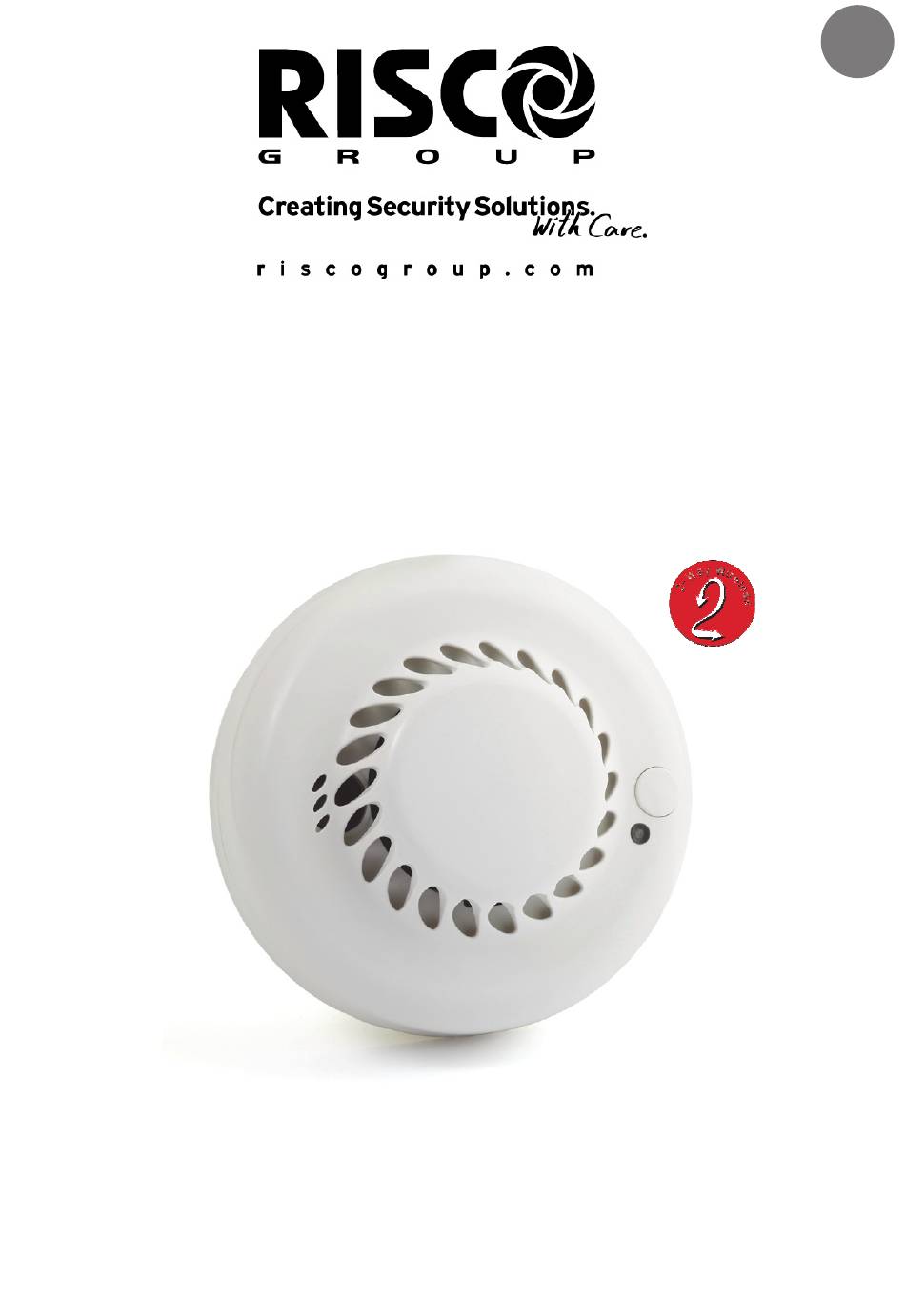

EN
1 & 2-WAY SMOKE
& HEAT DETECTOR
MODEL: RWX34S
INSTALLATION INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RWX35S00400C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Risco RWX35S00400C

  • Page 1 1 & 2-WAY SMOKE & HEAT DETECTOR MODEL: RWX34S INSTALLATION INSTRUCTIONS...
  • Page 2: General Description

    GENERAL DESCRIPTION RISCO Group’s RWX34S Wireless Smoke and Heat Detector combines advanced technologies within a compact and streamlined design, the ideal choice for homeowners seeking the highest safety standards. Smoke is detected employing an advanced photoelectric chamber, while temperature is monitored with two separate heat sensors that measure the rate-of- rise, as well as the absolute temperature.
  • Page 3: Selecting A Location

    SELECTING A LOCATION Smoke and heat detectors should be installed in accordance with the NFPA Standard 74 (National Fire Protection Association, Batterymarch Park, Quincy, MA 02169). For complete coverage in residential units, smoke and heat detectors should be installed in all rooms, halls, storage areas, basements, and attics in each family living unit.
  • Page 4 If ceiling mounting is not possible and wall mounting is permitted by your local and state codes, put wall-mounted detectors between 4 and 6 inches (10 ~ 15 cm) from the ceiling, also see Figure 4. If some of your rooms have sloped, peaked, or gabled ceilings, try to mount detectors 3 feet (0.9 meter) measured horizontally from the highest point of the...
  • Page 5 WHERE NOT TO INSTALL YOUR SMOKE AND HEAT DETECTORS False alarms occur when smoke and heat detectors are installed where they will not work properly. To avoid false alarms, do not install smoke and heat detectors as follows: In the path of fresh air intake. The in-and-out flow of fresh air can drive smoke away from the smoke and heat detector;...
  • Page 6: Installation

    IMPORTANT: Never try to avoid false alarms by disabling the detector. In damp or very humid areas or near bathrooms with showers. Moisture in humid air can enter the sensing chamber, and then turns into droplets upon cooling, which can cause false smoke alarms. In very dusty or dirty areas, dirt and dust can build up on the detector's sensing chamber, to make it overly sensitive.
  • Page 7 DIP Switch Tamper 1-1-Way (Off) / 2-Way (On)* 2-Smoke Off / On* 3-Heat Off / On* *=Default Figure 8: Unit backside: batteries compartment, tamper and DIP switch configure the DIP switch: NOTE: * = DIP Switch default settings. 1. [For one-way operating mode]: Set the DIP switch 1 to 1-way, and configure either smoke (2), heat (3) or smoke and heat.
  • Page 8: Red Indicator

    RED INDICATOR When the red LED indicator (see Figure 9) flashes once in 30 seconds, it indicates the detector is operating normally. When the red LED is illuminated continuously, and simultaneously an audible alarm sounds, this indicates the detector is responding to an alarm trigger.
  • Page 9: Battery Replacement

    CLEANING THE SMOKE AND HEAT DETECTOR Clean the detector housing with a dry or damp cloth to remove dust and dirt. If necessary, open the smoke chamber and clean the interior of the detector. clean the detector: 1. Remove the detector from the detector base. 2.
  • Page 10: Specifications

    Smoke & Heat Detector, 1 & 2 way 868.65 MHz Supervision Time 15 min. for 868.65 MHz / 65 min. for 433.92 MHz In order to continue improving the product, RISCO Group reserves the right to change specifications and/or designs without prior notice. Certifications: EN14604:2005/AC:2008...
  • Page 11: Rtte Compliance Statement

    RTTE Compliance Statement Hereby, RISCO Group declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com . CE CPR Approval...
  • Page 12: Standard Limited Product Warranty

    Risco, for a period of (i) 24 months from the date of connection to the Risco Cloud (for cloud connected products) or (ii) 24 months from production (for other products which are non-cloud connected), as the case may be (each, the “Product Warranty Period”...
  • Page 13 INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF THEY WERE FORESEEABLE OR RISCO HAS BEEN INFORMED OF THEIR POTENTIAL. Risco does not install or integrate the product in the end user security system and is therefore not responsible for and cannot guarantee the performance of the end user security system which uses the product.
  • Page 14: Contacting Risco Group

    Contacting RISCO Group RISCO Group is committed to customer service and product support. You can contact us through our website (www.riscogroup.com) or at the following telephone and fax numbers: United Kingdom France China (Shanghai) Tel: +44-(0)-161-655-5500 Tel: +33-164-73-28-50 Tel: +86-21-52-39-0066 support-uk@riscogroup.com...
