Assembly

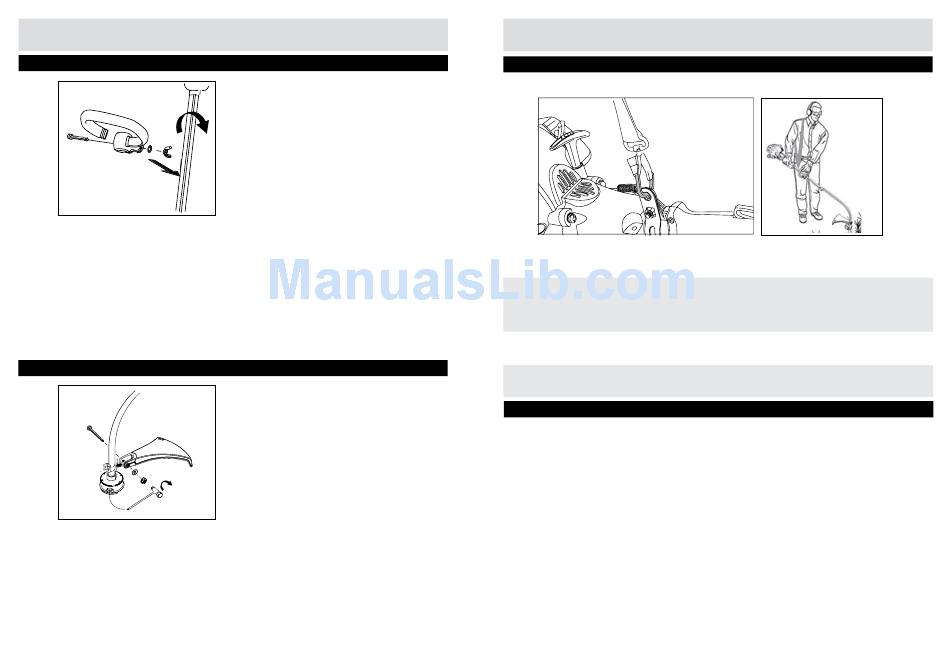

Step 2
1. Take the front handle and push it onto the upper shaft.
2. Align the bolt holes and push the long bolt through the handle side.
3. Place short bolt through opposite side of clamp. Install flat washer, lock washers and hex nuts to
hold the assembly in place.
4. After assembly is complete, adjust the position of the handle for best balance and comfort.
5. Tighten the long bolt first and then the short bolt.
Step 3
Attach the curved shaft grass guard by snapping the guard around the shaft so it locates with the
bracket. Fix in place by inserting the bolts through the guard and bracket and tighten up.
Customer Helpline 0845 450 5299
6
www.gardenservicecentre.co.uk
Assembly
Step 4
Assemble the safety strap.
STOP!
Do not start the engine before reading page 7-9 of the Operation and Maintenance Manual.
