Uniden GMR2035-2 Manual

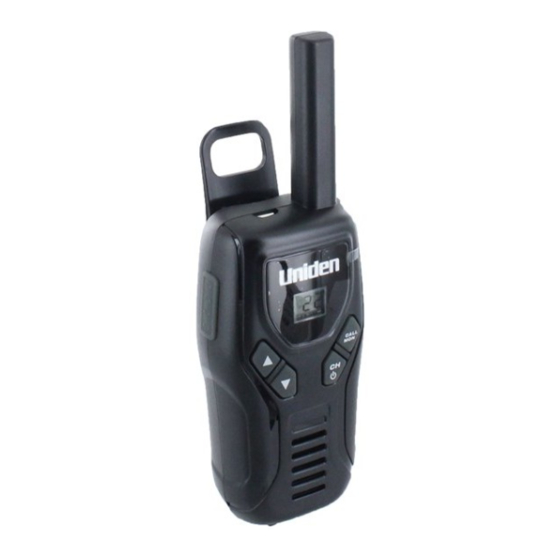

GMR2035-2 Congratulations on your purchase of the
Uniden GMR2035-2 or GMR2050-2C
GMR2050-2C
(General Mobile Radio) radio. This
lightweight, palm-sized radio is a state-of-
the-art device, equipped with many
valuable features. Use it at sporting
• 15 GMRS/7 FRS • Battery Strength
Channels Meter events, to stay in contact with family and
friends, hiking, skiing, outdoors, or in a
• Long Battery Life • Call Button
neighborhood watch for vital
• Up to 20-mile Range* • DC IN 5V
communication.
• Channel Scan • Channel Monitor
Your package contains the 2 radios, 6
* Range may vary depending on environmental
and/or topographical conditions. AAA rechargeable NiMH batteries
(GMR2050-2C) or 6 AAA alkaline
batteries (GMR2035-2), one USB charge
1
cable (GMR2050-2C), this reference
guide, and 2 belt clips. To order the
following optional accessories, visit our
2
web site at www.uniden.com.
• VOX Headset - #ZA-133
Use only Uniden accessories.
10
3
The radio operates on the General Mobile
Radio Service (GMRS) frequencies which
9
4
require a Federal Communications
Commission license to operate. For
5
8
licensing information and application
6
forms, visit the FCC on-line at: www.fcc.
gov/wtb/uls or call the FCC hotline at
7
1-800-418-3676. If you have any
questions you can contact the FCC direct
at 1-888-225-5322.
Each radio uses 3 AAA batteries for
power. GMR2035-2 uses non-
1 Antenna 6 Microphone
rechargeable alkaline batteries and
2 USB Charge Jack 7 Speaker
GMR2050-2C uses rechargeable NiMH
3 Push to Talk 8 Channel/Power batteries. These batteries are supplied
with your radio.
4 Channel/Volume 9 Call/Monitor Key
Up
To install the batteries:
5 Channel/Volume 10 Display
1. Make sure your radio is OFF.
Down
2. Remove the battery compartment
3. Installthe supplied 3 AAA batteries
4. Replace the battery compartment
door by sliding the door into place.
5. Repeat for each radio.
Note: Do not mix rechargeable and
Alkaline batteries
CHARGING THE RADIO
GMR2050-2C only
1. Plug one branch of the microSD
Y-Cable into each radio's microSD
PACKAGE CONTENTS charge port.
2. Insert the other end (USB) into a USB
power source (computer, phone
charger, etc - not included).
Notes:
• Install the batteries before charging.
Charge time may vary depending on the
battery life remaining. For fastest
charging, turn off the radio before
charging. (GMR2050-2C only).
• Do not attempt to recharge alkaline
batteries. Doing so can create a safety
hazard or damage the radio.
FCC GMRS LICENSE • If battery power is low, you cannot
operate the radio even using external
power. If you try to transmit while power
is low, the radio will automatically turn
off. Recharge the batteries.
USING THE RADIO
In order to get the most out of your new
radio, read this reference guide completely
before attempting to operate the radio.
Turning the Radio On and Adjusting the
INSTALL THE BATTERIES
Volume
1. Press and hold the CH/
the radio ON.
2. To change the volume level, press the
▲ or ▼ key to increase or decrease
the volume level.
3. Press and hold the CH/
the radio OFF.
Choosing a Channel
Your radio has 22 channels you can use to
door by pressing on and sliding the
talk to others. In order to speak to
compartment door, and remove the
someone, each of you must be set to the
cover.
same channel.
To choose a channel:
into the battery compartment. Be
certain to follow the + and – symbols
Tap the CH/ key to turn the radio on,
in the compartment. Installing the
then use the ▲ or ▼ key to select a
batteries incorrectly will prevent the
channel.
unit from operating.
Channel Scan Feature
Your radio has a channel scan feature that
allows you to easily scan all 22 channels.
When an active channel is detected, the
unit pauses on that channel until the
channel is clear. Then, after a 2 second
delay, the radio continues scanning.
When the unit stops on an active channel,
you can press the PTT button on the
microphone to transmit on that channel.
To turn ON channel scan
Tap CH/ then hold ▼ for 3 seconds.
The channels will cycle down through all
22 chanels. To reverse scan direction, tap
▲. To stop scanning, press CH/ .
Talking on Your Radio
To talk to others using the radio:
1. Press and hold the PTT button and
speak in a clear, normal voice about
2-3 inches away from the
microphone. (While you are
transmitting, the tx icon displays. To
avoid cutting off the first part of your
transmission, pause slightly after
pressing the PTT button before you
start talking.)
2. When you are finished speaking,
release the PTT button. You can now
receive incoming calls. While
receiving, the rx icon displays.
Transmitting a Call Alert Tone
Your radio is equipped with a call tone that
will be transmitted when the CALL/MON key
key to turn
is pressed.
To transmit the call tone, tap the CALL/MON
key. The tone will be transmitted.
key to turn Auto Squelch Feature
The radio is equipped with an automatic
squelch system which shuts off weak
transmissions and unwanted noise due to
terrain conditions or range limitations.
Monitor Mode Feature
Your radio allows you to listen for weak
signals on the current channel at the press
of a key.
To turn ON monitor mode:
Press and hold the CALL/MON key for 2
seconds. On a channel that does not ____
have activity, you will hear only an open-squelch
hissing noise
To turn OFF monitor mode:
Press the CALL/MON key for 2 seconds again. .
SPECIFICATIONS
Channels 15 GMRS/7 FRS
Operating UHF 462.5500 - 467.7125 MHz
Frequency
Power 3 AAA NiMH Batteries per radio
Source (GMR2050-2C)
3 AAA Alkaline Batteries per
radio (GMR2035-2)
Battery Life 8 Hours typical
Frequency Chart
CH Freq.[MHz] - CH Freq.[MHz] -
Cross Ref. Cross Ref.
1 462.5625 - FRS & 12 467.6625 - FRS 12
GMRS 1
2 462.5875 - FRS & 13 467.6875 - FRS 13
GMRS 2
3 462.6125 - FRS & 14 467.7125 - FRS 14
GMRS 3
4 462.6375 - FRS & 15 462.5500 - GMRS
GMRS 4 11
5 462.6625 - FRS & 16 462.5750 - GMRS
GMRS 5 8
6 462.6875- FRS & 17 462.6000 - GMRS
GMRS 6 12
7 462.7125 - FRS & 18 462.6250 - GMRS
GMRS 7 9
8 467.5625 - FRS 8 19 462.6500 - GMRS
13
9 467.5875 - FRS 9 20 462.6750 - GMRS
10
10 467.6125 - FRS 10 21 462.7000 - GMRS
14
11 467.6375 - FRS 11 22 462.7250 - GMRS
15
