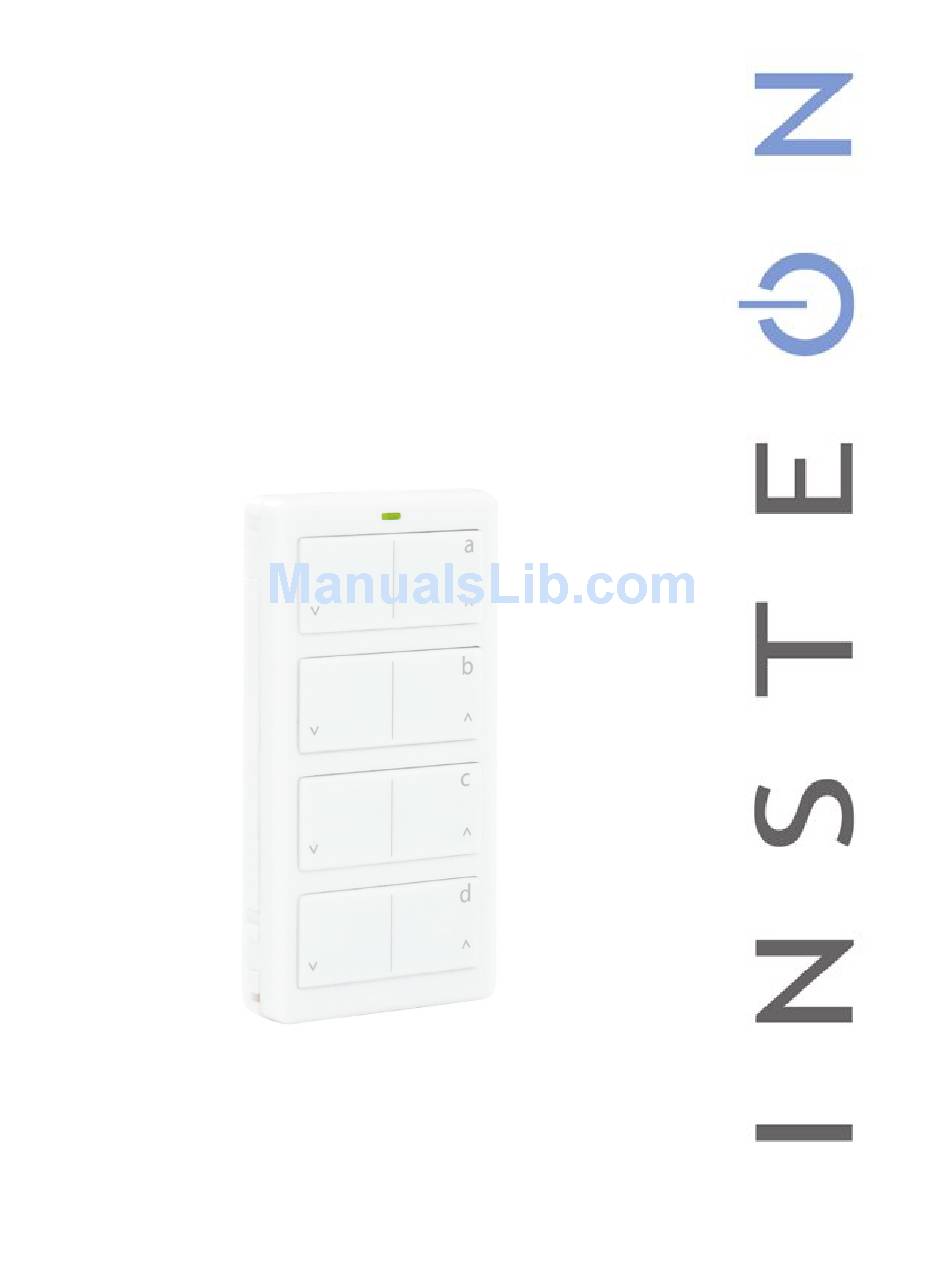

- Page 1 Mini Remote ® INSTEON Remote Control Keypad, 4 Scene #2342-432 (EU) #2342-532 (AUS/NZ) Owner’s Manual Page 1 of 15 2342-x32 Rev: 11/20/2012 4:13 PM...
-
Page 2: Table Of Contents
About Mini Remote ............................. 3 Features and Benefits ..........................4 What’s in the Box? ............................. 4 Required Accessories ..........................4 Optional Accessories ..........................5 Getting Started ............................6 Scenes ................................6 Make Mini Remote (Button) a Controller ....................6 Remove Mini Remote (Button) as a Controller..................6 Using Mini Remote ............................ -
Page 3: About Mini Remote
About Mini Remote INSTEON Mini Remote is the smallest, most versatile INSTEON controller in the world. This wireless 4- button controller can easily be reconfigured to give you toggle control of up to 4 scenes and/or devices. Mini Remote can be:... -
Page 4: Features And Benefits
Features and Benefits • Small, elegant design • Rechargeable battery included • Controls up to 4 scenes (default) or 8 scenes (in toggle/non-toggle mode) • Wall-mountable (requires wall-mount bracket and decorator trim plate, sold separately) • Usable with tabletop stand (sold separately) •... -
Page 5: Optional Accessories
Optional Accessories Wall Mount Bracket (2444B4) • Wall-mount your Mini Remote anywhere • Gang two or more together for more control • Can be installed adjacent to existing wired-in switches • Mini Remote can easily be removed for portability or recharging •... -
Page 6: Getting Started
Remove Mini Remote (Button) as a Controller If you are no longer going to use an INSTEON responder that is a scene responder of Mini Remote, it is very important that you remove its scene membership. Otherwise, Mini Remote will retry every scene command repetitively, thus creating delays and shortening battery life. -
Page 7: Using Mini Remote
LED will begin blinking red 4) Press and hold responder set button until it double-beeps and/or its LED blinks Mini Remote will double-beep and its LED will stop blinking 5) Confirm that scene removal was successful by tapping the Mini Remote button on/off Responder will not respond 6) If you wish to add more responders to Mini Remote, repeat steps 1-5 for each additional scene responder (or see Remove Mini Remote as a Controller of Multiple Responders) -
Page 8: Led Behavior
LED Behavior Mini Remote has a two-color LED (Green and Red) which momentarily indicates whether an on or an off is being sent. LED State Meaning Blink Green (Once) On sent Blink Red (Once) Off sent Blink Red (for a few One or more scene members did not acknowledge (note: scene members seconds) may still have heard the scene command and adjusted their settings) -
Page 9: Change Button Mode: 8 Button Toggle, 8 Button Non-Toggle, 4 Scene
2) Press and hold set button until it beeps LED will begin blinking green 3) Press and hold set button a 2 time for 3 seconds - until you hear a beep LED will begin blinking red 4) Tap set button LED will begin double-blinking red 5) For each responder you wish to remove, press and hold its set button until Mini Remote double- beeps... -
Page 10: Turn Led Off (Or Back On)
Turn LED Off (or Back On) 1) Press and hold set button until it beeps LED will begin blinking green 2) Press and hold set button until it beeps again LED will begin blinking red 3) Press and hold set button until it beeps a third time LED will begin blinking green 4) Press the appropriate button for the desired button/scene configuration Desired LED Mode... -
Page 11: Led Behavior During Setup
Keypad Configuration Setup Mode Factory Reset The factory reset procedure clears all settings from Mini Remote, including INSTEON scenes. 1) If possible, unlink (remove) all scene responders prior to performing factory reset 2) Turn Mini Remote off (slide power switch to left) 3) Press and hold set button 4) While continuing to hold the set button, turn Mini Remote back on (slide power switch to the right). -
Page 12: Specifications
Specifications General Product Name Mini Remote – INSTEON Wireless Keypad Brand INSTEON Manufacturer Product Number EU: 2342-432 AUS/NZ: 2342-532 EU: 813922012583 AUS/NZ: 813922012590 Patent Protected under U.S. and foreign patents (see www.insteon.com) Warranty 2 Year, Limited INSTEON Scenes 4 (default), configurable to 8... -
Page 13: Troubleshooting
Mini Remote won’t add a Mini Remote may be out of range of Try moving Mini Remote closer to responder scene responder nearest INSTEON device Responder ramp rate may be Relink to responder with faster ramp rate Mini Remote will not turn on a... -
Page 14: Certification And Warranty
1) Electromagnetic Compatibility Directive 2004/108/EC 2) Hazardous Substance Directive 2005/95/EC Technical data and copies of the original Declaration of Conformity are available and can be obtained from INSTEON; 16542 Millikan Ave, Irvine, CA, USA. User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) This document contains important information for users with regards to the proper disposal and recycling of INSTEON products. -
Page 15: Limited Warranty
The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or replacement during the warranty period, call the INSTEON Gold Support Line at 800-762-7845 with the Model # and Revision # of the device to receive... - Page 16 Mini Remote ® INSTEON Remote Control Switch 2342-442 EU 2342-542 AUS/NZ Owners Manual Page 1 of 15 : 11/20/2012 4:14 PM...
- Page 17 About Mini Remote ............................. 3 Features and Benefits ..........................4 What’s in the Box? ............................. 4 Required Accessories ..........................4 Optional Accessories ..........................5 Getting Started ............................6 Scenes ................................6 Make Mini Remote a Controller ......................... 6 Remove Mini Remote as a Controller ....................... 6 Using Mini Remote ............................
-
Page 18: About Mini Remote
About Mini Remote Mini Remote is the smallest and most versatile INSTEON Remote Control in the world. The 1 scene Controller can easily be reconfigured to give you toggle control of up to 2 scenes and/or devices. Mini Remote can be:... -
Page 19: Features And Benefits
USB power adapter. • If the INSTEON device you intend to control does not receive RF signals (i.e., power line only), you will need at least one dual-band INSTEON device to convert the RF signals to power line signals. -
Page 20: Optional Accessories
Optional Accessories Wall Mount Bracket (2444B4) • Wall mount your Mini Remote anywhere • Gang two or more together for more control • Can be installed adjacent to existing wired-in switches • Mini Remote can easily be removed for portability or recharging •... -
Page 21: Getting Started
Remove Mini Remote as a Controller If you are no longer going to use an INSTEON responder that is a scene responder of Mini Remote, it is very important that you remove its scene membership. Otherwise, Mini Remote will retry every scene command repetitively, thus creating delays and shortening battery life. -
Page 22: Using Mini Remote
LED will begin blinking green 3) Press and hold Mini Remote set button until it beeps again LED will begin blinking red 4) Press and hold responder set button until it double-beeps and/or its LED blinks Mini Remote will double-beep and its LED will stop blinking 5) Confirm that scene removal was successful by tapping the Mini Remote paddle on/off The responder will not respond 6) If you wish to add more responders to Mini Remote, repeat steps 1-5 for each additional scene... -
Page 23: Led Behavior
LED Behavior Mini Remote has a two-color LED (Green and Red) which momentarily indicates whether an on or an off is being sent. LED State Meaning Blink green (once) On sent Blink red (once) Off sent Blink red (for a few One or more scene members did not acknowledge (note: scene members seconds) may still have heard the scene command and adjusted their settings) -
Page 24: Remove Mini Remote As A Controller Of Multiple Responders
Remove Mini Remote as a Controller of Multiple Responders 1) Tap the Mini Remote paddle (top or bottom) – if in 2 scene mode, tap the top of the paddle for scene 1 or the bottom for scene 2 2) Press and hold set button for 3 seconds - until you hear a beep LED will begin blinking green 3) Press and hold set button a 2 time for 3 seconds - until you hear a beep... -
Page 25: Turn Led Off (Or Back On)
Red every tap 1 scene Green every tap 2 scene Non-Toggle (Always On) Green / red alternating 2 scene Toggle Turn LED Off (or Back On) 1) Press and hold set button for 3 seconds - until you hear a beep LED will begin blinking green 2) Press and hold set button a 2 time for 3 seconds - until you hear a beep... -
Page 26: Beeper Behavior
Multi-Remove Responder Setup Mode Factory Reset The factory reset procedure clears all settings from Mini Remote including INSTEON scenes. 1) If possible, unlink (remove) all scene responders prior to performing factory reset 2) Turn Mini Remote off (slide power switch to left) 3) Press and hold set button 4) While continuing to hold the set button, turn Mini Remote back on (slide power switch to the right). -
Page 27: Specifications
Mini Remote will double-beep and its LED will turn off Specifications General Product Name Mini Remote – INSTEON Wireless Switch Brand INSTEON Manufacturer Product Number EU: 2342-442 AUS/NZ: 2342-542 EU: 813922012606 AUS/NZ: 813922012972 Patent Protected under U.S. and foreign patents (see www.insteon.com) -
Page 28: Troubleshooting
Mini Remote won’t add a Mini Remote may be out of range of Try moving Mini Remote closer to responder scene responder nearest INSTEON device Responder ramp rate may be Mini Remote will not turn on Relink to responder with faster ramp rate... - Page 29 If you have tried these solutions, reviewed this Owner’s Manual, and still cannot resolve an issue, visit www.insteon.com/support for online support and updated product documents or call INSTEON Support Line at 866-243-8022 Page 14 of 15 : 11/20/2012 4:14 PM...
-
Page 30: Certification And Warranty
The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or replacement during the warranty period, call the INSTEON Gold Support Line at 800-762-7845 with the Model # and Revision # of the device to receive...
