Summary of Contents for INSTEON RemoteLinc

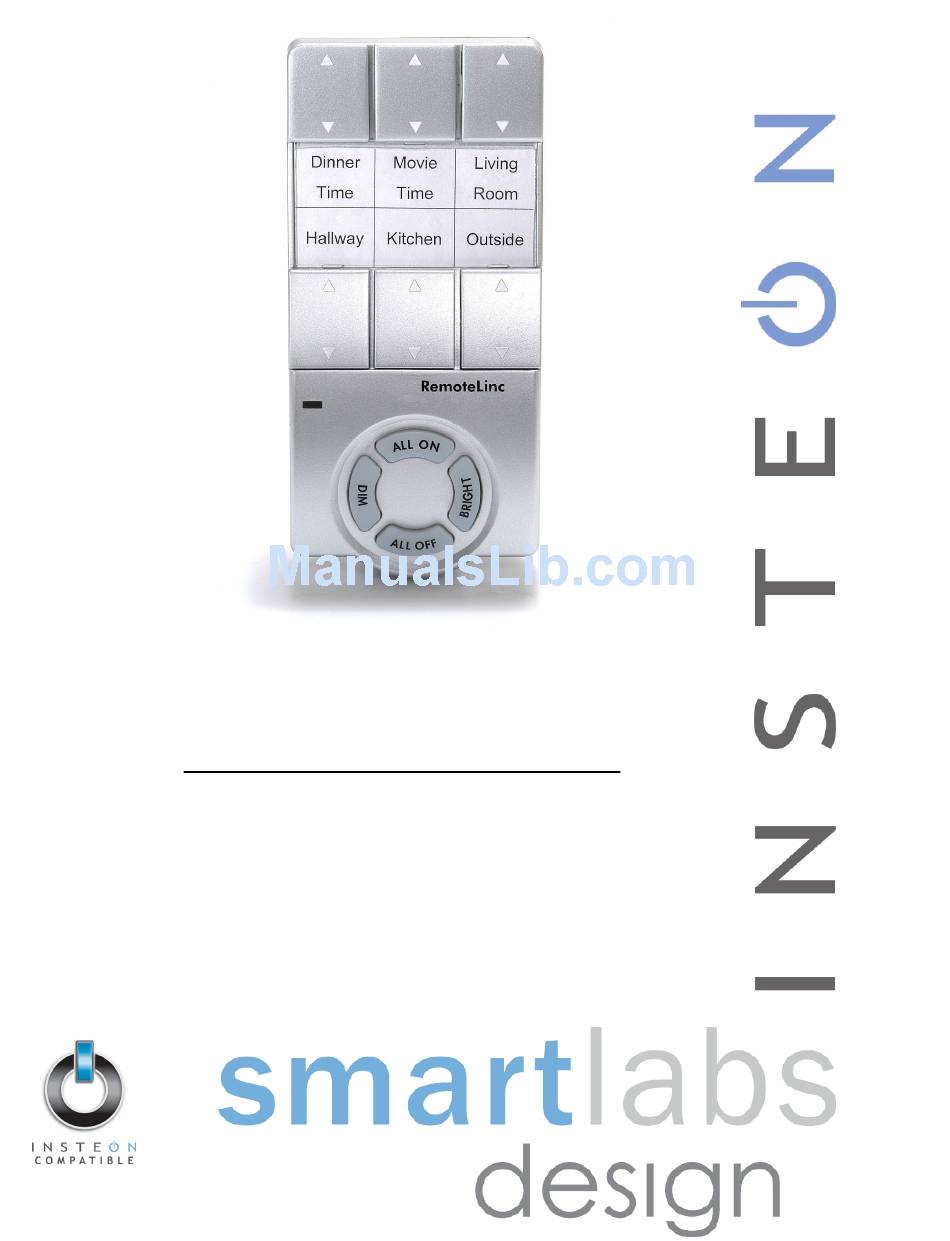

- Page 1 INSTEON ™ RemoteLinc INSTEON-compatible Wireless Handheld Controller For models: #2440 RemoteLinc Handheld Controller...
-
Page 2: Table Of Contents
Using the BRIGHT and DIM Buttons....................... 12 ABOUT INSTEON ............................13 Understanding Why an INSTEON Network Is Reliable................13 Further Enhancing Reliability ........................13 Using SmartLab’s AccessPoint to Upgrade Your INSTEON Network ............ 13 TROUBLESHOOTING..........................14 SPECIFICATIONS ............................16 RemoteLinc Specifications ........................16 FCC Compliance Statement........................ -
Page 3: About Remotelinc
INSTEON is a simple, reliable, and affordable breakthrough in home control. Simple, because Plug-n- Tap™ setup is a breeze, and there are no wires to add – INSTEON uses existing powerline wiring as well as radio-frequency for communication. And reliable, because every INSTEON device is a two-way repeater. -
Page 4: How To Install Remotelinc
RemoteLinc. RemoteLinc Installation • Remove battery compartment door from rear of RemoteLinc. Observe polarity markings, and install four AAA batteies accordingly. Replace battery compartment door. • Use alkaline batteries, or high quality rechargeable batteries. A fully charged set of alkaline batteries will provide approximately 1500-2000 functional button presses under normal circumstances. -
Page 5: How To Set Up Remotelinc
10 seconds until the Status LED begins blinking. 3. Select your INSTEON Device from the list below and follow the linking method for that Device. You have about 4 minutes to perform this step before RemoteLinc’s Linking Mode times out automatically. -
Page 6: Unlinking One Insteon Device From Remotelinc
Unlinking One INSTEON Device from RemoteLinc If you are no longer going to use an INSTEON Device that has previously been linked to RemoteLinc, it is very important that you unlink it, otherwise the INSTEON network will retry any commands intended for the unused INSTEON Device, thus slowing down your system. -
Page 7: Advanced Features Of Remotelinc
Resetting One ON/OFF Button to Its Factory Default Settings If you want to remove all INSTEON links from a single ON/OFF Button Pair, or if you cannot unlink a previously-linked INSTEON Device that has been lost or broken, follow this procedure. -
Page 8: Turning The Audio Beeper On And Off
Status LED will begin blinking slowly. 2. Release the DIM and BRIGHT Buttons. 3. Press and release the ALL OFF Button. RemoteLinc will beep twice and its Status LED will now be disabled. 4. Repeat steps 1 through 3 to re-enable the Status LED. -
Page 9: Setup Summary
INSTEON-compatible RemoteLinc User’s Guide SETUP SUMMARY The following table summarizes the setup options for RemoteLinc as described in the previous sections. Linking Enter Linking Mode Desired ON Button Hold 10 Seconds Hold 10 Seconds Release Enter Unlinking Mode Desired On Button... -
Page 10: How To Use Remotelinc
So, if you just want to turn things on or off, tap the appropriate button – don’t hold it down. • To turn ON only those INSTEON Devices linked to an ON/OFF Button, tap the ON side of the Button. RemoteLinc will beep and its Status LED will blink off twice. Dimmable modules will go to whatever On-Level they were set up for, at whatever Fade Rate they were set up for. -
Page 11: Using The All On And All Off Buttons
INSTEON-compatible RemoteLinc User’s Guide Using the ALL ON and ALL OFF Buttons The ALL ON and ALL OFF Buttons will turn on, turn off, brighten or dim all INSTEON Devices linked to RemoteLinc, no matter which ON/OFF Button Pair they are linked to. -
Page 12: Using The Bright And Dim Buttons
To continuously brighten only those INSTEON Devices linked to the last ON/OFF Button you used, press and hold the BRIGHT Button. RemoteLinc will beep and its Status LED will blink off once. Dimmable modules will begin to brighten, unless they are already fully bright. Switchable modules will not be affected. -
Page 13: About Insteon
INSTEON device helps to support the overall network. To further ensure reliability, every INSTEON device confirms that it has received a command. If an INSTEON Controller does not receive this confirmation, it will automatically retransmit the command up to five times. -
Page 14: Troubleshooting
RemoteLinc by following the directions in the section Unlinking One INSTEON Device from RemoteLinc. My RemoteLinc’s Status If the INSTEON Device is not available or you are LED keeps blinking unsure which INSTEON Device RemoteLinc is looking whenever I press a... - Page 15 All of my INSTEON The ALL ON and ALL OFF Devices do not respond Buttons only control Link INSTEON Devices you want to respond to ALL ON to RemoteLinc’s ALL ON INSTEON devices already and ALL OFF to RemoteLinc. or ALL OFF Buttons.
-
Page 16: Specifications
Warranty 2 years Operation ON/OFF Button Pairs 6 Channels ALL ON/ALL OFF Buttons Control all INSTEON devices linked to Channels 1-6 BRIGHT/DIM Buttons Control INSTEON devices linked to last pressed Channel Audio Alert Beeper, can be disabled Status LED White, can be disabled... -
Page 17: Fcc Compliance Statement
INSTEON-compatible RemoteLinc User’s Guide FCC Compliance Statement This device complies with FCC Rules Part 15. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may be received or that may cause undesired operation. -
Page 18: Limited Warranty
INSTEON-compatible RemoteLinc User’s Guide Limited Warranty Seller warrants to the original consumer purchaser of this product that, for a period of two years from the date of purchase, this product will be free from defects in material and workmanship and will perform in substantial conformity to the description of the product in this User’s Guide.
