SMART-AVI AVRouter AV08X08 Quick Start User Manual

Avrouter 8x8 routes up to 8 xvga and stereo audio sources to 8 remote location at distances up to 100 feet away
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Quick Start

User Manual

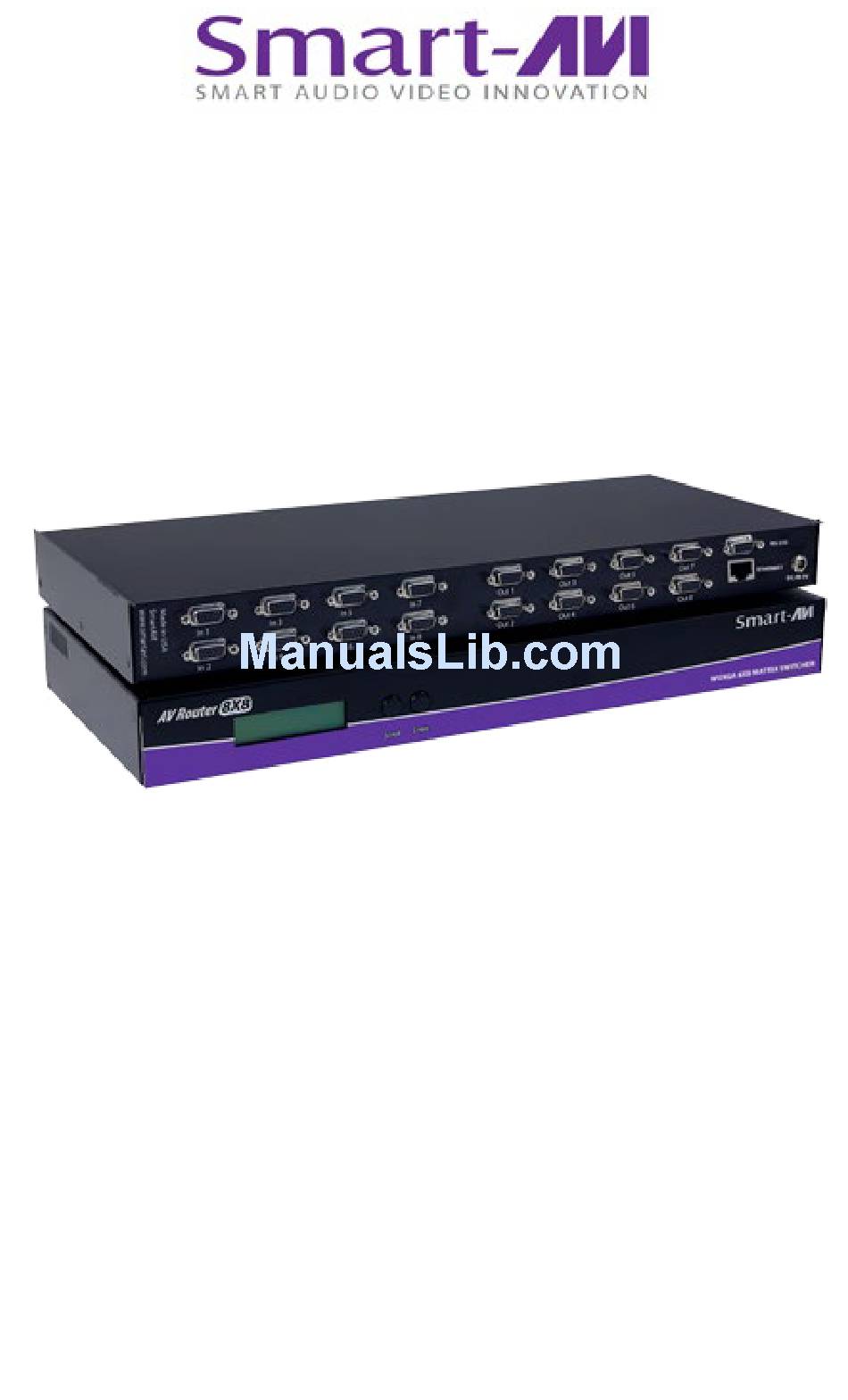

AVRouter 8 X 8
Routes up to 8 XVGA and Stereo Audio Sources to 8
Remote Location at Distances up to 100 feet Away
SmartAVI's AVRouter 8x8 gives you the power to pull content from up to 8
separate computers and display it on up to 8 monitors individually or at the
same time. As you will soon find, this dynamic hardware/software solution
makes even the most "complicated" content delivery challenge a snap.
Whether you've purchased the AVRouter8x8 for a retail, recording studio
or even mass-transit location, we encourage you to broaden your vision –
explore your creativity and use this dynamic piece of hardware to your fullest
advantage.
This matrix switch is a powerful tool that you will now use to convey your own
message to clients, guests and/or employees the way you need it and want it
to be displayed.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVRouter AV08X08 and is the answer not in the manual?

Questions and answers

Related Manuals for SMART-AVI AVRouter AV08X08

Summary of Contents for SMART-AVI AVRouter AV08X08

  • Page 1: Quick Start

    Quick Start User Manual AVRouter 8 X 8 Routes up to 8 XVGA and Stereo Audio Sources to 8 Remote Location at Distances up to 100 feet Away SmartAVI’s AVRouter 8x8 gives you the power to pull content from up to 8 separate computers and display it on up to 8 monitors individually or at the same time.

  • Page 2: Getting Started

    Getting Started Hardware Installation Connect a serial cable from the AVRouter 8x8 to the control computer. If you have installed the CD-ROM on a laptop, you can use a serial-to-USB adapter to make this connection. Connect up to 8 computers containing your video content to the “video in” ports of the AVRouter 8x8, using VGA male to male extension cables.

  • Page 3: Installation Diagram

    Installation Diagram What’s in the Box PART NO. QTY. DESCRIPTION AV08X08 UXGA 8X8 Matrix Switch PS5VD4A-WLLMT Power Supply 5V DC 4A Wall mount CCRS232MF06 RS232 cable 6ft Male/Female SM-CSW Smart control application software provid- ing source/destination selection, name editing, and messaging. Included in all SNX and SNV investments.
  • Page 4 Software Installation & Operation Inputs/Outputs: Enter the number of Inputs/Outputs your AVRouter has. For now we will assume that there are 16 inputs and 16 outputs. Com Port: Select the appropriate com port that your computer is using to access the router.
  • Page 5 Software Installation & Operation Cont. The Main Routing Window enables you to control the router(s) connections by means of the matrix panel, the button panel, or with pre-recorded routes called macros. Matrix Panel: This is probably the simplest way to route the connections. Simply click on the cross point itself.
  • Page 6 Software Installation & Operation Cont. Macros: This section of the window is used to save and play back macros. Macros store a set sequence of routes. To record a macro: Click on the Record button (last button shown above). A blinking “recording” message below this button will be displayed to indicate that all routes are being recorded.
  • Page 7 Features • Enriched content palette with the capability of being able to pull video, images, etc. from up to 8 separate CPU’s to display on 1 to 8 monitors individually or at the same time. • 8x8 non-blocking, single-link VGA/AUDIO matrix switch that supports HDTV resolutions up to 1920 x 1200.

  • Page 8: Technical Specifications

    Technical Specifications VIDEO Connector HD-15 socket Format VGA, SVGA, XGA, RGBHV, RGsB, CVBS, YC, YUV, RGBS Syncs TTL5VDC In/Out HD-15 female AUDIO Signal 15kHz 0db unbalanced 100 Ohms impedance RCA or 3.5mm stereo jack Connector In/Out 3.5mm stereo jack OTHER Voltage 90 –...
