SMART-AVI DVI Router 4x4 User Manual

Technical Specifications

Video
Video Amplifier 165 MHz
Bandwidth
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Single Link Range 1080p/1920 x 1200
DVI Connector DVI-I 29 pin female
Control
Serial Controls RS232, DB9 female connector
Power
Power Supply 5VDC-3A
Physical
Dimensions 12"W x 1.75"H x 7"D
Weight 4.05 lbs.

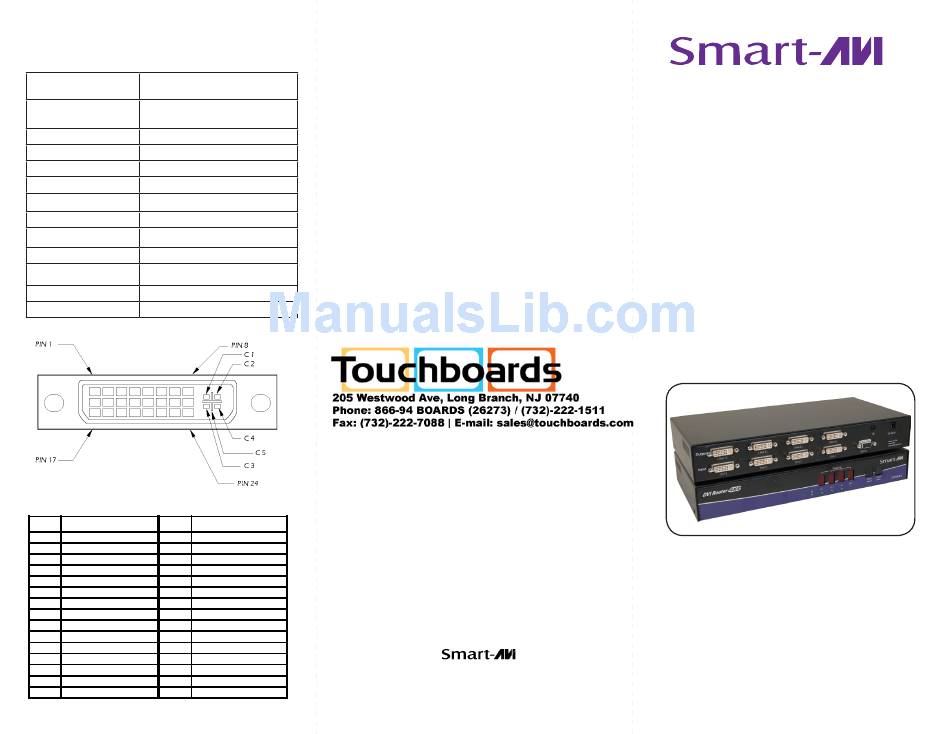

Pin # Signal Pin #
1 T.M.D.S Data 2- 16 Hot Plug Detect
2 T.M.D.S Data 2+ 17 T.M.D.S Data 0-
3 T.M.D.S Data 2/4 Shield 18 T.M.D.S Data 0+
4 T.M.D.S Data 4- 19 T.M.D.S Data 0/5 Shield
5 T.M.D.S Data 4+ 20 T.M.D.S Data 5-
6 DDC Clock 21 T.M.D.S Data 5+
7 DDC Data 22 T.M.D.S Clock Shield
8 Analog Vert. Sync 23 T.M.D.S Clock+
9 T.M.D.S Data 1- 24 T.M.D.S Clock -
10 T.M.D.S Data 1+
11 T.M.D.S Data 1/3 Shield C1 Analog Red
12 T.M.D.S Data 3- C2 Analog Green
13 T.M.D.S Data 3+ C3 Analog Blue
14 +5V Power C4 Analog Horz Sync
15 GND C5 Analog Ground
