Specifications

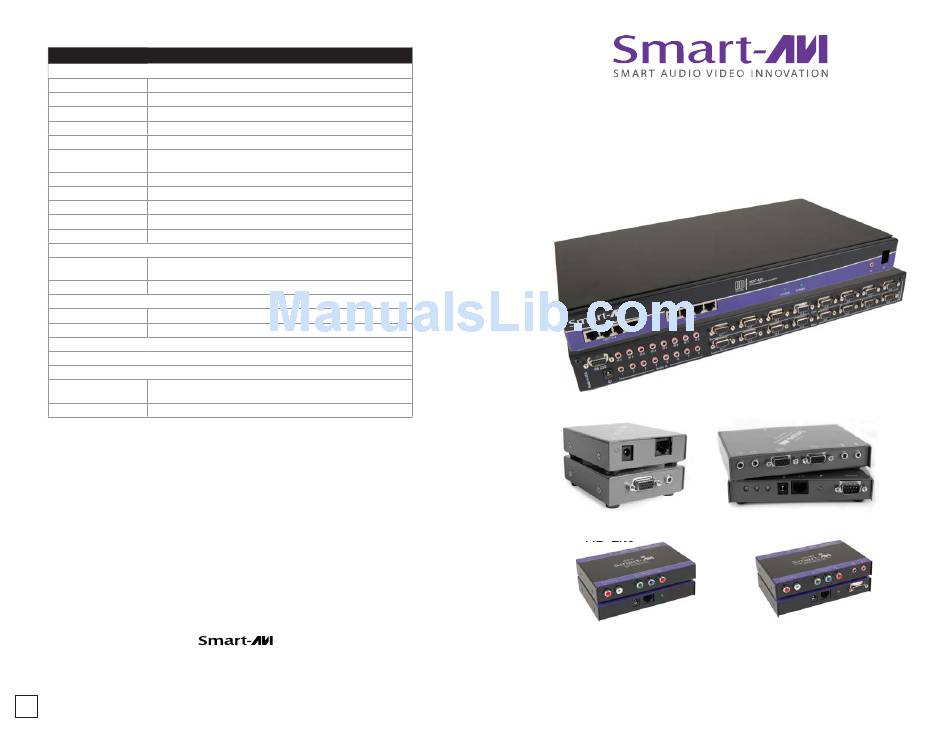

HDTV Router SPECIFICATIONS
Video
Bandwidth
400 MHz
Input Signal Level
1 Volt pk-pk into 75R
Output Impedance
100 Ohms
Input Impedance
75 Ohms
Connector
8 x HD15 socket female
Format
VGA/SVGA/XGA/RGBHV/RGsB/
CVBS/YC/YUV/RGBS
Syncs
TTL5VDC
Bandwidth
Horizontal Sync up to 85KHz
RS-232
8 x RS232 DB9 Female, TX, RX, GND
Infrared
8 x IR 3.5mm Jack to IR emitter
Back Panel
8 x RJ45 with video, audio and data modulated within single UTP
Audio
Signal
15KHz 0dB unbalanced 100 Ohms
impedance
Connector
RCA or 3.5 Stereo Jack x 8
Control
IR
3.5mm connector with 38khz x 8
DB9
female RS232 or RS422 @ 9600bps - DB9 Female
Power Supply
5V DC-3A
Dimensions
Height X Width X Depth
2.73" (69.34mm) x 19"(482.6mm) x 17.72"(450mm)
Weight
9 lbs.
XTPro- Receiver with dual monitors, Audio and IR/RS232 Support.
XT-AV- Receiver with Video and Audio Support.
HD-Lite- Use a Single CAT5 Cable to Broadcast High Resolution HDTV,
Stereo Audio, up to 1,000 Feet Away
HD-XT- Use a Single CAT5 Cable to Broadcast High Resolution HDTV,
Stereo Audio, RS-232 and IR up to 1,000 Feet Away
2840 N. Naomi Ave.
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020
7
Please visit smartavi.com for a expanded version of this manual.
Quick Start
User Manual
r
HDTV ROUTER
XT-AV
HD-Lite
Multi-format non-blocking audio, video, RS-232 and infrared
distribution matrix. Controlled via software, remote control or
over the Internet.
XTPRO
HD-XT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMART-AVI HDC-MXS
Summary of Contents for SMART-AVI HDC-MXS
-
Page 1: Specifications
Specifications HDTV Router SPECIFICATIONS Video Bandwidth 400 MHz Quick Start Input Signal Level 1 Volt pk-pk into 75R Output Impedance 100 Ohms User Manual Input Impedance 75 Ohms Connector 8 x HD15 socket female Format VGA/SVGA/XGA/RGBHV/RGsB/ CVBS/YC/YUV/RGBS HDTV ROUTER Syncs TTL5VDC Bandwidth Horizontal Sync up to 85KHz... - Page 2 Connecting the HDTV Router Software Installation & Operation Note: Inputs can be routed to several different outputs, but each output can only Warning: As a precaution, we recommend that you disconnect all power cords have a single input at any one time. So you can have several connections horizon- and make sure that all devices are turned off.
- Page 3 Software Installation & Operation Installation Diagram’s Preparing & Connecting System CAT5 Cable Inputs/Outputs: Enter the number of Inputs/Outputs your SuperMatrix has. For Following is the wiring standard for terminating CAT 5 cable now we will assume that there are 16 inputs and 16 outputs. using RJ-45 connector: Pair 1 Pins 1 &...
- Page 4 Connecting the Receiver XTAV Transmitter Installation Diagram XTAV Receiver Installation Diagram Connecting The Transmitter 1. Connect the output of the computer videocard to the video input of the transmitter using the included male-to-male video cable. Connecting The Receiver 2. Connecttheout-put of the computer audio cardto the audio input of 1.
