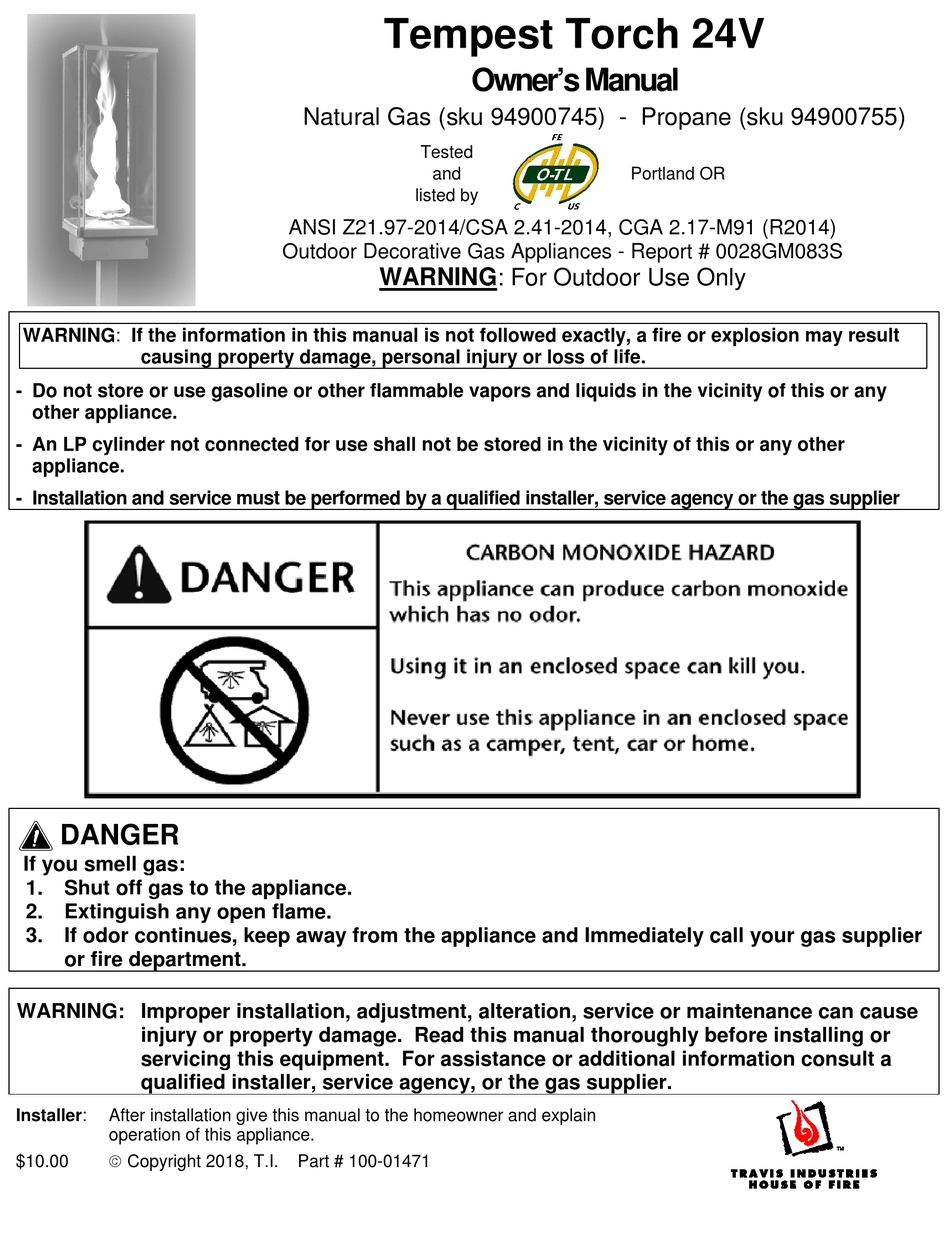

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and Immediately call your gas supplier
or fire department.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Read this manual thoroughly before installing or
servicing this equipment. For assistance or additional information consult a
qualified installer, service agency, or the gas supplier.
Installer:
After installation give this manual to the homeowner and explain
operation of this appliance.
Copyright 2018, T.I.
$10.00

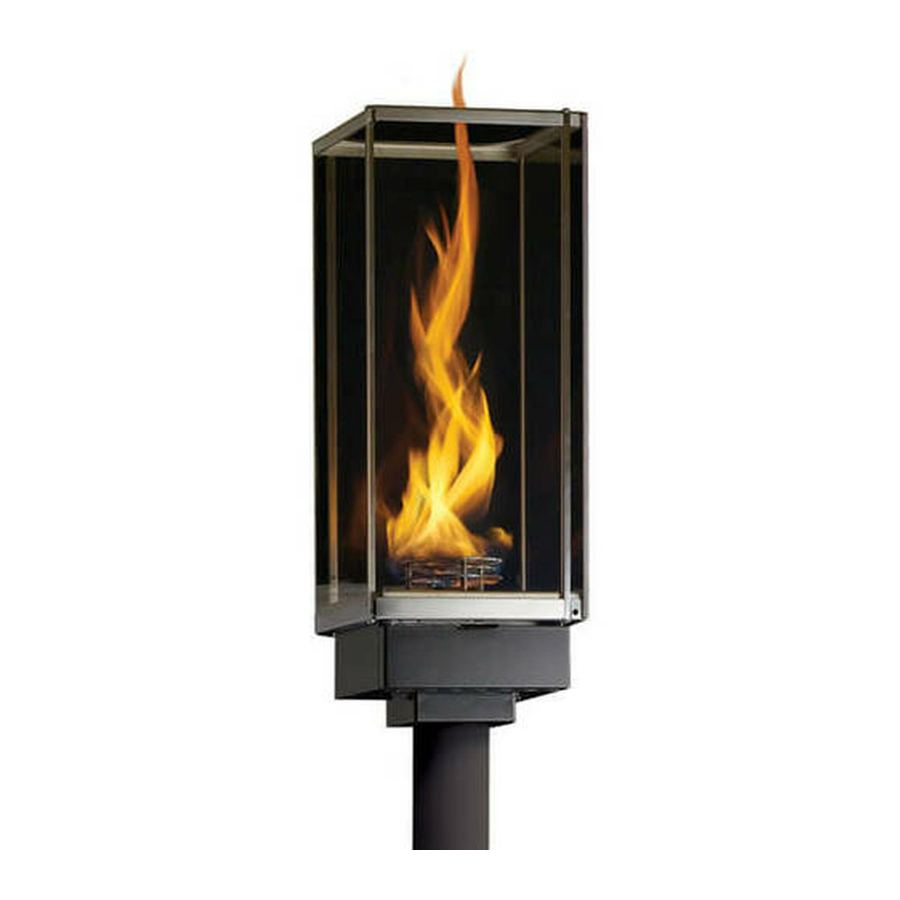

Tempest Torch 24V
Natural Gas (sku 94900745) - Propane (sku 94900755)
Tested
and
listed by
ANSI Z21.97-2014/CSA 2.41-2014, CGA 2.17-M91 (R2014)
Outdoor Decorative Gas Appliances - Report # 0028GM083S
WARNING: For Outdoor Use Only
Part # 100-01471
Owner's Manual
Portland OR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Travis Industries Tempest Torch 24V
Summary of Contents for Travis Industries Tempest Torch 24V
- Page 1 Tempest Torch 24V Owner’s Manual Natural Gas (sku 94900745) - Propane (sku 94900755) Tested Portland OR listed by ANSI Z21.97-2014/CSA 2.41-2014, CGA 2.17-M91 (R2014) Outdoor Decorative Gas Appliances - Report # 0028GM083S WARNING: For Outdoor Use Only WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Overview
To receive full warranty coverage, you will need to show evidence of the date of purchase. Mail your warranty card or visit traviswarranty.com to register your Tempest torch. If any service issues may arise, contact your dealer for details. © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 3: Table Of Contents
Electrical Connection Requirements ....10 Wiring Diagram ........... 10 Wiring Multiple Torches to One Switch ....11 Post Mount and Control Cover Installation ..15 Torch Assembly ..........16 Optional Rain Cap ..........17 © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 4: Safety Precautions
Always follow the instructions in this manual. • Travis Industries, Inc. grants no warranty, implied or stated, for the installation or maintenance of your torch, and assumes no responsibility of any consequential damage(s). -
Page 5: Features
Max. Inlet Pressure 7" wc 11" wc Electrical Specifications: 24 Volts AC, 1.6 amps (on startup), 40 watts (on startup) Dimensions: NOTE: All Clearances are measured from the glass (and glass frame). © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 6: Installation Warnings
This Torch Requires One of the Following Base Assemblies: Wall Mount Kit Post Mounting Kit Pillar Mounting Kit This Torch Requires a 24Volt AC transformer. Travis Industries 24V AC Transformer (94800829) © Travis Industries, Inc. 3/26/18 - 1471 Tempest 24v... -
Page 7: Recommended Order Of Installation
Leak test the gas lines. Verify the torch works correctly and there are no gas leaks. Attach the control covers. 8. Give the manual to the home owner and explain the operation of the torch. © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 8: Placement Requirements
Lesser clearances shall be permitted to be used only where acceptable to the authority having jurisdiction. • Keep combustibles away from the shaded heat zone of the torch (see illustration below). © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 9: Gas Line Requirements
Gas Line Connection A manual shutoff valve is required on the gas supply to the torch. It should be placed upstream of the control module. A shut-off valve is included with the torch. © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 10: Electrical Connection Requirements
Do not reverse the wires. If the wires are reversed, the torch will not work correctly. © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 11: Wiring Multiple Torches To One Switch
The torches can be “Daisy Chained” together or each torch can be a “Home Run” back to the transformer. Example A Example B Polarity must be maintained in all multiple torch installations. Failure to maintain polarity will result in damage to the control module. © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... - Page 12 If using a multi-tap transformer (24v, 27v, etc.) maximum wire length may be greater. Consult an electrician for details. The example below uses a “Home Run” configuration. Because each wire serves only one torch, the maximum wire length can be run. © Travis Industries, Inc. 3/26/18 - 1471 Tempest 24v...
- Page 13 The example below uses a “Daisy Chained” configuration. Because each wire serves 4 torches, total wire length (35’ + 25’+ 25’+ 25’ = 110’) is limited to 110’ (see chart above). . © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v...
- Page 14 When wiring multiple torches together using a single 24VAC transformer, it is important that the polarity between the torches are connected in parallel (all white wires connected together and all white/blue stripe wires connected together). Polarity between the torches and the transformer does not matter. © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v...
-
Page 15: Post Mount And Control Cover Installation
¼-20 screws. (d) Attach the control cover to the torch with the two thumb screws. ! The safety label slides into place between the control cover and the torch body. © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 16: Torch Assembly
! Tighten the bolt only enough to hold the glass in place – over- tightening may break the glass. Repeat steps “d” and “e” for the other three pieces of glass. © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 17: Optional Rain Cap
WARNING: Do not use the torch cover (sku 94800867) with electronic ignition torch. The cover will combust if in place while the torch is turned on, creating a severe safety hazard. © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 18: Before You Begin
Inspect the torch, burner, and supply lines for any damage prior to operation. The burner must be replaced prior to the appliance being put into operation if it is evident that the burner is damaged. Use only Travis Industries replacement burners. It may be difficult to see the burner operating in direct sunlight. -
Page 19: Maintenance
This will insure the torch is not accidentally turned on or started with debris or snow inside the torch. WARNING: Do not cover the torch. A cover could combust if it is in place when the torch is turned on, creating a severe safety hazard. © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 20: Replacement Parts
VERTICLE ROD w/SCRWS, TEMPEST 250-01251 GLASS – TEMPEST 250-04611 STOVE PACK, TEMPEST ELCTRC IGN 250-01789 BALL VALVE, (SHUT-OFF) TEMPEST 250-04612 MANUAL Replacement parts can be obtained from your Tempest Torch retailer (see www.tempesttorch.com). © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 21: Troubleshooting Table
Glass is moving inside the glass frame and the THIS IS NORMAL Torch makes Clicking stainless steel parts are expanding and Sounds contracting with heat © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v... -
Page 22: Warranty
TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your TRAVIS appliance if it is found to be defective in material or workmanship within the time frame stated within this 1 year warranty. TRAVIS INDUSTRIES, INC. will return your appliance, freight charges prepaid by TRAVIS INDUSTRIES, INC., to your regional distributor, or dealership. - Page 23 Warranty © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v...
-
Page 24: Index
Specifications ..............5 Torch Assembly ..............15 Troubleshooting Table ............20 Warranty ................21 Winterizing the Torch............18 Wiring Diagram ..............10 Wiring Multiple Torches to One Switch ......11 Index © Travis Industries, Inc. 3/20/18 - 1471 Tempest 24v...
