WARNING: For Outdoor Use Only. Installation and service must be performed by a
qualified installer, service agency, or the gas supplier.
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury, or loss of life.
WARNING: Do not store or use gasoline, or other flammable vapors and liquids, in the
vicinity of this or any other appliance.
An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
DANGER: FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which could cause
property damage, personal injury, or death.
INSTALLER: Leave this manual
with the appliance.
CONSUMER: Retain this
manual for future reference.
Copyright 2020, T.I.
$10.00
Tempest Torch 24V
Natural Gas (sku 94900745) - Propane (sku 94900755)
ANSI Z21.97-2017 / CSA 2.41-2017, CSA 2.17-2017
Outdoor Decorative Gas Appliances
Hot glass will
cause burns.
Do not touch
glass until
cooled.
Never allow
children to
touch glass.
Owner's Manual
Listed by
Omni-Test Laboratories, Inc.
Report # 0028GM083S
CARBON MONOXIDE
HAZARD
This appliance can produce
carbon monoxide which has
no odor.
Using it in an enclosed
space can kill you.
Never use this appliance in
an enclosed space such as a
camper, tent, car, or home.
French language manuals at
tempesttorch.com
Manuels de langue Française à
tempesttorch.com
Part # 100-01471
Advertisement
Table of Contents
Related Manuals for Travis Industries 94900745
Summary of Contents for Travis Industries 94900745

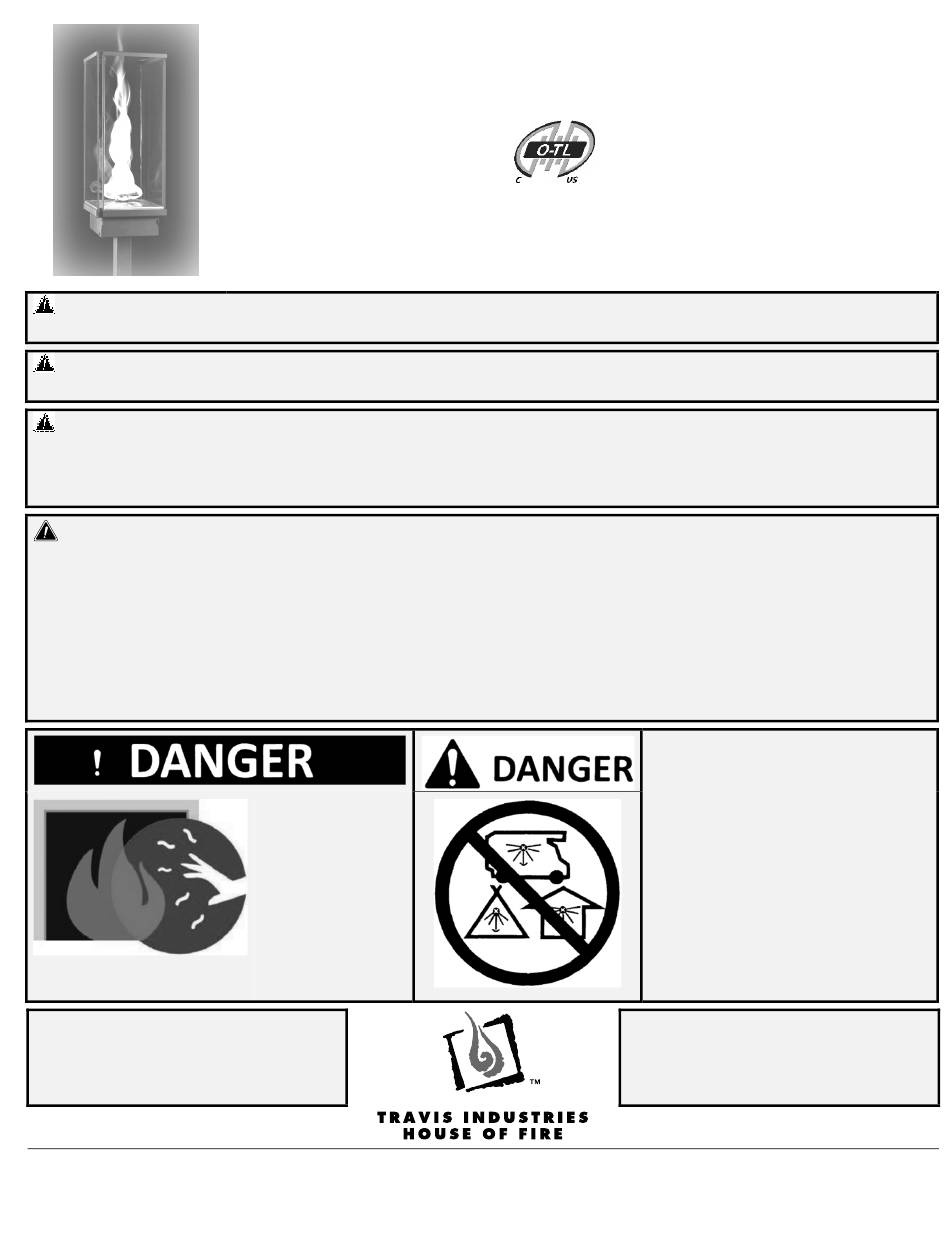

- Page 1 Tempest Torch 24V Owner’s Manual Natural Gas (sku 94900745) - Propane (sku 94900755) Listed by Omni-Test Laboratories, Inc. ANSI Z21.97-2017 / CSA 2.41-2017, CSA 2.17-2017 Outdoor Decorative Gas Appliances Report # 0028GM083S WARNING: For Outdoor Use Only. Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
-
Page 2: Overview
Mail your warranty card or visit traviswarranty.com to register your Tempest torch. If any service issues arise, contact your dealer for details. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 3: Table Of Contents
Maintaining Your Torch ......26 24v Single Appliance Transformer (sku Winterizing the Torch......26 94800833) .......... 12 Replacement Parts ......... 27 Multiple Appliance Installations ....14 Troubleshooting Table ......28 © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 4: Safety Precautions
Always follow the instructions in this manual. • Travis Industries, Inc. grants no warranty, implied or stated, for the installation or maintenance of your torch, and assumes no responsibility for any consequential damage(s). -
Page 5: Features
8-7/8" 225mm 9-1/2" 241mm 225mm 241mm 3" 76mm 19-1/2" 495mm Base Cover 2-1/2" 64mm Mounting Bracket Control Assembly with Valve NOTE: All Clearances are measured from the glass (and glass frame). © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 6: Installation Warnings
Wall Mount Kit Post Mounting Kit Pillar Mounting Kit This Torch Requires a 24Volt AC transformer. Travis Industries provides the following transformer options: Travis Industries 24V AC Single Appliance Transformer (94800833). Travis Industries 24V AC Multiple Appliance Transformer (94800830). -
Page 7: Recommended Order Of Installation
Leak test the gas lines. Verify the torch works correctly and there are no gas leaks. Attach the control covers. 8. Give the manual to the homeowner and explain the operation of the torch. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 8: Placement Requirements
Lesser clearances shall be permitted to be used only where acceptable to the authority having jurisdiction. Keep combustibles away from the shaded heat zone of the torch (see illustration below). © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 9: Gas Line Requirements
49 Holes Manifold Pressure 7" wc 11" wc Max. Inlet Pressure 7" wc 11" wc Gas Line Connection A manual shutoff valve is required on the gas supply to the torch. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 10: Electrical Connection Requirements
This torch must be used with a 24VAC switched circuit. The transformer is sold separately. Travis Industries offers the following two transformers: -- 94800833 Powers 1 Torches (120v input only). See the instruction sheet included with the transformer for details. -
Page 11: Torch Wiring Diagram
The thermopile must connect to the control module as shown above (orange/white wire connects to the white thermopile wire and orange wire connects to the red thermopile wire). Do not reverse the wires. If the wires are reversed, the torch will not work correctly. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 12: Single Appliance Installations
This transformer is intended to be plugged into a standard household GFCI-protected outlet. The transformer is wet-rated and can be exposed outdoors. If this transformer will be used on an outdoor outlet, the outlet must have a weatherproof receptacle cover. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 13: Wiring Diagrams
The transformer is plugged into a GFCI-protected, non-switched outlet. One low-voltage conductor is interrupted by a switch. The low-voltage conductors are then attached to the yellow and white wires from the control module. Polarity does not matter for any of these connections. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 14: Multiple Appliance Installations
This transformer is rated at 300 VA. The transformer will power up to (6) appliances. See the section “Wire Length, Wire Gauge, and Voltage Settings” for additional details. Wiring Diagram 120V Dimensions © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 15: Wire Configuration - Direct-Run Vs Daisy-Chain Installations
The manner in which you wire the torches to the transformer affects the maximum length of wire and wire gauge. Make sure to determine the wire configuration before installation. NOTE: You may use both direct-run and daisy-chain configurations, just make sure the maximum number of torches is not exceeded. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 16: Wiring Multiple Transformers To One Switch
WA R N I N G A T T E N T I O N Hot (Black) Common (White) Ground (Green) WA R N I N G A T T E N T I O N © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 17: Wiring Multiple Torches To One Transformer
A T T E N T I O N Hot (Black) Common (White) Ground (Green) Direct-Run Example WA R N I N G A T T E N T I O N Hot (Black) Common (White) Ground (Green) © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 18: Daisy-Chain Wire Length Chart
28 Volt Lead* Wire 104' 14 G 242' 157' 113' 160' 12 G 369' 238' 173' 134' 108' 245' 144' 10 G 566' 366' 266' 206' 165' * Not available on some transformers. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 19: Direct-Run Wire Length Chart
The wire will also be printed with a gauge number (e.g. AWG#14 = 14 gauge, 10AWG = 10 gauge, etc.). Do not use wires of dissimilar gauges (do not use 14 gauge & 10 gauge wire on the same transformer). © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 20: Post Mount And Control Cover Installation
¼-20 screws. (d) Attach the control cover to the torch with the two thumbscrews. ! The safety label slides into place between the control cover and the torch body. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 21: Torch Assembly
! Tighten the bolt only enough to hold the glass in place – over- tightening may break the glass. Repeat steps “d” and “e” for the other three pieces of glass. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 22: Post Or Pier Mounted Torch (Optional)
(included with torch) (included with torch) 3 Inch Diameter Post 3 Inch Diameter Post Gravel (or equivalent) Post Base (separate kit) Elec. Line Deck Surface Line (or equivalent) Elec. Line Concrete Footing Line © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 23: Wall Mounted Torch (Optional)
The Tempest Torch may be mounted to an external wall using the optional wall mount kit. Make sure that all clearances are maintained in your application. See the wall mount kit for assembly and installation instructions. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 24: Optional Rain Cap
(shipped pre-attached to the rain cap). WARNING: DO NOT cover the torch with anything other than the included optional rain cap. Enclosing the torch head in a cover can create a hazardous condition. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 25: Before You Begin
Inspect the torch, burner, and supply lines for any damage prior to operation. The burner must be replaced prior to the appliance being put into operation if it is evident that the burner is damaged. Use only Travis Industries replacement burners. It may be difficult to see the burner operating in direct sunlight. -
Page 26: Maintenance
This will ensure the torch is not accidentally turned on or started with debris or snow inside the torch. WARNING: Do not cover the torch. A cover could combust if it is in place when the torch is turned on, creating a severe safety hazard. © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 27: Replacement Parts
VERTICLE ROD w/SCRWS, TEMPEST 250-01251 GLASS – TEMPEST 250-04611 STOVE PACK, TEMPEST ELCTRC IGN 250-01789 BALL VALVE, (SHUT-OFF) TEMPEST 250-04612 MANUAL Replacement parts can be obtained from your Tempest Torch retailer (see www.tempesttorch.com). © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 28: Troubleshooting Table
Windy Condition Torch makes Clicking THIS IS NORMAL Glass is moving inside the glass frame and the stainless steel parts Sounds are expanding and contracting with heat © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v... -
Page 29: Limited Warranty
Register your TRAVIS INDUSTRIES, INC. Limited 7-Year Warranty online at traviswarranty.com. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call. - Page 30 Notes © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v...
- Page 31 Notes © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v...
- Page 32 Wall Mounted Torch ...................... 23 Wire Configuration - Direct-Run vs Daisy-Chain Installations ........15 Wiring Installation ......................10 Wiring Multiple Torches to One Transformer ..............17 Wiring Multiple Transformers to One Switch ..............16 © Travis Industries, Inc. 5/16/25 - 1471 Tempest 24v...
