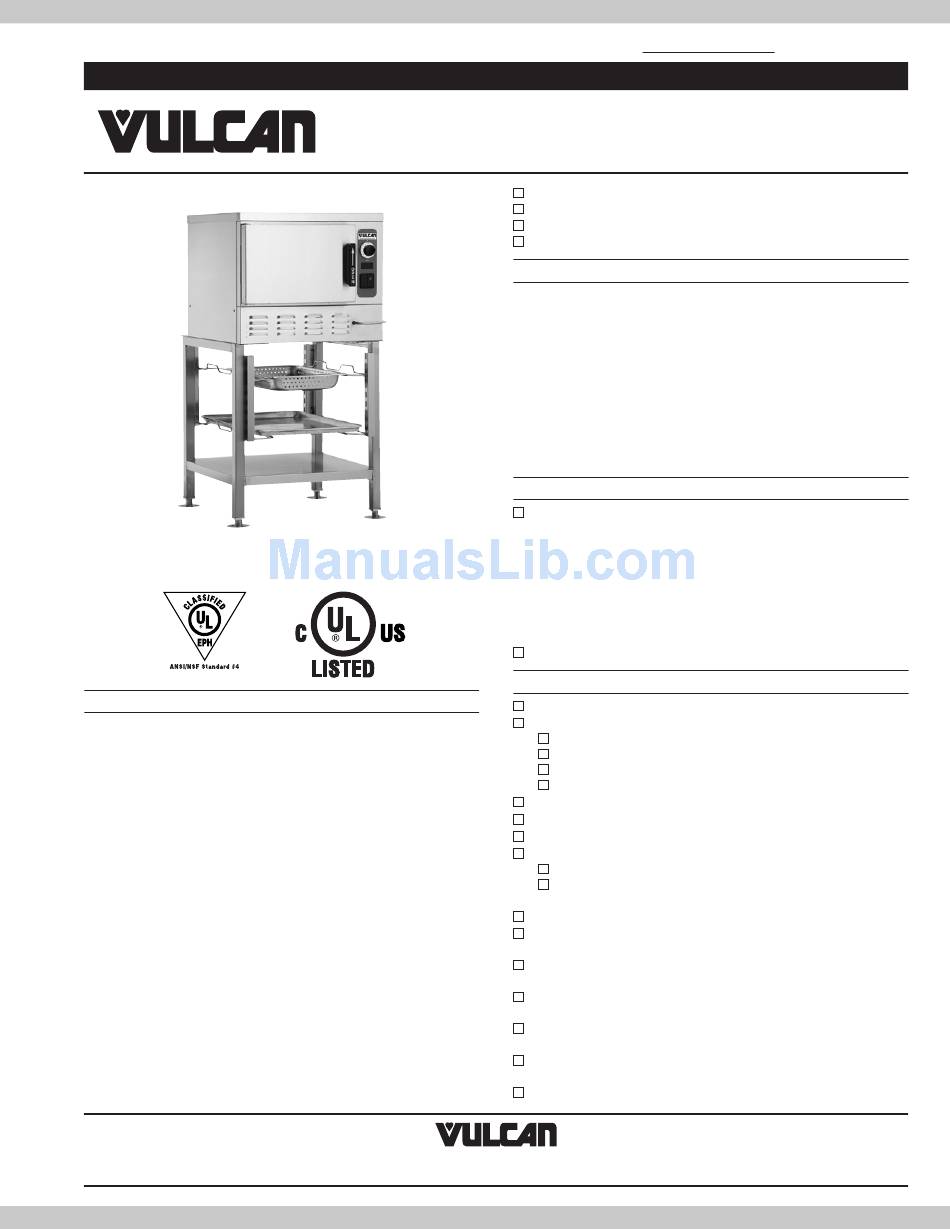

SPECIFICATIONS

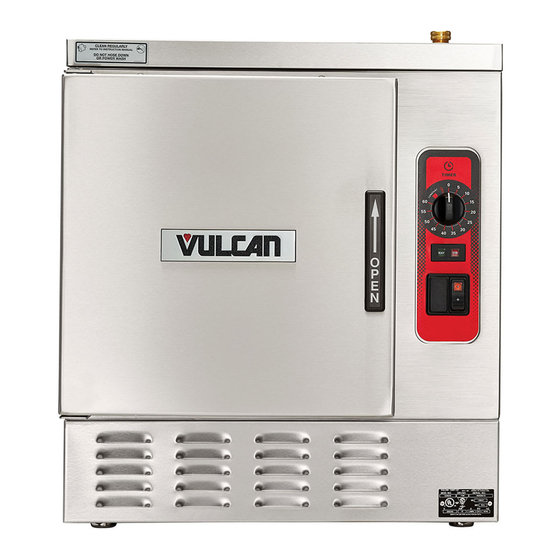

Single compartment electric convection steamer, Vulcan-Hart
Model No. (C24EA3-BSC) (C24EA5-BSC). Stainless steel exterior
and cooking compartment with coved interior corners. Manual
control with 60 minute timer. High output stainless steel steam
generator with manual drain and Smart Drain System (timed drain)
with PowerFlush. Heavy duty door and door latch mechanisms.
Shipped for 208/60-50/3 electrical service. Can be field converted
to 208/60-50/1 and 240/60-50/3 and 240/60-50/1. Split water line
connection. 1 ⁄ " NPT drain connection.
1
2
Exterior Dimensions:
3 pan: 24"w x 33"d x 19 ⁄ "h.
1
2
5 pan: 24"w x 33"d x 26"h.
P.O. Box 696 Louisville, KY 40201
■
F32627 (03/12)
Sprouts ‐ Smoker
C24EA5‐BSC ()
S T E A M
ELECTRIC COUNTER CONVECTION STEAMER

STANDARD FEATURES

■ Stainless steel exterior and cooking compartment with coved
■ Leveling feet.
■ Manual control with 60 minute timer.
■ High output stainless steel steam generator with manual drain
■ Heavy duty door and door latch mechanisms with gasket guard.
■ Shipped for 208/60-50/3 electrical service. Can be field converted
■ Split water line connection. 1
■ One year limited parts and labor warranty.

OPTIONS

ACCESSORIES (Packaged & Sold Separately)
a division of ITW Food Equipment Group LLC
Toll-free: 1-800-814-2028
■ ■
Bargreen Ellingson‐ Washington
Item #
C24EA SERIES
C24EA3-BSC 3 pan capacity basic controls
C24EA3-DLX
3 pan capacity professional controls
C24EA5-BSC 5 pan capacity basic controls
C24EA5-DLX 5 pan capacity professional controls
interior corners.
Smart Drain System (timed drain) with PowerFlush.
to 208/60-50/1 and 240/60-50/3 and 240/60-50/1.
Professional Control Package includes:
■ Superheated Steam System
■ Staged Fill
■ Lighted power switch with cook and ready lights
■ Auto drain with Smart Drain System (timed drain) with
PowerFlush
■ Timer 60 minute 60 cycle (50 cycle x 1.2) with Constant Steam
Setting
■ Cord strain relief
Second year extended limited parts and labor warranty contract.
4" counter legs.
Open leg stand.
28" open leg stand with pan slides 24"w x 28"h.
34" open leg stand with pan slides 24"w x 34"h.
Set of two universal pan slides for open leg stand.
Stand sliding shelf.
Stand sliding shelf.
Casters.
15" open leg stand.
Stacking kit for two units with hardware, counter mount.
Casters.
Single point electrical connection kit for stacked units,
3-phase only.
Pull-out 12" x 20" sliding shelf (cooking compartment). Qty. ____.
Cord and plug set, 208-240v/1ph (rated to 45 amps) 72":
ANGLED PLUG HBL9462C NEMA 14-60 (CORDPLG-3PAN1P)
Cord and plug set, 208-240v/3ph (rated to 40 amps) 72":
ANGLED PLUG HBL8462C NEMA 15-60 (CORDPLG-3PAN3P)
Cord and plug set, 208-240v/3ph (rated to 55 amps) 72":
ANGLED PLUG HBL8462C NEMA 15-60 (CORDPLG-5PAN3P)
Cord and plug set, 480v/3ph (rated to 30 amps) 72":
STRAIGHT PLUG HBL2731 NEMA L16-30 (CORDPLG-5PAN480)
Flex stainless steel water connection 72"
both ends, 2 required.
Water treatment system.
