INSTALLATION

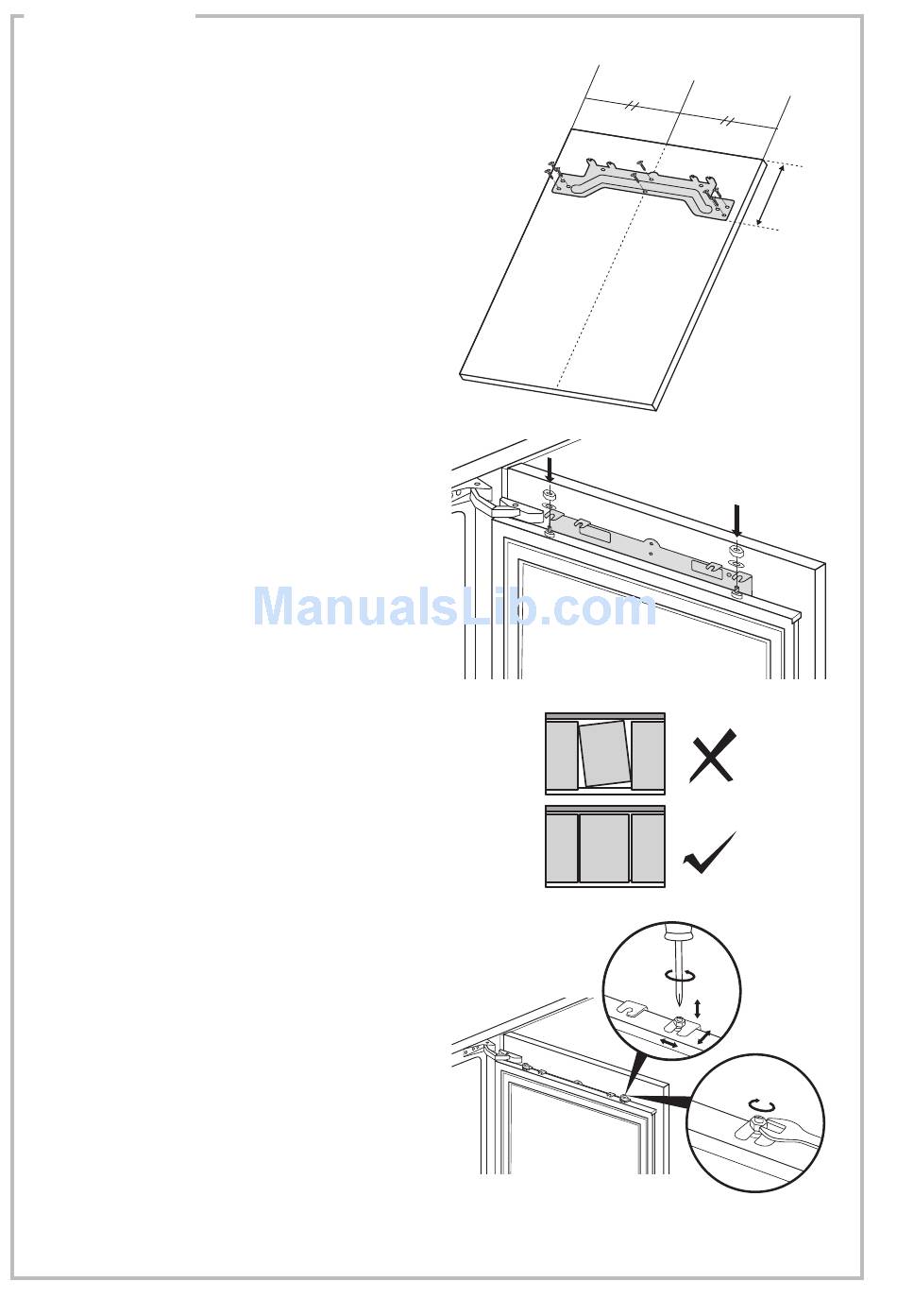

3. To obtain the measurement for
positioning the door hang, subtract
A from B . Center the door hang
horizontally and screw in the door hang
as shown.
4. Place the kitchen cabinet (aesthetic) door
onto the fridge door by inserting the
adjustment bolts into the slots on the
door hang. Place the washers and screw
the nuts onto the adjustment bolts, do
not tighten.
5. Align the kitchen cabinet (aesthetic)
door by adjusting the double threaded
bolts by using a flat bladed screwdriver
(not included) of sufficient size. When
supplied the adjustment will only allow
unscrewing, do not try to tighten. Once
alignment is achieved, tighten the nuts
to fix the bracket, use the screwdriver to
prevent the adjustment from moving if
necessary.
* All images are for indication only; please refer to your individual unit for actual item.
