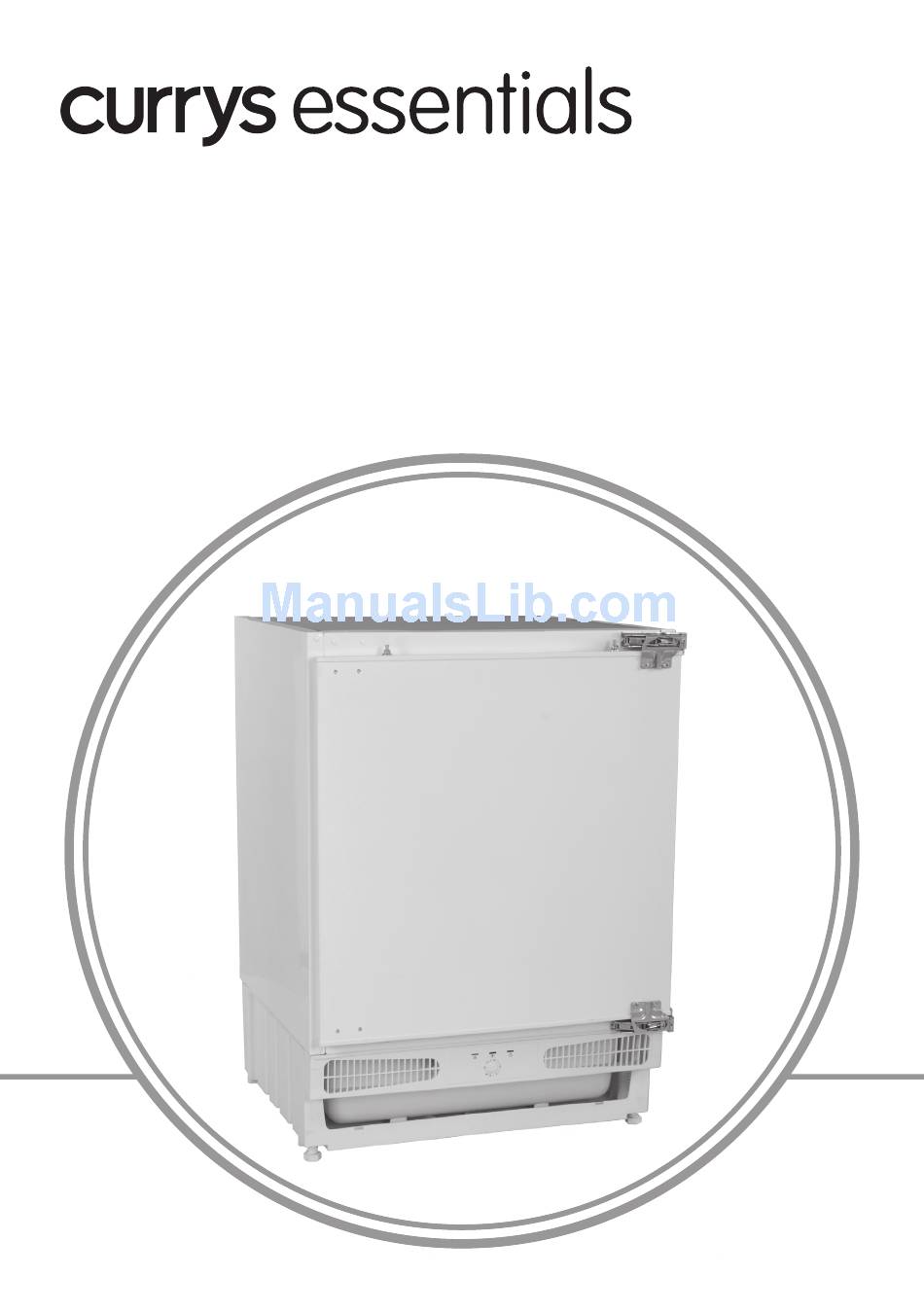

- Page 1 INTEGR ATED BUILT UNDER FREE ZER IN S T R U C T I O N / IN STAL L ATI ON MA N UAL C I F 60 W 12...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 3 Location ..................................4 Reversing the Door Swing ........................... 4 Reversing the Freezer Compartment Door Swing ..................7 Height Regulation ..............................8 Installation of the Unit Under the Worktop ....................8 Fastening the Unit Under the Worktop ......................8 Mounting the Kitchen Cabinet Door .................. -
Page 4: Unpacking
Thank you for purchasing your new Currys Essentials Integrated Built Under Freezer. You must spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Location
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 10°C and 32°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 INSTALLATION 2. With the door closed remove the screws on the outside of the hinges. Start with the top hinge. 3. Open the hinges away from the door. 4. Remove the door, while supporting the bottom of the door. Be careful with the hinges.
- Page 7 INSTALLATION 6. Remove the 4 blanking plates from the fridge cabinet. 7. Turn the hinges over and place them on the diagonally opposite corner of the cabinet. Screw them back in place. Replace all the blanking plates on the opposite side of both the cabinet and the fridge door.
-
Page 8: Installation Of The Unit Under The Worktop
INSTALLATION Dimensions min 550 820 - 890 819-889 100 - 170 min 25 Installation of the Unit Under the Worktop Take care that the legs are not dragged when sliding the unit under the counter as this could lead to breakages. * All images are for indication only;... - Page 9 INSTALLATION Fastening the Unit 1. Remove the screw at the top of the unit. Place the top bracket and fix the bracket with the screw. 2. Remove the rubber strip located on the side panel. Remove the backing paper from the rubber strip. 3.
-
Page 10: Mounting The Kitchen Cabinet Door
INSTALLATION 5. Slide the unit carefully, by lifting slightly to avoid damaging the feet, into the kitchen unit and align the hinge surface with front surface of the kitchen unit. 6. Screw the hinges and metal bracket to the kitchen unit. Mounting the Kitchen Cabinet Door 1. - Page 11 INSTALLATION 3. To obtain the measurement for positioning the door hang, subtract A from B . Center the door hang horizontally and screw in the door hang as shown. B - A 4. Place the kitchen cabinet (aesthetic) door onto the fridge door by inserting the adjustment bolts into the slots on the door hang.
- Page 12 INSTALLATION 6. Remove the screws at the bottom of the fridge door. 7. Place the door bottom fixings and screw the fixings to the fridge door and the cabinet door. 8. Slide the hang cover onto the door hang. * All images are for indication only; please refer to your individual unit for actual item.
-
Page 13: Cleaning Before Use
INSTALLATION 9. Slot in the plinth and ensure there is a minimum of 25 mm gap between the cabinet door and the plinth. The plinth may need to be notched depending upon the unit’s height from the floor. Min. 25mm Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. -
Page 14: Before Using Your Unit
INSTALLATION Before Using Your Unit Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled. -
Page 15: Product Overview
Product Overview Main Unit Freezer Drawer Thermostat Control Dial Ice Tray Control Panel 1. Compressor Light Lights orange, when the compressor runs. In SF mode, it will light continuously. 2. Power Light Lights green automatically, when the appliance is connected to the power supply. 3. -
Page 16: Operation
Operation Switching On Your Unit Power Light 1. The internal temperature of your unit is controlled by a thermostat. There are seven settings, of which Compressor Alarm Light Light position 5 is the coldest, position 1 is the warmest and position 0 turns the unit off. For Details of SF setting see bottom of page box below. -
Page 17: Fast Freezing
Fast Food Freezing Fresh food should be frozen as quickly as possible. Setting the thermostat to position SF makes your freezer operate at its coldest (approximately -28°C ). The Compressor Light will light continuously. It allows you to quickly freeze your food and retain more of the goodness. Freezing will be complete after 24 hours. -
Page 18: Defrosting Frozen Food
• Label your frozen foods as they will look the same when in frozen state. Use special fridge freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. -
Page 19: Cleaning
Cleaning Defrosting Frost might build up in the unit after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included). Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting. -
Page 20: Maintenance
Maintenance Care When Handling / Moving Your Unit Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface. Servicing The unit should be serviced by an authorised engineer and only genuine spare parts should be used. -
Page 21: Specifications
Specifications Model CIF60W12 Frozen Food Storage Volume Storage Temperature ≤ -18°C Energy Consumption 0.511kWh / 24h Energy consumption 187 kwh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. -
Page 22: Normal Energy Consumption
Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, (radiator, oven). oven). -
Page 23: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • This unit is designed for Domestic / Household use only. • Read all instructions carefully before using the unit and keep them for future reference. •... - Page 24 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Small Freezer Drawer 42038209 Ice Tray 42053128 Wood Screw 37001045 Door Hang 37011134 Door Bottom Fixing 37002541 Hang Cover 42038292 Screw 35000714...
