Summary of Contents for Currys Essentials CTF55W12

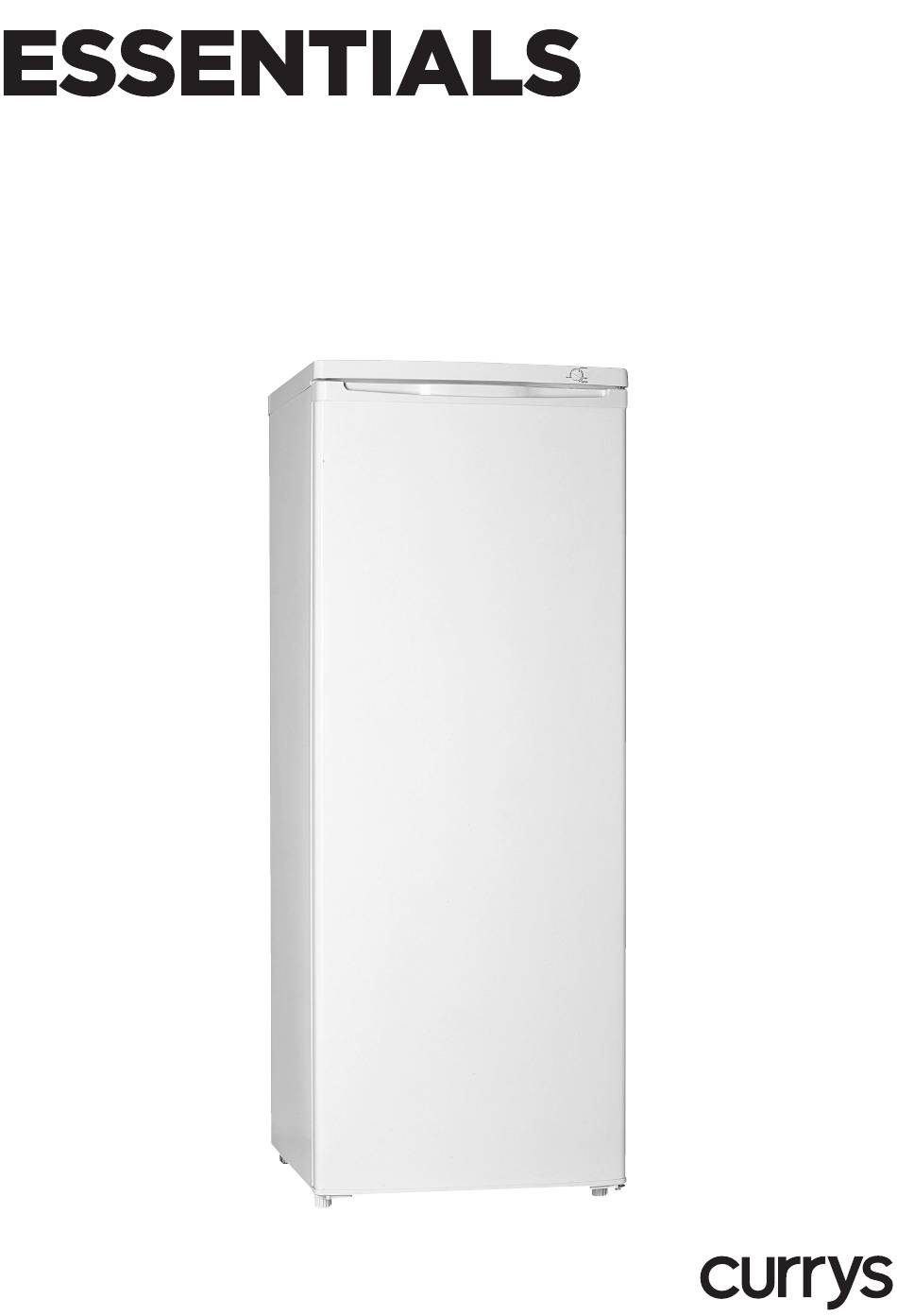

- Page 1 INSTRUCTION MANUAL TALL FREEZER CTF55W12...
-
Page 3: Table Of Contents
Contents Safety Warnings ............................. 4 Unpacking ..............................6 Installation ..............................7 Location......................................7 Levelling the Unit..................................7 Installing the Spacers .................................. 7 Free Space Requirements ................................. 7 Reversing the Door Swing ................................. 8 Cleaning Before Use ...................................11 Before Using Your Unit ................................11 Product Overview ............................ -
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 5 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 6: Unpacking
Thank you for purchasing your new Currys Essentials Freezer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Installation
Installation INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. -
Page 8: Reversing The Door Swing
INSTALLATION Reversing the Door Swing Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner • Ensure the unit is unplugged and empty. • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. - Page 9 INSTALLATION 4. Remove the screws and bottom hinge. Then remove the adjustable feet from both side. unscrew 5. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. unscrew screw 6. Refit the bracket fitting the bottom hinge pin.
- Page 10 INSTALLATION 7. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge. screw 8. Put the top cover and the thermostat knob back. 9.
-
Page 11: Cleaning Before Use
INSTALLATION Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves, drawers and salad bin. Clean the exterior of the unit with a damp cloth. If you require more information refer to the Cleaning section. -
Page 12: Product Overview
Product Overview Thermostat Control Dial Freezer Drawers Levelling Feet... -
Page 13: Operation
Operation Switching On Your Unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are six setting MIN, MED and MAX. 2. After the unit has been on for 20 minutes adjust the thermostat control dial to MED. -
Page 14: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. •... -
Page 15: Cleaning
Cleaning Defrosting Frost might build up in the unit after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included). Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting. -
Page 16: Maintenance
Maintenance Care When Handling / Moving the Unit Hold the unit around its sides or base when moving it. Servicing The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. -
Page 17: Specifications
Specifications Model CTF55W12 Net Frozen Food Storage Volume 160 L (Four-Star Compartment) Storage Temperature ≤ -18°C Energy Consumption 0.597 kWh / 24h Energy consumption 217 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. - Page 20 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK. IB-CTF55W12-140429V4...
