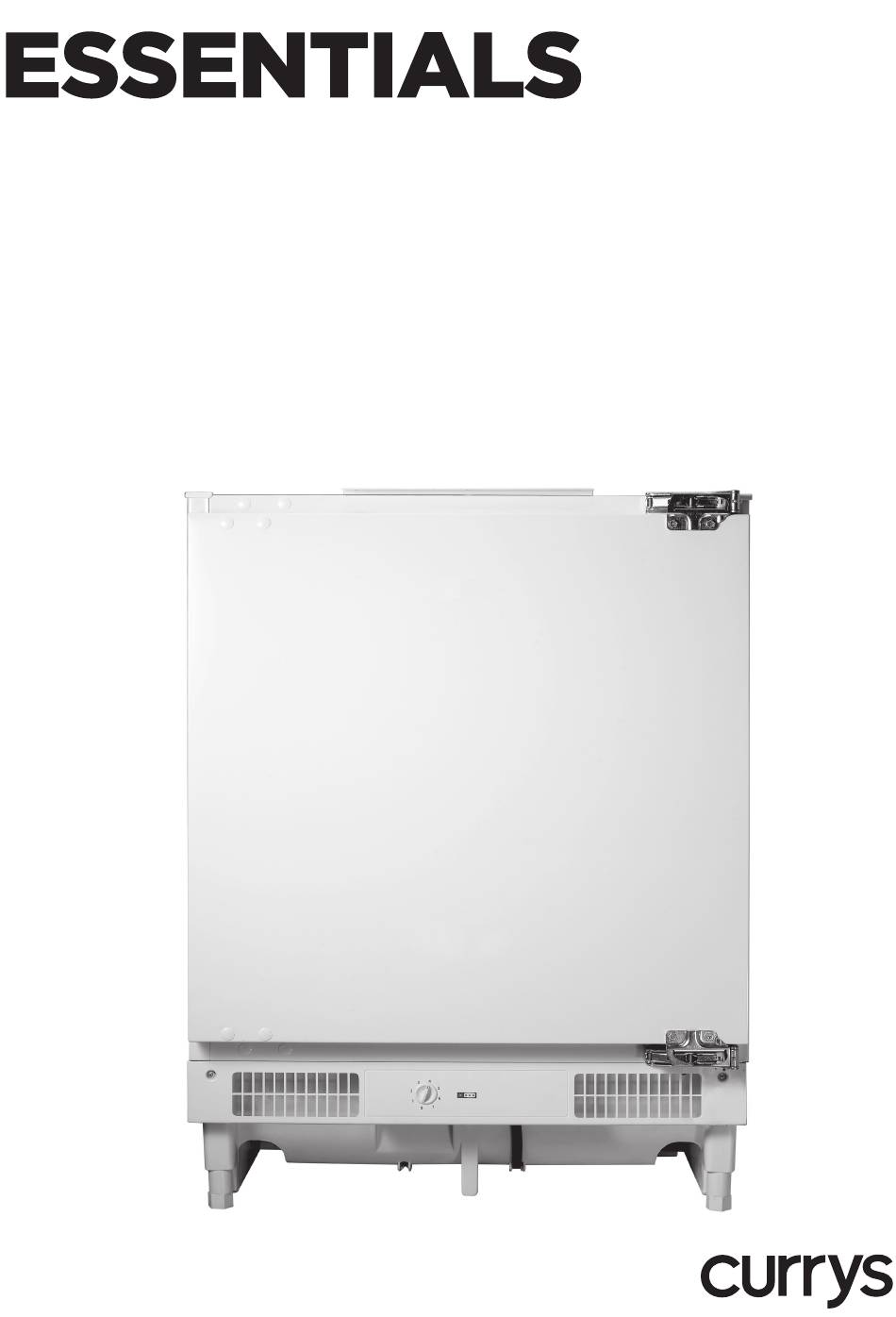

- Page 1 INSTRUCTION MANUAL BUILT-IN 60CM WHITE UNDER- COUNTER FREEZER CIF60W14...
-
Page 3: Table Of Contents
Contents Safety Warnings ........................... 4 Unpacking ............................ 6 Location ..................................7 Levelling the Unit ..............................7 Free Space Requirements ........................... 7 Reversing the Door Swing ........................... 8 Height Regulation ..............................10 Installation of the Unit Under the Worktop ....................10 Fastening the Unit Under the Worktop ......................11 Mounting the Kitchen Cabinet Door ......................11 Cleaning Before Use ............................13 Before Using Your Unit ............................13... -
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 5 • Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable) WARNING • Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
-
Page 6: Unpacking
Thank you for purchasing your new Currys Essentials Freezer. You must spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Location
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. -
Page 8: Reversing The Door Swing
INSTALLATION Reversing the Door Swing Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner • Ensure the unit is unplugged and empty. • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. - Page 9 INSTALLATION 4. Remove the door while supporting the bottom of the door. Be careful with the hinges. 5. With the hinges open, undo the screws holding them to the cabinet. Be careful with the hinges, use a long shafted screwdriver if you have one. 6.
-
Page 10: Height Regulation
INSTALLATION 8. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed. Height Regulation min 580 825 - 870 825 = 100 - 170 870 = 180 - 250... -
Page 11: Fastening The Unit Under The Worktop
INSTALLATION Fastening the Unit Under the Worktop Screw the unit to the worktop using the screws provided (3 x ST4.2 screws). Remember to drill the holes. Mounting the Kitchen Cabinet Door 1. Fit both the double threaded bolts to the top of the fridge door. Leave a gap of 2mm between the double threaded bolt and the top of the fridge door. - Page 12 INSTALLATION 3. Fit the upper connecting blocks after drilling holes. Screw Upper Connecting Block Aesthetic Door 4. Fit the lower connecting blocks to the bottom of the fridge door. Fridge Door Lower Connecting Block Bolt 5. Hang the aesthetic door onto the fridge door.
-
Page 13: Cleaning Before Use
INSTALLATION 7. Once alignment is achieved , fit the domed headed nuts. Domed Headed Nuts Aesthetic Door Fridge Door 8. Open the fridge door and screw the Aesthetic Fridge Door bottom of the aesthetic door to the lower Door connecting block. Remember to drill the holes Ø2.8 mm to a depth of 10 mm. -
Page 14: Product Overview
Product Overview Main Unit Freezer Drawer Thermostat Control Dial Levelling feet Ice Tray Control Panel... -
Page 15: Operation
Operation Switching On Your Unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are seven settings, of which position 7 is the coldest and position 0 turns the unit off. -
Page 16: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. • Consider how you will want to cook the food before freezing it. -
Page 17: Cleaning
Cleaning Defrosting Frost might build up in the unit after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included). Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting. -
Page 18: Maintenance
Maintenance Care When Handling / Moving Your Unit Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface. Servicing The unit should be serviced by an authorised engineer and only genuine spare parts should be used. -
Page 19: Specifications
Specifications Model CIF60W14 Frozen Food Storage Volume Storage Temperature ≤ -18°C Energy Consumption 0.504kWh / 24h Energy consumption 184 kwh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. - Page 20 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK IB-CIF60W14-160112V4...
