Planet ICA-HM240 Quick Installation Manual

VERIFY THE CONTENTS INSIDE PACKAGE BOX
The package should contain the items plus ICA-HM240. If any item is missing or damaged, please contact the seller immediately
Quick Installation Guide

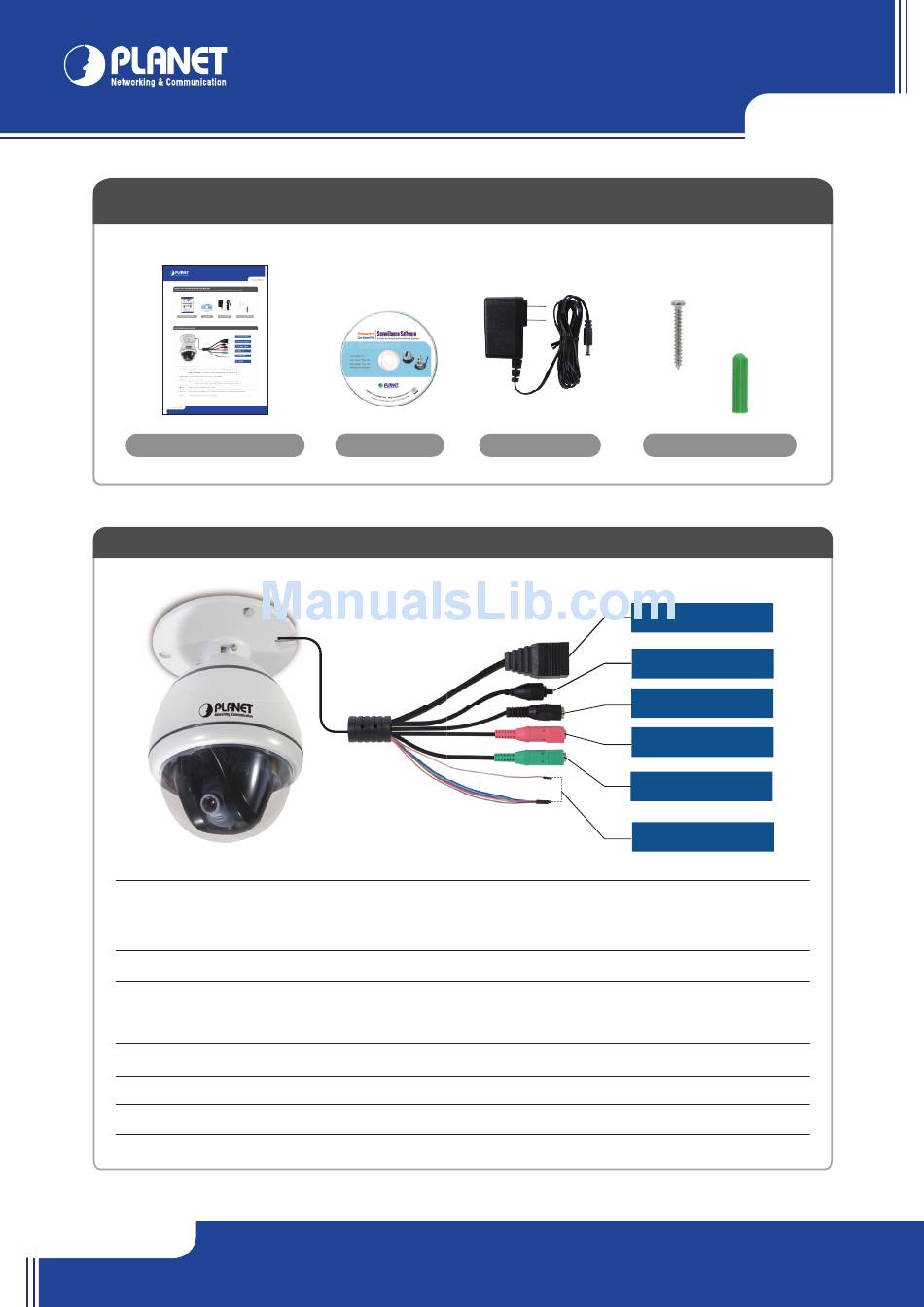

ICA-HM240 Physical Detail
1. LAN socket Please use CAT-5 cable to connect the IP Camera to a 10/100Mbps Ethernet switch or hub.
LAN LED (Green) : This indicator will be flashing while network accessing via Ethernet.
Power LED (Orange) : This indicator is used to indicate whether DC power is on or not.
2. Reset Button This button is used to restore the all factory default settings.
3. Power Jack The input power is 12VDC
Note : 1. Supply the power to the IP Camera with the power adapter included in package.
4. MIC IN Please connect a microphone to the IP Camera.
5. Line Out Please connect a loud speaker to the IP Camera. This function is for voice alerting and two-way audio.
6. DI/DO Please connect to sensor in and alarm out equipment.
Quick Guide
CD-ROM
2. Use either 12VDC power or 802.3af PoE. Please do not apply both at the same time.
Power Adapter
Camera Mounting Kit
1. LAN Socket
2. Reset Button
3. Power Jack
4. MIC in
5. Line out
6. DI/DO
ICA-HM240
x 3
x 3
