Congratulations!
In the seca 220 measuring rod, you have
acquired an accurate and at the same time
sturdy rod for measuring the height of chil-
dren and adults.
It is manufactured from stable, easy-care
aluminium profile.The measuring slide is
made of plastic and can be folded.
The seca 220 measuring rod is for measur-
ing height and thus for assessing the state
of health of patients and for detecting and
monitoring pathological nutritional or other
physiological disorders.
It is attached to the column of seca column
scales using the assembly material sup-
plied.
In combination with a scale, therefore, the
measuring rod serves as a complete meas-
uring and weighing station.
The seca 220 measuring rod is used with a
seca column scale primarily in hospitals,
general practice and measuring and nurs-
ing facilities on wards.
Safety
Before using the new measuring rod,
please take a little time to read the following
saftey instructions:
• Follow the operating instructions.
• Attach the measuring rod only to seca
column scales.
• Use the assembly material supplied.
6
• When assembling,ensure that screws
are tight and that the rod has been as-
sembled correctly (see chapter entitled
"Assembly instructions ").
• Fold down the measuring slide after
height has been measured to avoid the
risk of injury.
Assembly instructions
1. Screw the fixing block to the rear (on mod-
els 711/712:
) of the column using
front
two screws. Tighten the screws just far
enough so that the block can still be
moved.
2. Measure from the floor (on models 711/
712:
) to the bottom
from the platform
edge of the fixing block.
3. Move the fixing block until the appropri-
ate height (see diagrams) is set and then
tighten up the screws.

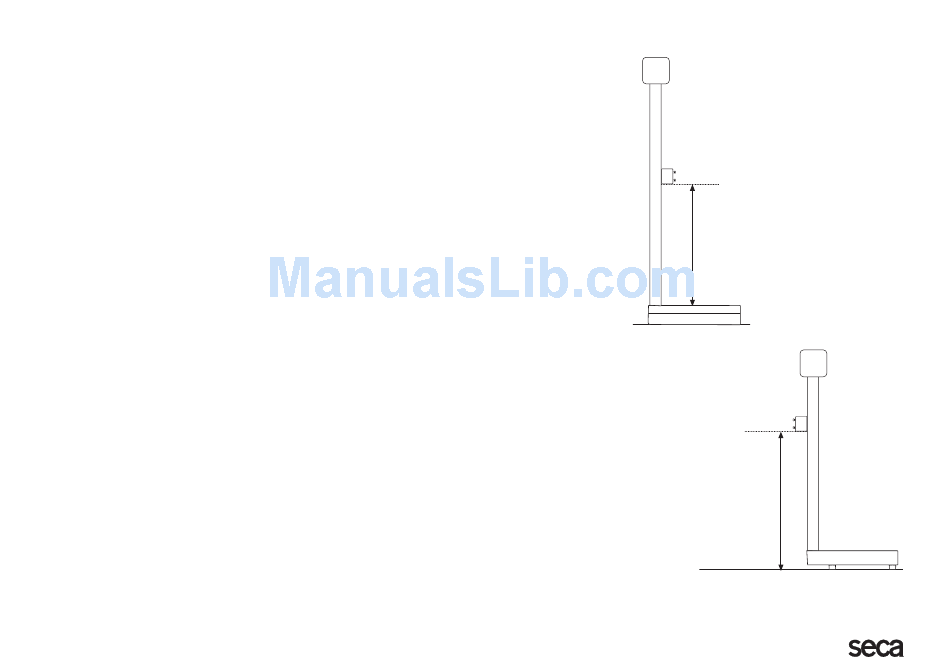

seca 711, 712, 711f + 712f
703 mm
all other seca models
seca 709/710:
683 mm
seca 709f/710f: 703 mm
all other models: 670 mm
