Installing the processor
1

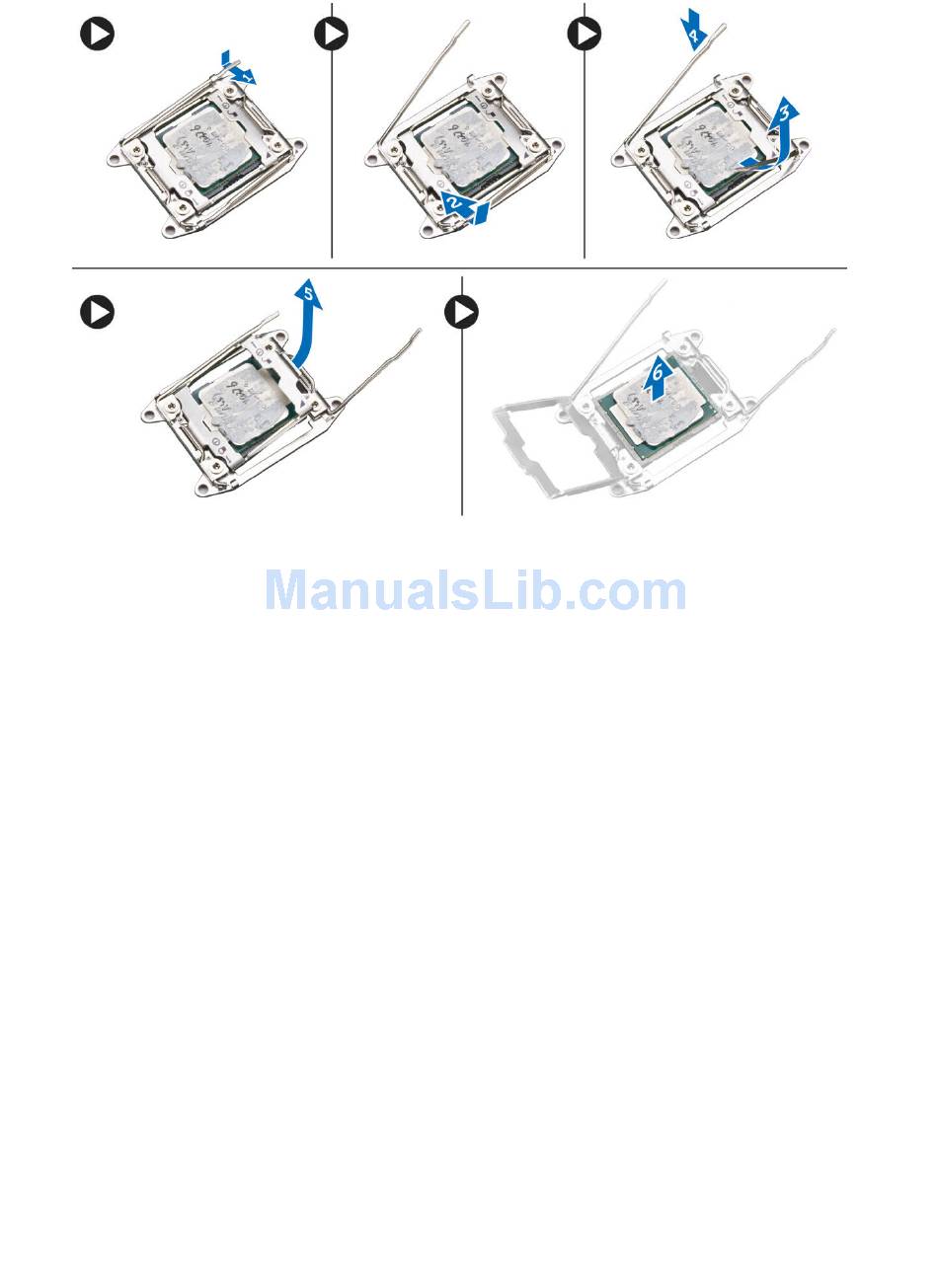

Insert the processor into the processor socket. Make sure the processor is properly seated.
2
Gently lower the processor cover.
3
Press the two release levers down and then move it in to secure it with the retention hook.
4
Install the:
a
heat sink and CPU fan assembly
b
air shroud
c
side cover
5
Follow the procedure in
Front system fan
Removing the front system fan
1
Follow the procedure in
2
Remove the:
a
side cover
b
front bezel
c
PCIe holder
3
To remove the front system fan:
a
Unroute the following cables from the card holder [3]:
•
SATA 0,1, 2, 3, 4, 5 cable and ODD 0, 1 cable [1]
•
USB 3.1 cable [2]
