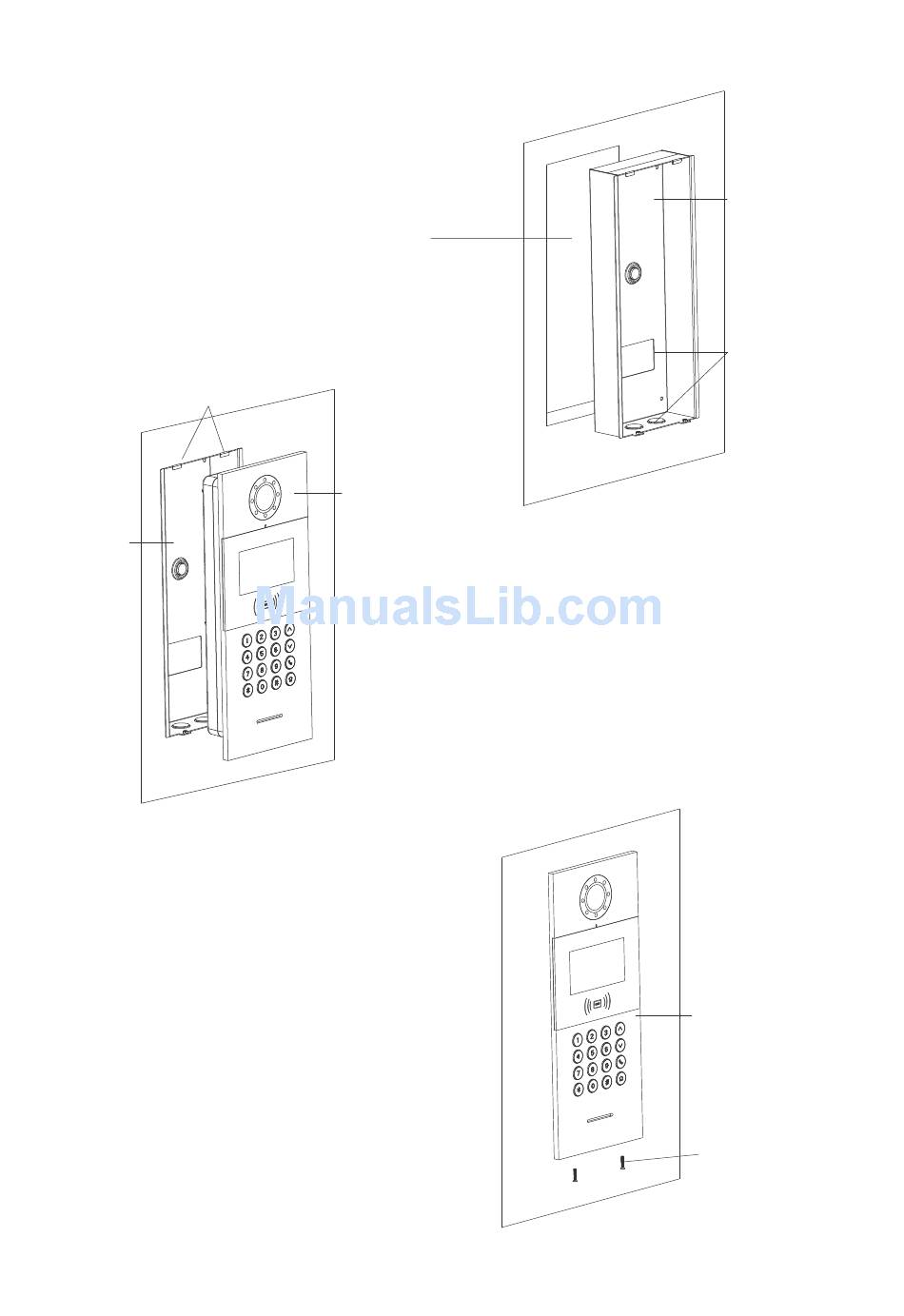

3.2 Installation Illustration

Step 1: Put the embedded box into the
preformed groove. After getting the cable
out through the opening, fasten the box
with nails or by cement.
Embedded box dimension（W/H/D）:
131.6 x 340x 49mm
Snap
Embedded
box
Wall
Step 3: Fasten the outdoor station to the
box with screws.
Preformed
groove
Outdoor Station
Step 2: After connect the cable to the
outdoor station, match the snap slot of
the outdoor station to the snap of
embedded box and press the outdoor
station into the box.
Wall
5
Wall
Outdoor Station
Embedded box
Opening for cable
Screws
