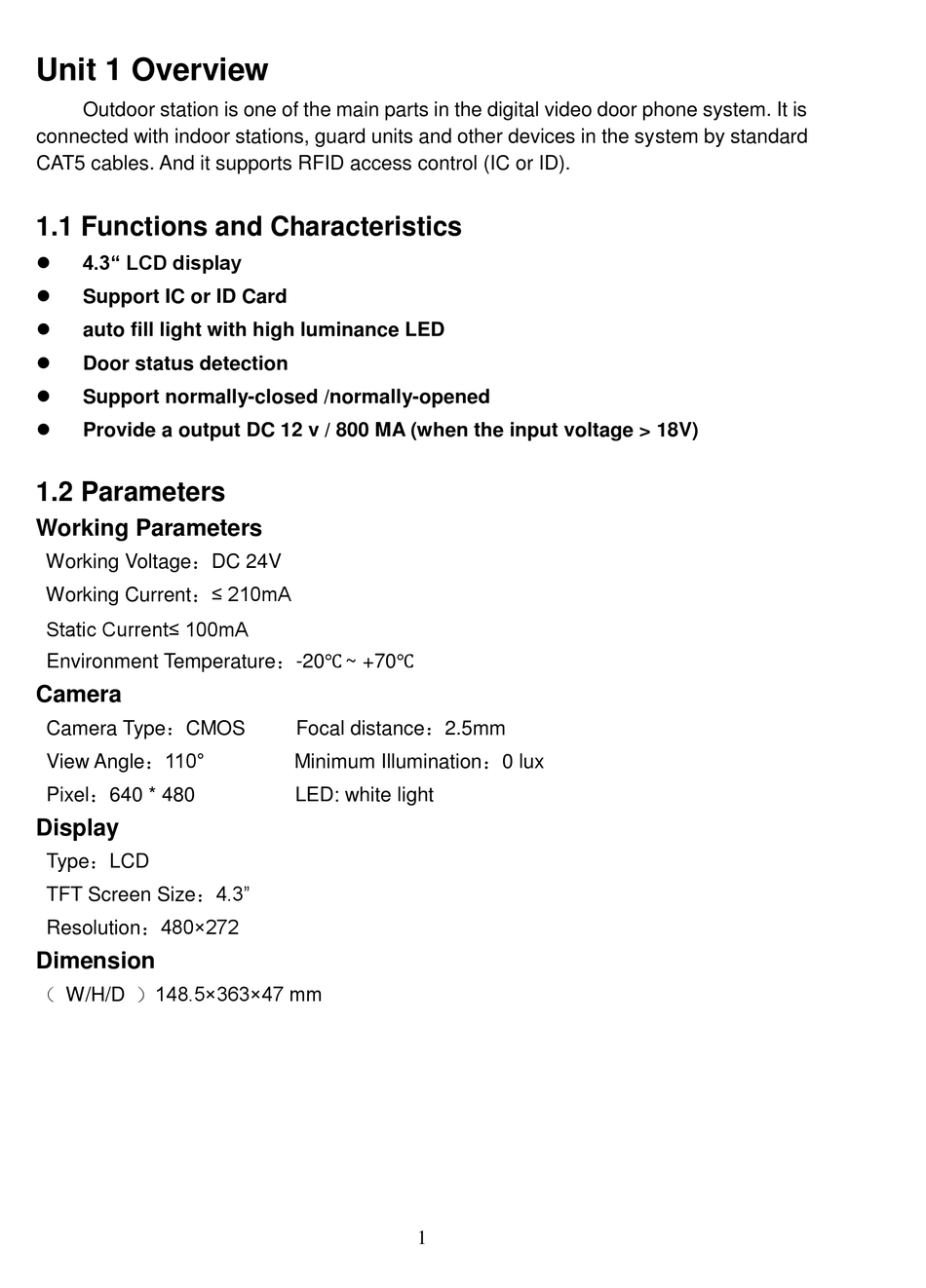

Unit 1 Overview

Outdoor station is one of the main parts in the digital video door phone system. It is
connected with indoor stations, guard units and other devices in the system by standard
CAT5 cables. And it supports RFID access control (IC or ID).

1.1 Functions and Characteristics

 4.3" LCD display

Support IC or ID Card

auto fill light with high luminance LED

Door status detection

Support normally-closed /normally-opened

Provide a output DC 12 v / 800 MA (when the input voltage > 18V)

1.2 Parameters

Working Parameters
Working Voltage：DC 24V
Working Current：≤ 210mA
Static Current≤ 100mA
Environment Temperature：-20℃ ~ +70℃
Camera
Camera Type：CMOS
View Angle：110°
Pixel：640 * 480
Display
Type：LCD
TFT Screen Size：4.3"
Resolution：480×272
Dimension
（ W/H/D ）148.5×363×47 mm
Focal distance：2.5mm
Minimum Illumination：0 lux
LED: white light
