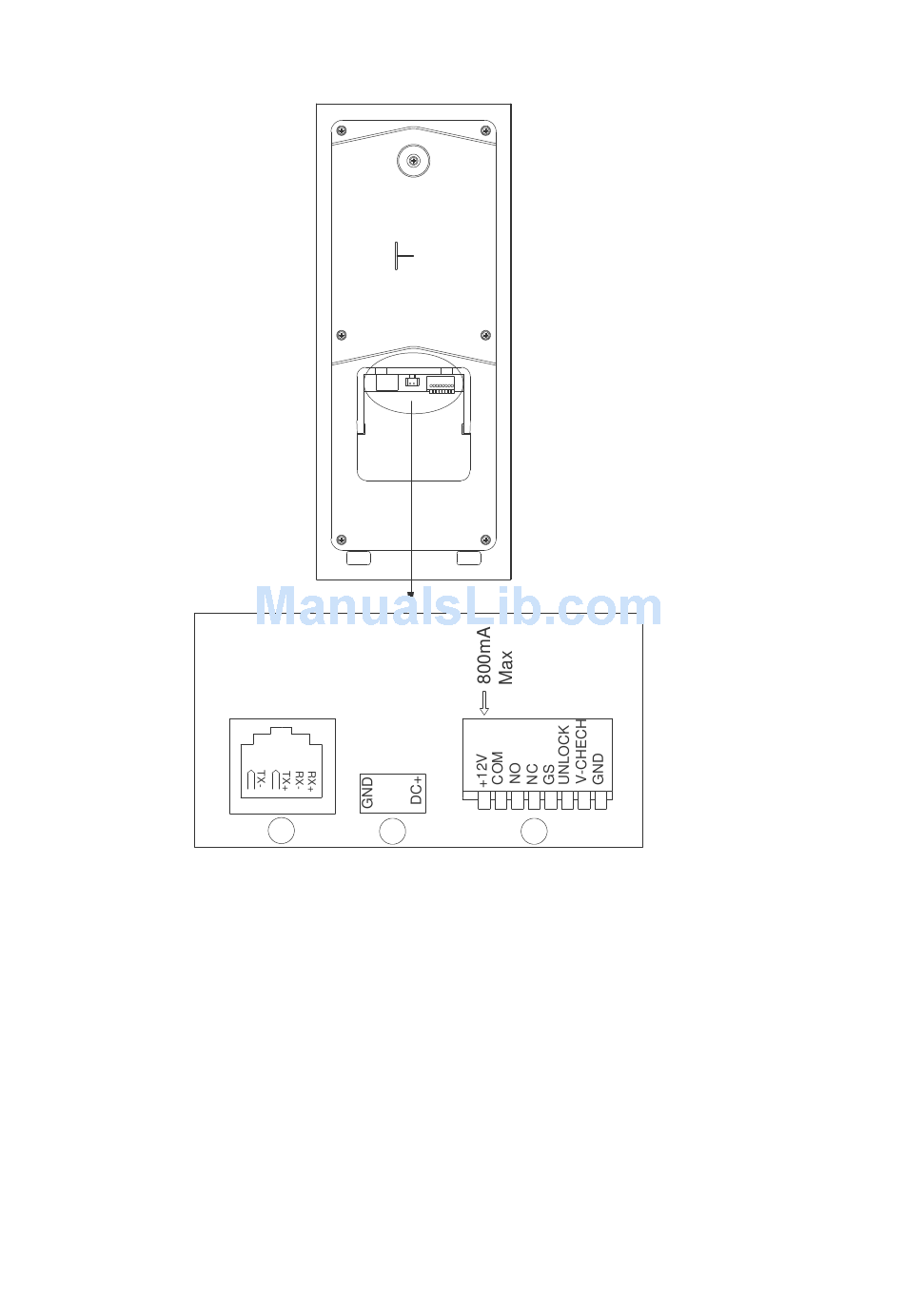

2.2 Rear View

1
2 3
1. Network Interface (Non-standard PoE 24V power supply; if power is needed for gate
lock or low temperature heating function is required, outdoor station must be supplied
independently).)
2. Interface for input power:DC 24 V (interface for independent power supply)
3. +12V ： Only when the outdoor station input voltage >18V, + 12 V voltage is given. If
input voltage is + 12 V, the output will be lower than + 10V.
COM, NO and NC ：Common pin, normally-open pin, and normally-closed pin for the
unlock relay.
GS: Door status detection input pin.
UNLOCK GND: unlock
