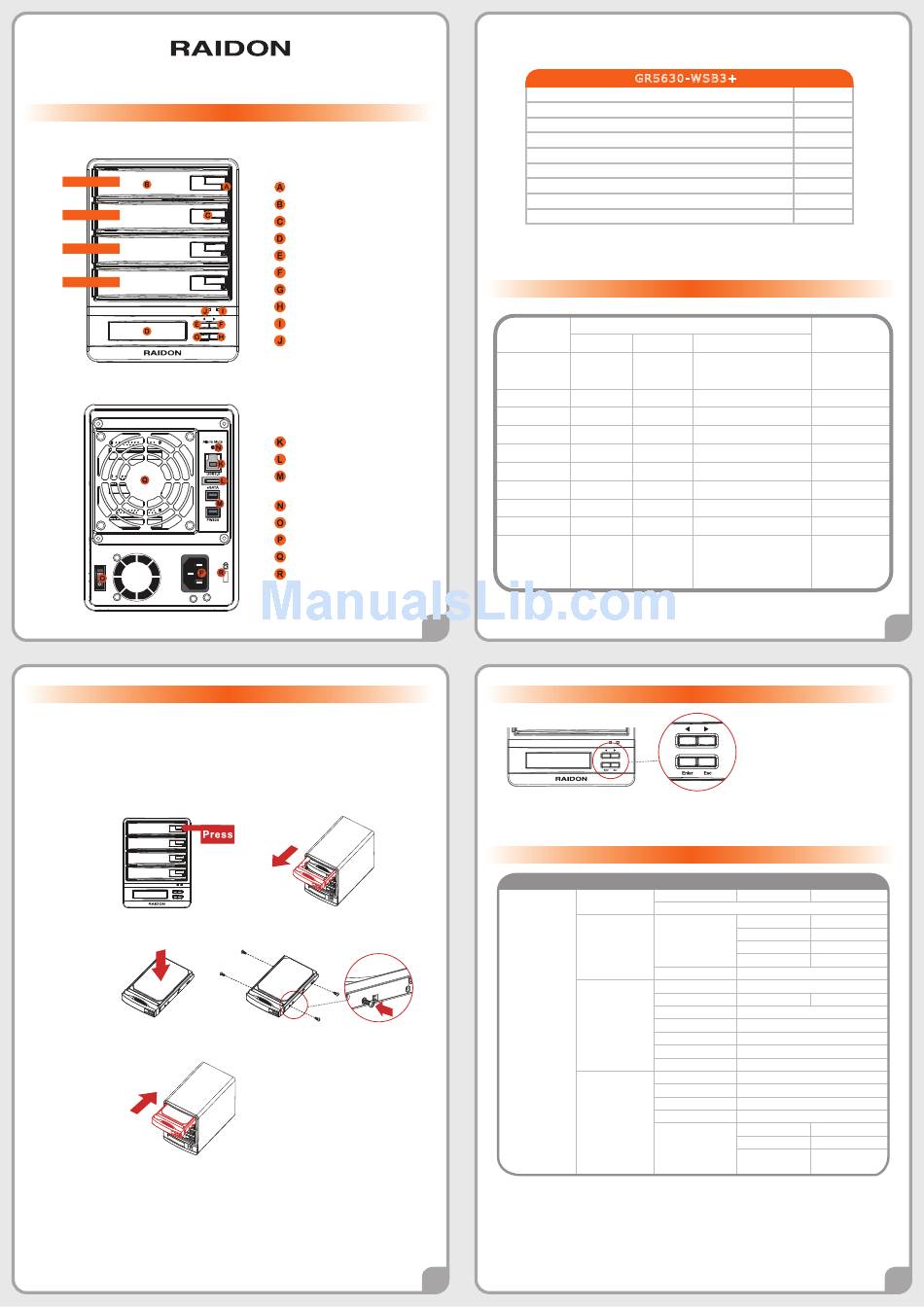

GR5630-WSB3+ Quick Installation Guide
P ac kag e C onte nts and Product Vi ews
Front view
Drive position(1)
Drive position(2)
Drive position(3)
Drive position(4)
Enter
Rear view
Alarm Mute
USB3.0
H ar dw ar e Instal l ati on
Step 1 Open the package and take out the product making sure that all the enclosed
contentsare not damaged or missing. Should you find damages or missing contents
, please contactyour supplier immediately.
Step 2 Place the system on a stable surface. Ensure that it is well ventilated without blockage
tothe vent and kept away from areas near water and damage prone areas.
Step 3 Press down the button for tray clamp to eject the removable drive tray latch and
extract the removable drive tray.
Step 4 Mount your hard drives onto the removable drive tray and secure it with the screws
included in the accessory kit to avoid any damage to the hard drive due to accidental
movements.
Step 5 When the hard drive installation has been completed, insert the hard drive tray into
the system horizontally and secure the latch into place.
Step 6 Connect the AC power cable to the GR5630-WSB3+, and then plug the AC power to
the wall socket. Boot-up the unit.
Step 7 Set the storage mode using the LCD and buttons on the front (please refer to section
5 for front panel and LCD information).
Step 8 Connect the cable to the PC and the GR5630-WSB3+ port.
Step 9 After boot-up, your operating system will automatically detect the storage capacity
of your hard drives. Please follow the operating system instructions to configure and
format your drives. The formatted drives can be configured for the RAID setup.
Hard drive status Indicator
Removable drive tray
Button for Tray Clamp
LCM display
UP button
DOWN button
ENTER button
ESC button
Power indicator
Alarm indicator
Esc
USB3.0 interface connection
e-SATA interface connection
FireWire 800 (1394b)
interface connection
Mute button
Power Switch
Power socket
Cooling fan
Anti-theft cord slot
Open the package and you should find the following :
Item
GR5630-WSB3+ (with removable drive tray enclosed)
Firewire 800 (1394b) Cable
e-SATA Cable
USB 3.0 Cable
AC Power Cable
Quick Installation Guide
Accessories Kit
CD(GUI)
Please make sure that the contents listed above are not damaged or missing. If you should
finddamages or missing contents, please contact your supplier immediately.
V i s ua l S ta tu s Ind i c ator D e fi n iti o ns
Front LED
States
Power LED
Power on
Blue
No disk
Blue
Disk Fail
Blue
RAID Fail
Blue
Disk Idle
Blue
Format
Blue
Access
Blue
Fan Fail
Blue
Over Temp.
Blue
Rebuilding
Blue
1
D e s c r ip tio n o f Fr on t Pa n e l Ope r a ti o n
Users can set the RAID mode using the LCD and buttons on the front. The default is JBOD mode. Using
"Quick Setup" function, users can change the RAID mode to RAID 0 or RAID 5 quickly.
Please refer to LCD Information as below for other setting.
Level 0
Level 1
Quick Setup
Disk Manager
External 4BAY
RAID Manager
HARDWARE
RAID
System Manager
Thank you for choosing product from RAIDON Technology Inc. This i n fo rma ti o n i n th e ma n u a l
h a s b e e n th o ro u g h l y ch e cke d b e fo re p u b l i ca ti o n , b u t ma y n o t co n fo rm to th e p ro d u ct
a ctu a l l y d e l i ve re d w h i ch me a n a ctu a l p ro d u ct sp e ci fi ca ti o n s d e p e n d o n th e p ro d u ct
sh i p p e d to yo u . An y u p d a te i n th e sp e ci fi ca ti o n s o r p ro d u ct-re l a te d i n fo rma ti o n sh a l l n o t
b e su b j e ct to fu rth e r n o ti ce b u t fo r th e l a te st i n fo rma ti o n o n th e p ro d u ct, p l e a se vi si t th e
w e b si te a s www.RAIDON.com.tw or contact us at supporting@raidon.com.tw, and we w i l l g e t
b a ck to yo u a s so o n a s p o ssi b l e .
C o p yri g h t © RAIDON TECHNOLOGY, INC. All rights reserved.
3
G R5 63 0 -W SB 3 +
Alarm LED
HDD LED
Blue flash => Blue
------
------
--------
------
Red
------
Red
------
Blue
Blue flash
------
------
Blue flash
Red
Blue
Red
Blue
Source: Blue flash
Target: Blue and Purple
------
light on alternatively
Enter: Enter to next level or Confirm
Esc: Back to next level or Cancel
Up / Down: Select Items
L CD In fo r m a ti on
Level 2
Level 3
Create One RAID
RAID 0/ RAID 5
Delete All RAID
Disk 1
Disk 2
Identify Disk
Disk 3
Disk 4
Show Disk Info
< Disk Info >
Identify RAID
Select RAID
Create RAID
RAID 0 / RAID 5
Delete RAID
Select RAID
RAID Info
Change RAID Pwd
< Password >
for RAID Setup
Rebuilding Priority
Highest/High/Medium/Low/Lowest
Standby Timer
< 99999min >
System Info
Firmware Version
Changhe Password
< Password >
for System Info
Logout From Menu
< Y or N >
Alarm Control
Mute the Buzzer
Voltage Monitor
Temp. Monitor
Hardware Monitor
Fan Monitor
Qty.
1
1
1
1
1
1
1
1
buzzer
1 long when
booting finished
------
------
4 short
------
------
------
4 short
4 short
------
2
Level 4
Select Disk
Check Disk LED
Check Disk LED
Check Disk LED
Check Disk LED
Select Disk
< 3.3V/5V/12V >
< Temp. >
< Fan Speed /
Fan Level >
4
