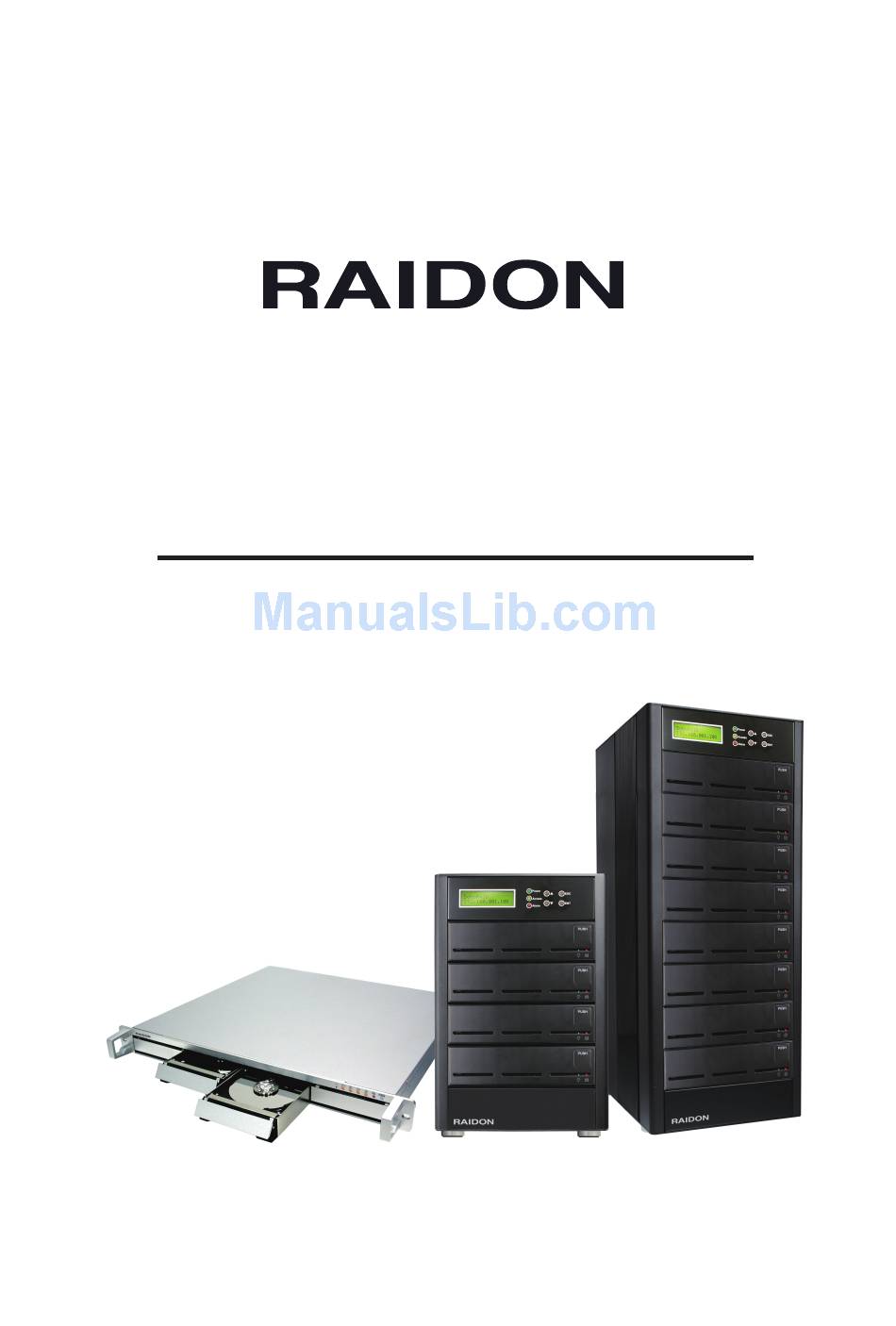

- Page 1 SR7650-4S-U3D SR5650-4S-U3D GR5800-8S-U3D Quick Guide Version : 1.0 (August, 2008)
- Page 2 1. Login 1.1 RAIDON SCSI Series Products supports graphic user interface (GUI) to operate the system. Make sure the network cable is already connected and configured to the same domain as your current related devices. The following descriptions are examples based on the default IP address: 192.168.0.1.
-
Page 3: Quick Install
2. Quick Install You can easily create a volume by using the “Quick install” function. On RAID levels 0, 1, 3, 5 and 6, the system will automatically calculate the maximum available capacity, which is subject to the number of your hard disks and currently available capacity. 2.1 Select “Quick install”... - Page 4 4.2 As shown below, please select “Disk Management”. The unformatted hard disk will appear (as shown in the red box). 4.3 Right-click the “Disk 1” to pop up three options. Please execute “Initialize Disk”.
- Page 5 4.4 Please select “OK” 4.5 Please select “OK”...
- Page 6 4.6 Please select “OK” 4.7 Please select “OK”...
- Page 7 4.8 Please select “OK” 4.9 Click “Finish” to complete the process.
- Page 8 Once the disk is formatted, you can start use the system. NOTE: RAIDON Technology, Inc. only provides technical support and service to those who buy prod ucts directly from us. For end users or those who do not buy products directly from us, please contact your distributor for prompt and better responses.
