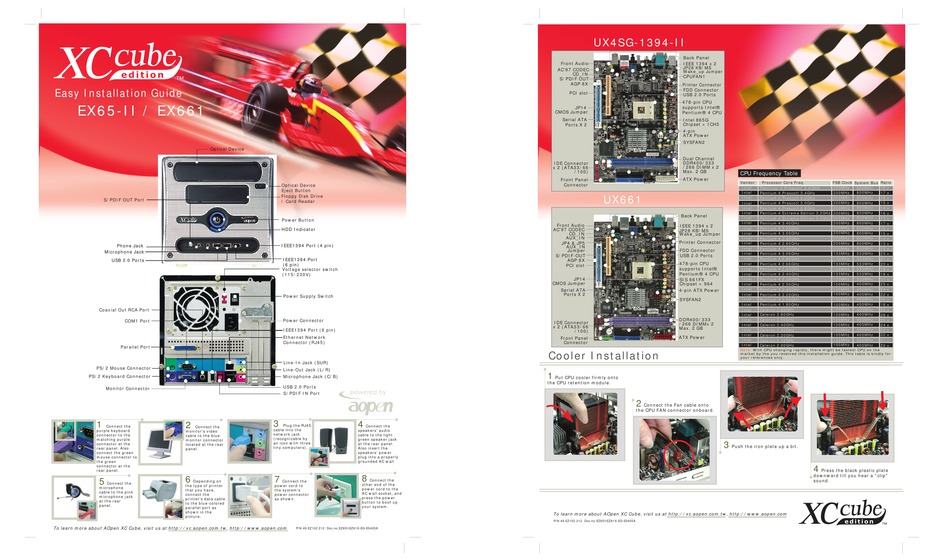

AOpen XC Cube Edition EX65-II Easy Installation Manual

Easy Installation Guide
EX65-II / EX661
Optical Device Optical Device
S/PDIF OUT Port
Phone Jack Phone Jack
Microphone Jack Microphone Jack
USB 2.0 Ports USB 2.0 Ports
Coaxial Out RCA Port
COM1 Port
Parallel Port
PS/2 Mouse Connector
PS/2 Keyboard Connector
Monitor Connector
1
2
Connect the Connect the
purple keyboard
monitor's video
connector to the cable to the blue
matching purple
monitor connector
connector at the
located at the rear
rear panel. Also panel.
connect the green
mouse connector to
the green
connector at the
rear panel.
6
5
Depending on
Connect the
the type of printer
microphone
that you have,
cable to the pink
connect the
microphone jack
printer's data cable
at the rear
to the blue-colored
panel.
parallel port as
shown in the
picture.
To learn more about AOpen XC Cube, visit us at http://xc.aopen.com.tw, http://www.aopen.com
Optical Device
Eject Button
Floppy Disk Drive
/ Card Reader
Power Button
HDD Indicator HDD Indicator
IEEE1394 Port (4 pin) IEEE1394 Port (4 pin)
IEEE1394 Port IEEE1394 Port
(6 pin) (6 pin)
Voltage selector switch
(115/230V)
Power Supply Switch
Power Connector
IEEE1394 Port (6 pin)
Ethernet Network
Connector (RJ45)
Line-In Jack (SUR)
Line-Out Jack (L/R)
Microphone Jack (C/B)
USB 2.0 Ports
S/PDIF IN Port
3
4
Plug the RJ45
Connect the
cable into the
speakers' audio
network jack cable to the light
(recognizable by
green speaker jack
an icon with three at the rear panel.
tiny computers).
Also insert the
speakers' power
plug into a properly
grounded AC wall
8
7
Connect the
Connect the
other end of the
power cord to
power cord to the
the system's
AC wall socket, and
power connector
press the power
as shown.
button to boot up
your system.
P/N:49.EZ102.212 Doc.no:EZ65IIEZ61X-EG-E0405A
UX4SG-1394-II
Back Panel
Front Audio
IEEE 1394 x 2
JP28 KB/MS
AC'97 CODEC
Wake_up Jumper
CD_IN
CPUFAN1
S/PDIF OUT
AGP 8X
Printer Connector
FDD Connector
PCI slot
USB 2.0 Ports
478-pin CPU
supports Intel®
JP14
CMOS Jumper Pentium® 4 CPU
Serial ATA
Intel 865G
Chipset + ICH5
Ports X 2
4-pin
ATX Power
SYSFAN2
Dual Channel
IDE Connector DDR400/333
x 2 (ATA33/66 /266 DIMM x 2
Max. 2 GB
/100)
ATX Power
Front Panel
Connector
UX661
Back Panel
Front Audio
IEEE 1394 x 2
AC'97 CODEC
JP28 KB/MS
CD_IN Wake_up Jumper
AUX_IN CPUFAN1
Printer Connector
JP4 & JP5
AUX_IN
Jumper FDD Connector
USB 2.0 Ports
S/PDIF-OUT
AGP 8X
478-pin CPU
PCI slot
supports Intel®
Pentium® 4 CPU
JP14
SIS 661FX
CMOS Jumper
Chipset + 964
Serial ATA 4-pin ATX Power
Ports X 2
SYSFAN2
DDR400/333
IDE Connector
/266 DIMMx 2
x 2 (ATA33/66
Max. 2 GB
/100)
ATX Power
Front Panel
Connector
Cooler Installation Cooler Installation
1
Put CPU cooler firmly onto
the CPU retention module.
2
Connect the Fan cable onto
the CPU FAN connector onboard.
3
To learn more about AOpen XC Cube, visit us at http://xc.aopen.com.tw, http://www.aopen.com
P/N:49.EZ102.212 Doc.no:EZ65IIEZ61X-EG-E0405A
CPU Frequency Table CPU Frequency Table
Vendor Processor Core Freq. FSB Clock System Bus Ratio
Intel Pentium 4 Prescott 3.6GHz 200MHz 800MHz 18 x
Intel Pentium 4 Prescott 3.4GHz 200MHz 800MHz 17 x
Intel Pentium 4 Prescott 3.2GHz 200MHz 800MHz 16 x
Pentium 4 Prescott 3.0GHz 200MHz 800MHz 15 x
Intel
Intel 200MHz 800MHz 14 x
Pentium 4 Prescott 2.8GHz
Intel Pentium 4 Extreme Edition 3.2GHz 800MHz
200MHz 16 x
Intel 800MHz
Pentium 4 Extreme Edition 3.0GHz 200MHz 15 x
Intel 200MHz 800MHz
Pentium 4 3.40GHz 17 x
200MHz
Intel Pentium 4 3.20GHz 800MHz 16 x
200MHz 800MHz
Intel Pentium 4 3.00GHz 15 x
Intel Pentium 4 2.80GHz 200MHz 800MHz 14 x
Intel Pentium 4 2.60GHz 200MHz 800MHz 13 x
Intel Pentium 4 2.40GHz 200MHz 800MHz 12 x
Intel Pentium 4 3.06GHz 133MHz 533MHz 23 x
Intel Pentium 4 2.80GHz 133MHz 533MHz 21 x
Intel Pentium 4 2.66GHz 133MHz 533MHz 20 x
Intel Pentium 4 2.53GHz 133MHz 533MHz 19 x
Pentium 4 2.40GHz 133MHz 533MHz 18 x
Intel
Intel 133MHz 533MHz
Pentium 4 2.26GHz 17 x
400MHz
Intel Pentium 4 2.50GHz 100MHz 25 x
Intel Pentium 4 2.40GHz 100MHz 400MHz 24 x
100MHz
Intel Pentium 4 2.20GHz 400MHz 22 x
Intel Pentium 4 2.00GHz 100MHz 400MHz 20 x
Intel Pentium 4 1.80GHz 100MHz 400MHz 18 x
Intel Celeron 2.80GHz 100MHz 400MHz 28 x
Intel Celeron 2.60GHz 100MHz 400MHz 26 x
Intel Celeron 2.50GHz 100MHz 400MHz 25 x
Intel Celeron 2.40GHz 100MHz 400MHz 24 x
Intel Celeron 2.30GHz 100MHz 400MHz 23 x
Intel 100MHz 400MHz 22 x
Celeron 2.20GHz
Intel 100MHz 400MHz
Celeron 2.10GHz 21 x
Intel 100MHz
Celeron 2.00GHz 400MHz 20 x
Note: With CPU changing rapidly, there might be fastest CPU on the
market by the you received this installation guide. This table is kindly for
your references only.
Push the iron plate up a bit.
4
Press the black plastic plate
downward till you hear a "clip"
sound.
