APAR AR654 User Instruction

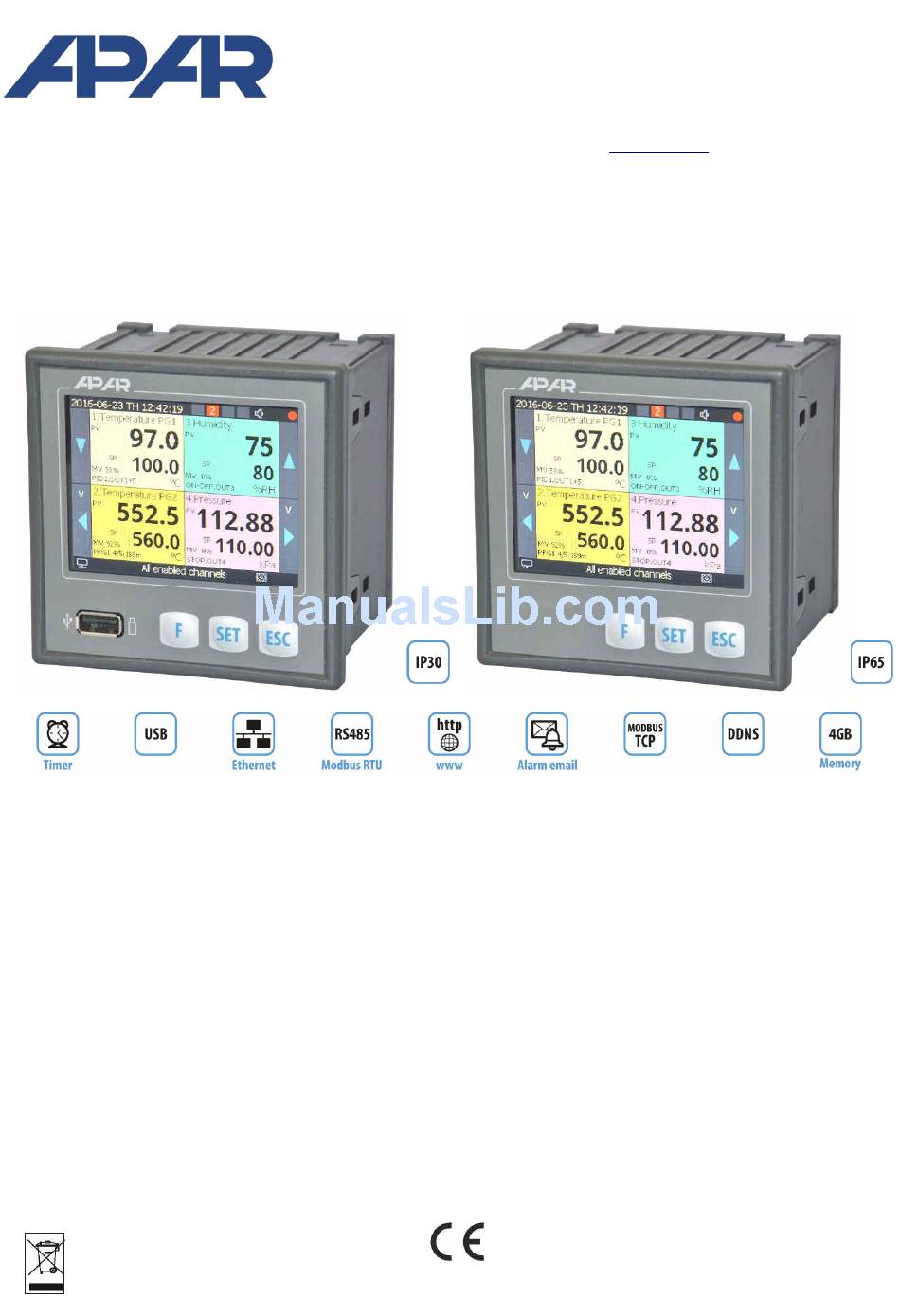

Universal four-channel controller with process recording and a timer
Hide thumbs Also See for AR654:
Table of Contents

Advertisement

Quick Links

Download this manual
APAR - SALES OFFICE
05-090 Raszyn, ul. Gałczyńskiego 6
Tel. +48 22 101-27-31, +48 22 853-49-30
E-mail:
automatyka@apar.pl
Internet:
www.apar.pl
USER INSTRUCTION
AR654
UNIVERSAL FOUR-CHANNEL
CONTROLLER WITH PROCESS RECORDING
AND A TIMER
Version 1.0.1
2017.03.24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR654 and is the answer not in the manual?

Questions and answers

Related Manuals for APAR AR654

Summary of Contents for APAR AR654

  • Page 1 APAR - SALES OFFICE 05-090 Raszyn, ul. Gałczyńskiego 6 Tel. +48 22 101-27-31, +48 22 853-49-30 E-mail: automatyka@apar.pl Internet: www.apar.pl USER INSTRUCTION AR654 UNIVERSAL FOUR-CHANNEL CONTROLLER WITH PROCESS RECORDING AND A TIMER Version 1.0.1 2017.03.24...

  • Page 2: Table Of Contents

    Thank you for choosing our product. This instruction is intended to facilitate correct operation, safe use, and taking full advantage of the controller's functionalities. Before you start the device, please read and understand this instruction. In the event of any additional questions, please contact our technical adviser. CONTENTS 1.
  • Page 3 12.4.2. SETS OF PID PARAMETERS .................... 23 12.4.2.1. PID CONTROL .....................24 12.4.2.2. AUTOTUNING OF PID PARAMETERS ............. 25 12.4.2.3 PID PARAMETERS CORRECTION ..............26 12.4.3. SETS OF PROGRAM CONTROL PARAMETERS ............26 12.4.3.1. CONFIGURATION OF AN EXAMPLE PROGRAM .......... 27 12.5.

  • Page 4: Installation Guidelines

    2. INSTALLATION GUIDELINES The device is designed so as to ensure an appropriate level of immunity to most interferences that may occur in industrial and household environments. In environments of unknown level of interferences, it is recommended to implement the following measures so as to prevent potential interference with the operation of the device: a) do not supply the device from the same lines as high-power equipment without using appropriate power line filters;...
  • Page 5 measurement channels, control parameters and status, real time, status of the outputs, recording, etc., with the possibility to show diagrams using the Google Chart API service (diagrams require constant Internet access); the DDNS service, which enables easy access over the Internet to a controller connected to a network that has no fixed public IP address, through a friendly Internet address defined by the user;...

  • Page 6: Technical Data

    available accessories: a USB memory (2 or 4 GB). NOTE: − Before you start working with the controller, make sure to become familiar with this operating instruction and perform proper electrical and mechanical installation, as well as configuration of the parameters in accordance with chapters 6, 7, and 12.
  • Page 7 Analogue - current 0/4 ÷ 20 mA (OUTPUT5 ÷ load capacity of the output Ro < 1,000 Ω, maximum OUTPUT8, mA, common earth) resolution 0.33 μA, 16 bit outputs (optional, 4 current and - voltage 0/2 ÷ 10 V (OUTPUT5 ÷ OUTPUT8, load capacity of the output Io <...

  • Page 8: Enclosure Dimensions And Installation Data

    6. ENCLOSURE DIMENSIONS AND INSTALLATION DATA panel, Incabox XT L57 Enclosure type self-extinguishing NORYL 94V-0, Material polycarbonate Enclosure dimensions 96 x 96 x 79 mm 92 x 89 mm Panel window grips on the side of the enclosure Fixing methods Conductor cross-sections 2.5 mm (supply and alarm outputs),...

  • Page 9: Connecting To A Computer And Installation Of Usb Drivers

    In the Windows 7 system, from the Device Manager level, manual installation is performed in the following manner: 1. Right-click the item “Apar Composite Device” and select “Update the driver software”, and then “Browse my computer to find the driver software”.

  • Page 10: Installation Of Software

    AR654 and a virtual COMx serial port (x - port number: 1, 2, etc.). The serial port uses the MODBUS-RTU protocol. In the internal memory two configuration text files are shown: AR654.cfg and AR654.txt (chapter 12). Communication with the device can also be established using the Ethernet and the RS485 interfaces, which are a part of the controller's standard equipment and do not require installation of additional drives.
  • Page 11 a) functions of buttons and elements of the touch panel in the measurement display mode (chapter 11) Button or touch Description [and marking in the contents of the instruction] [SET], hardware button: - input in the parameter configuration and file operations menu. If the Password protection in the Access and other options menu is switched on, then the password must be entered, chapter 12.9 - closes the message window appearing on the screen (chapter 15) PV or SP...
  • Page 12 Copy the archives to the USB memory (operation available also in the Memory and files messages options menu, chapter 12.6) Move the archives to the USB memory - the files in the controller are deleted after they messages have been copied Disable/Enable sound alarm - change of the Alarm sound signal parameter to Disabled or Enabled (chapter 12.4.1, Control and alarm options menu ->...

  • Page 13: Upper And Lower Device Status Bar

    (host), chapter 13 USB memory (pendrive) was detected measurement group name (up to 16 characters per group, taken from the AR654.txt file, chapter 12.2) view of a measurement group (control) view of a measurement group (text only) signalling of measurement...

  • Page 14: View Of A Measurement Group And Control Parameters (Control)

    (up to 16 characters) and unit (up to 4 characters) of the measurement channel (name and unit taken from the AR654.txt file, chapter 12.2), measured value (PV) with signalling of exceeded measurement range (chapters 12.3 and 15) current setpoint value (SP) for the related control/alarm output (chapter 12.4)

  • Page 15: View Of A Measurement Group (Text And Analog Indicator)

    11.5. VIEW OF A MEASUREMENT GROUP (ANALOG INDICATOR, COUNTER) Object Description status bars (chapter 11.1) measurement panel: number, name, measured value (PV), and unit of the measurement channel (chapters 11.2 and 11.3), graphic presentation of the measurement (analogue indicator) works in the range set by the parameters Bottom of the range for graphs and Top of the range for graphs (chapter 12.2) Fig.

  • Page 16: Setting Parameters And Operations On Files (Main Menu)

    AR654.cfg (numerical parameters) and AR654.txt (names, units, groups, etc.) - changes can be implemented only using a computer in the ARSOFT-CFG- WZ1 software via the USB port or the Ethernet, as well as in any text editor, e.g. Windows Notebook).

  • Page 17: Meaning Of Icons In Menu Items

    - a current configuration can also be prepared by modifying the values read from the existing files - save the created configuration in an AR654.cfg or AR654.txt file and save it in a USB memory - in the Memory and file options of the controller, import the configuration from the USB memory, chapter 12.6.
  • Page 18 USB port or the Ethernet and the ARSOFT-CFG-WZ1 software or by copying the Group j (for Name, unit and group configuration - chapter 12.9). The format of a single section in the AR654.txt file is j=1÷4) the following: [Chan1] Name=Channel 1, Unit=°C, [Group1] Name=Group 1...

  • Page 19: Configuration Of Measurement Inputs

    12.3. CONFIGURATION OF MEASUREMENT INPUTS The controller has 4 universal measurement inputs for connecting temperature sensors and electrical signals. Table 12.3. Configuration parameters in the Measurement inputs configuration menu for the selected input (numbers 1÷4) Default Range of variability of the parameter and description Parameter settings the measurement input is absent in the presentation and in...

  • Page 20: Control And Alarms Options

    12.4. CONTROL AND ALARMS OPTIONS The programmable architecture of the controller enables using it in many fields and applications. Before the operation of the device starts, it is necessary to set the parameters according to specific requirements. A detailed description of the output operation configuration is given in the following subchapters. The company setting (default configuration) are the following: outputs P1/SSR1÷...
  • Page 21 constantly switched off output Inverted /heating Fig. 12.4.1.1. Characteristics of the Heating type (for ON-OFF) Direct/cooling Fig. 12.4.1.2. Characteristics of the Cooling type (for ON-OFF) Control/alarm type Inside of the (applies to each type of Disabled band (only control: ON-OFF with alarm, not hysteresis, PID, and available for...
  • Page 22 assignment of a set of PID parameters None (ON-OFF) – control/alarm of the ON-OFF type with hysteresis to the Set point value SP1 and to the PID selection for SP1 and Setpoint value SP taken from input IN None (ON- SP=IN when the measurement is smaller than OFF)

  • Page 23: And Start Of Control

    inactive output (0 mA or 0 V) Analogue output (mA/V) Retransmission of the measured value in the scope defined by the function (2) (a description can be parameters Start and End of scale... Retransmission of the setpoint (SP) found in chapter 12.4.1.2) the control parameters are in force Control (according to control type) Output (mA/V) and...

  • Page 24: 3.Manual And Remote Control Function

    COMMUNICATION SETTINGS...) and access parameters to the email account (SMTP outgoing mail server). The configuration data of the email client is stored in the AR654.txt file. The way to access this data is described above in chapter 12.8, in Table 12.8, in item Email settings and status. In order to eventually start the configured service, the Email alarm notifications parameter must additionally be set to the Enabled value (chapter 12.4, Table...

  • Page 25: Sets Of Pid Parameters

    NOTE: Before the AR654.txt file is modified manually in a text editor, a backup copy must be made of the file (to use later in the event of problems with improper configuration and the need to restore the default settings).

  • Page 26: Autotuning Of Pid Parameters

    12.4.2.1. PID REGULATION The PID algorithm enables achieving smaller control errors (e.g. temperature) than the ON-OFF method with hysteresis. However, the algorithm requires selecting the characteristic parameters for the specific controlled object (e.g. a furnace). In order to simplify the operation, the controller is provided with the advanced PID parameter selection functions described in chapter 12.4.2.2.
  • Page 27 Pb and the associated Hysteresis H (H1 or H2) in relation to the Selected setpoint value SP, as shown in figure 12.4.2.2. Fig. 12.4.2.2. Location of the insensitivity zone for the Control type of heating and cooling. In order to avoid unnecessary activation of tuning, which may slow down the process, it is recommended to set the highest possible value of the assigned Hysteresis H, not less than 10÷30% of the range of variability of the process (e.g.

  • Page 28: Sets Of Program Control Parameters

    12.4.2.3. CORRECTION OF PID PARAMETERS The automatic tuning function correctly selects the PID regulation parameters for most processes; however, sometimes it may be necessary to correct them. Due to the strong correlation between those parameters, only one parameter should be changed in the selected Set of PID parameters and the impact of the change on the process should be observed: a) oscillations around the threshold - increase the Proportional band Pb or the Integration time constant Ti, decrease the Differentiation time constant Td (or reduce by a half the Pulsing period Tc for the output)

  • Page 29: Configuration Of An Example Program

    the time is counted for the entire section, the field stage type in Total the status shows the remaining Stage time stage time -999.9 ÷ 9999.9°C or -9999 ÷ 99999 units (1) – set value for the selected Setpoint value (SP) 50.0 °C Control type, chapter 12.4.1 0 ÷...

  • Page 30: Recording Settings

    12.5. RECORDING SETTINGS Data is archived in a text file with a csv extension in the internal memory or the USB memory; a detailed description of the storage format is given in chapter 14. Data is recorded until the memory is full (at least 2 years of continuous operation with recording of 4 channels every 1 s) and then the recording is stopped and the message “Memory full.

  • Page 31: Memory Options And Operations On Files

    (AR654.cfg) from the USB memory Configure Names copy the names of channels, groups, and units (AR654.txt) from the USB memory from the USB memory copy all settings (AR654.cfg and AR654.txt) from the USB memory return to the previous menu (higher level)

  • Page 32: Display Settings

    (3) – formatting deletes all data from the memory (with the exception of configuration files); this operation is recommended in the event of problems with accessing data NOTE: - during file operations or formatting of memory, do not shut down the power supply and do not take out the USB memory, as this may cause a loss of recorded data or the current configuration (parameters and names) - until the file operations or memory formatting is completed, recording is stopped and transmission of files with measurement data over the Ethernet from the ARSOFT-LOG-WZ3 is blocked...
  • Page 33 AR654 NetBIOS name chapter 12.6). The format of a section in the AR654.txt file is the following: [Ethernet] NetBIOSName=AR654. The changed name may not be available on the network immediately (the update time depends on the configuration of the network).

  • Page 34: Dynamic Server Dns (Ddns) Client

    NOTE: Before the AR654.txt file is modified manually in a text editor, a backup copy must be made of the file (to use later in the event of problems with improper configuration and the need to restore the default settings).

  • Page 35: Date And Time

    no sound indicating selection of elements of the screen and of Disabled hardware buttons Buttons and touch Enabled sounds the sound indicating selection of elements of the screen and of Enabled hardware buttons is active Device status - the status screen (accessible also using he buttons [F]+[ESC]) Stop/Start of recording - change of the Type of recording parameter to Off or Continuous (chapter 12.5), after the power supply is switched on, the recording is always on (continuous)

  • Page 36: Device Information

    (e.g. when the parameter Recording type = Periodic daily, new files are created every day). The file name contains the device type (AR654), the identification number (ID) (chapter 12.6), and the date and time of creation of the file, e.g. “AR654_1_2016-06-09_10-57-16.csv” (AR654, ID = 1, date = 2016-06-09, time = 10:57:16).

  • Page 37: Message And Error Signaling

    - delete unnecessary files from the internal memory or the USB memory before new recording start - save security copies of the current configuration files (AR654.cfg and AR654.txt) in external memories (USB, computer hard drives, etc.) for use in the event of problems...

  • Page 38: Rs485 Communication Interface (Acc. To Eia Rs-485)

    - do not use sharp-edged objects to work with the touch screen - avoid exposing the device to direct sunlight and other sources of intensive heat - connection of the controller to a USB port of a computer stops recording until the cable is disconnected and blocks the performance of file operations available from the menu level and transmission of files with measurement data via Ethernet from the ARSOFT-LOG-WZ3 level.

  • Page 39: Modbus-Tcp Serial Transmission Protocol

    Table 18.3. Response frame format for the READ function (minimum frame length - 7 bytes): number of bytes in the data address of function 4 or data field - register value CRC check sum the device field (max. 66*2=132 bytes) 1 byte 1 byte 1 byte...

  • Page 40: Map Of Device Registers For The Modbus-Rtu/Tcp

    20. MAP OF DEVICE REGISTERS FOR THE MODBUS-RTU/TCP Table 20. Map of registers for the MODBUS-RTU and MODBUS-TCP protocols Range of variability Register or value of the Description of register and access type address HEX register (HEX or (R- read only register, R/W - read and write register) (DEC) DEC) 0x00 (0)
  • Page 41 Configuration parameters for the measurement channel of the display numbered KP = 0 ÷ 3, 0=channel 1, 3=channel 4, chapter 12.2 0x7E + KP *7 0 ÷ 27 to be displayed Parameter Measured value (chapter 12.2) 0x7F + KP *7 -9999 ÷...

  • Page 42: User's Notes

    0x13F (319) 0 ÷ 9,999 Parameter User access password (chapter 12.9) 0x140 (320) 0 ÷ 9,999 Parameter Identification number ID (chapter 12.6) 0x141 (321) 0 ÷ 60 Parameter Screen backlight time (chapter 12.7) 0x142 (322) 20 ÷ 100 Parameter Brightness of the screen (chapter 12.7) 0x143 (323) 0 ÷...
