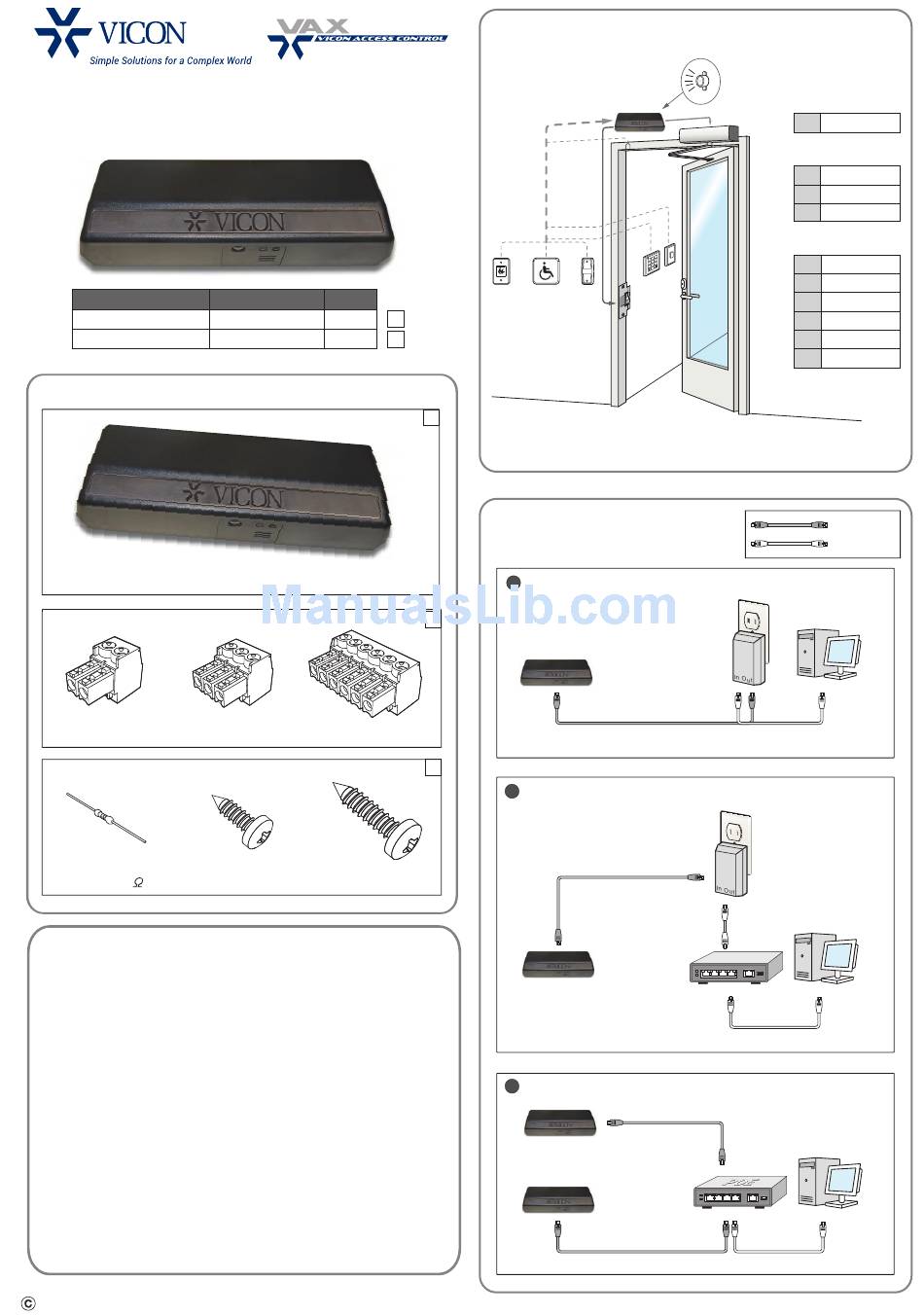

Vicon VAX-2D-REX Quick Start Manual

VAX Two-Door Controller
Quick Start Guide
Part Number
VAX-2D-REX
VAX-2D
Package Contents
VAX Two-Door Controller - x1
2P Connector x 4 3P Connector x 2
Supervisor Input
Resistor(1K ) x 8 Cover screw x 2
UL 294/S319/Safety EN 60950-1, A2 Compliance Notices
This product complies with the following UL294 Access Control Performance Levels when installed as part of the Listed VAX system :
Endurance Level IV (100,000c) Line Security Level I
Wiring methods shall be in accordance with the National Electrical Code (ANSI/NFPA70), CSA C22.1, Canadian Electrical Code,
Part I, Safety Standard for Electrical Installations, Part I, local codes, and the authorities having jurisdiction. All interconnecting
devices must be UL Listed, low-voltage Class 2 power limited. The minimum permissible wire size to be used shall not be less than
26 AWG (0.24 mm2).
Products have been evaluated for "Indoor Use" only, and to be installed within the "protected" or "restricted" area. This product is
not intended for outside wiring as covered by Article 800 in the National Electrical Code, NFPA 70. Products are not intended to be
installed or mounted in air-handling spaces. Products are intended to be installed by manufacturer trained service installers only.
All recommended connected peripherals such as power supplies, UPS/battery backups, PoE switches, electrified strikes, readers
require to be UL Listed.
Please refer to the VAX UL Reference document for more comprehensive information available downloadable from our website.
Hard copy of the VAX UL Reference Manual document is available; please call
a. To shut down the unit/controller cards, disconnect the network cable from the unit.
b. Only a qualified person should install and handle the system.
c. The unit gets up to 48 VDC from any PoE switch it is used with.
d. The VAX units are not connected to the electric line.
e. Grounding is not required.
f. A nylon cable gland needs to be installed in the access hole where the cables enter the case.
g. Units powered by PoE must use a detachable network cable.
h. This is an indoor unit with an operating temperature range of 32° – 122° F (0° – 50° C).
VICON INDUSTRIES INC.
Vicon part number: 8009-8274-20-03 Rev. 618
Motion Sensor Color
Yes Black
No Black
6P Connector x 2
Wall screw x 4
Installation Example
A
H
3
2
1 6
5
4 9
8 J
7
0
R2
I R1
G
B
Networking Examples
1 1 Controller - PoE Injector - PC (Direct)
2 2 Controller - PoE Injector - Router - PC
3 3
Controllers - PoE Router - PC
D
Controller
C
A
Two-Door
Outputs
B
Electric Strike
C
Auto Door Opener
D
Extra Loud Buzzer*
Inputs
G
Handicap Open
H
Door Contact
I
Emergency Alarm
J
Doorbell
R1
Inside Reader
R2
Outside Reader
*Optional Internal Extra Loud Buzzer
: PoE Powered
: Normal
LAN INTERNET
* LAN or Internet
LAN INTERNET
* LAN or Internet
