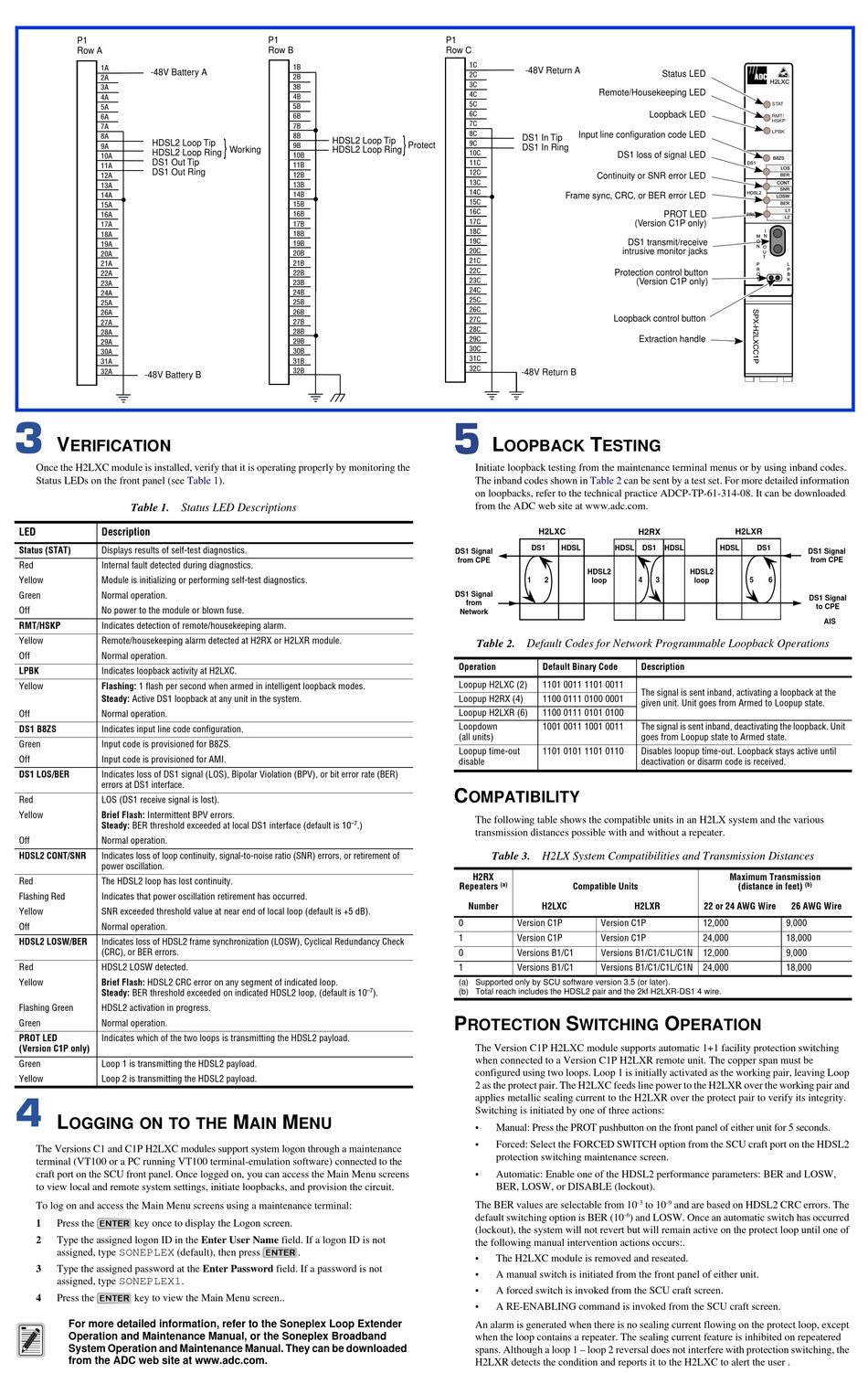

ADC Soneplex H2LXC Quick Installation Manual page 2

Versions c1 and c1p

Advertisement

P1
Row A
1A
-48V Battery A
2A
3A
4A
5A
6A
7A
8A
HDSL2 Loop Tip
9A
HDSL2 Loop Ring
10A
DS1 Out Tip
11A
DS1 Out Ring
12A
13A
14A
15A
16A
17A
18A
19A
20A
21A
22A
23A
24A
25A
26A
27A
28A
29A
30A
31A
32A
-48V Battery B
V
ERIFICATION
Once the H2LXC module is installed, verify that it is operating properly by monitoring the
Status LEDs on the front panel (see
Table 1. Status LED Descriptions
LED
Description
Status (STAT)
Displays results of self-test diagnostics.
Red
Internal fault detected during diagnostics.
Yellow
Module is initializing or performing self-test diagnostics.
Green
Normal operation.
Off
No power to the module or blown fuse.
RMT/HSKP
Indicates detection of remote/housekeeping alarm.
Yellow
Remote/housekeeping alarm detected at H2RX or H2LXR module.
Off
Normal operation.
LPBK
Indicates loopback activity at H2LXC.
Yellow
Flashing: 1 flash per second when armed in intelligent loopback modes.
Steady: Active DS1 loopback at any unit in the system.
Off
Normal operation.
DS1 B8ZS
Indicates input line code configuration.
Green
Input code is provisioned for B8ZS.
Off
Input code is provisioned for AMI.
DS1 LOS/BER
Indicates loss of DS1 signal (LOS), Bipolar Violation (BPV), or bit error rate (BER)
errors at DS1 interface.
Red
LOS (DS1 receive signal is lost).
Yellow
Brief Flash: Intermittent BPV errors.
Steady: BER threshold exceeded at local DS1 interface (default is 10
Off
Normal operation.
HDSL2 CONT/SNR
Indicates loss of loop continuity, signal-to-noise ratio (SNR) errors, or retirement of
power oscillation.
Red
The HDSL2 loop has lost continuity.
Flashing Red
Indicates that power oscillation retirement has occurred.
Yellow
SNR exceeded threshold value at near end of local loop (default is +5 dB).
Off
Normal operation.
HDSL2 LOSW/BER
Indicates loss of HDSL2 frame synchronization (LOSW), Cyclical Redundancy Check
(CRC), or BER errors.
Red
HDSL2 LOSW detected.
Yellow
Brief Flash: HDSL2 CRC error on any segment of indicated loop.
Steady: BER threshold exceeded on indicated HDSL2 loop, (default is 10
Flashing Green
HDSL2 activation in progress.
Green
Normal operation.
PROT LED
Indicates which of the two loops is transmitting the HDSL2 payload.
(Version C1P only)
Green
Loop 1 is transmitting the HDSL2 payload.
Yellow
Loop 2 is transmitting the HDSL2 payload.
L
OGGING ON TO THE
The Versions C1 and C1P H2LXC modules support system logon through a maintenance
terminal (VT100 or a PC running VT100 terminal-emulation software) connected to the
craft port on the SCU front panel. Once logged on, you can access the Main Menu screens
to view local and remote system settings, initiate loopbacks, and provision the circuit.
To log on and access the Main Menu screens using a maintenance terminal:
ENTER
1
Press the
key once to display the Logon screen.
2
Type the assigned logon ID in the Enter User Name field. If a logon ID is not
SONEPLEX
assigned, type
(default), then press
3
Type the assigned password at the Enter Password field. If a password is not
assigned, type
SONEPLEX1
.
ENTER
4
Press the
key to view the Main Menu screen..
For more detailed information, refer to the Soneplex Loop Extender
Operation and Maintenance Manual, or the Soneplex Broadband
System Operation and Maintenance Manual. They can be downloaded
from the ADC web site at www.adc.com.
P1
Row B
1B
2B
3B
4B
5B
6B
7B
8B
HDSL2 Loop Tip
}
9B
Working
HDSL2 Loop Ring
10B
11B
12B
13B
14B
15B
16B
17B
18B
19B
20B
21B
22B
23B
24B
25B
26B
27B
28B
29B
30B
31B
32B
Table
1).
M
M
AIN
ENU
ENTER
.
P1
Row C
1C
2C
3C
4C
5C
6C
7C
8C
}
9C
Protect
10C
11C
12C
13C
14C
15C
16C
17C
18C
19C
20C
21C
22C
23C
24C
25C
26C
27C
28C
29C
30C
31C
32C
L
OOPBACK
Initiate loopback testing from the maintenance terminal menus or by using inband codes.
The inband codes shown in
on loopbacks, refer to the technical practice ADCP-TP-61-314-08. It can be downloaded
from the ADC web site at www.adc.com.
DS1 Signal
from CPE
DS1 Signal
from
Network
Table 2. Default Codes for Network Programmable Loopback Operations
Operation
Loopup H2LXC (2)
Loopup H2RX (4)
Loopup H2LXR (6)
Loopdown
(all units)
Loopup time-out
disable
C
OMPATIBILITY
The following table shows the compatible units in an H2LX system and the various
–7
.)
transmission distances possible with and without a repeater.
Table 3. H2LX System Compatibilities and Transmission Distances
H2RX
(a)
Repeaters
Number
0
1
0
1
(a) Supported only by SCU software version 3.5 (or later).
–7
(b) Total reach includes the HDSL2 pair and the 2kf H2LXR-DS1 4 wire.
).
P
ROTECTION
The Version C1P H2LXC module supports automatic 1+1 facility protection switching
when connected to a Version C1P H2LXR remote unit. The copper span must be
configured using two loops. Loop 1 is initially activated as the working pair, leaving Loop
2 as the protect pair. The H2LXC feeds line power to the H2LXR over the working pair and
applies metallic sealing current to the H2LXR over the protect pair to verify its integrity.
Switching is initiated by one of three actions:
Manual: Press the PROT pushbutton on the front panel of either unit for 5 seconds.
Forced: Select the FORCED SWITCH option from the SCU craft port on the HDSL2
protection switching maintenance screen.
Automatic: Enable one of the HDSL2 performance parameters: BER and LOSW,
BER, LOSW, or DISABLE (lockout).
The BER values are selectable from 10
default switching option is BER (10
(lockout), the system will not revert but will remain active on the protect loop until one of
the following manual intervention actions occurs:.
The H2LXC module is removed and reseated.
A manual switch is initiated from the front panel of either unit.
A forced switch is invoked from the SCU craft screen.
A RE-ENABLING command is invoked from the SCU craft screen.
An alarm is generated when there is no sealing current flowing on the protect loop, except
when the loop contains a repeater. The sealing current feature is inhibited on repeatered
spans. Although a loop 1 – loop 2 reversal does not interfere with protection switching, the
H2LXR detects the condition and reports it to the H2LXC to alert the user .
-48V Return A
Status LED
Remote/Housekeeping LED
Loopback LED
Input line configuration code LED
DS1 In Tip
D 1 In Ring
S
D 1 loss of signal LED
S
Continuity or SNR error LED
Frame sync, CRC, or BER error LED
PROT LED
(Version C1P only)
D 1 transmit/receive
S
intrusive m
onitor jacks
Protection control button
(Version C1P only)
Loopback control button
Extraction handle
-48V Return B
T
ESTING
Table 2
can be sent by a test set. For more detailed information
H2LXC
H2RX
DS1
HDSL
HDSL
DS1
HDSL
HDSL2
1
2
loop
4
3
Default Binary Code
Description
1101 0011 1101 0011
The signal is sent inband, activating a loopback at the
1100 0111 0100 0001
given unit. Unit goes from Armed to Loopup state.
1100 0111 0101 0100
1001 0011 1001 0011
The signal is sent inband, deactivating the loopback. Unit
goes from Loopup state to Armed state.
1101 0101 1101 0110
Disables loopup time-out. Loopback stays active until
deactivation or disarm code is received.
Compatible Units
H2LXC
H2LXR
Version C1P
Version C1P
Version C1P
Version C1P
Versions B1/C1
Versions B1/C1/C1L/C1N
Versions B1/C1
Versions B1/C1/C1L/C1N
S
O
WITCHING
PERATION
-3
-9
to 10
and are based on HDSL2 CRC errors. The
-6
) and LOSW. Once an automatic switch has occurred
H2LXC
STAT
RMT/
HSKP
LPBK
B8ZS
DS1
LOS
BER
CONT
SNR
HDSL2
LOSW
BER
L1
PROT
L2
I
N
M
O
N
O
U
T
P
L
R
P
O
B
T
K
H2LXR
HDSL
DS1
DS1 Signal
from CPE
HDSL2
loop
5
6
D 1
S Signal
to CPE
AIS
Maximum Transmission
(b)
(distance in feet)
22 or 24 AWG Wire
26 AWG Wire
12,000
9,000
24,000
18,000
12,000
9,000
24,000
18,000
