Planet FSD-1603 User Manual

1. Package Contents

Check the contents of your package for following parts:
● Fast Ethernet Switch x 1
● User's Manual x 1
● Power Adapter x 1
● Rubber Feet x 4
If any of these are missing or damaged, please contact your
dealer immediately, if possible, retain the carton including
the original packing material, and use them against to
repack the product in case there is a need to return it to us
for repair.
- 1 -

2. Product Features

● Comply with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-
TX Ethernet standards
● 5/8/16-Port 10/100Mbps Fast Ethernet ports
● Features Store-and-Forward mode with wire-speed
filtering and forwarding rates
● Hardware based 10/100Mbps, half / full duplex, flow
control and auto-negotiation
● IEEE 802.3x flow control for full duplex operation and
Backpressure for half duplex operation
● Integrated address look-up engine, support 2/8K absolute
MAC addresses
● 384K / 448K bits packet buffer memory (FSD-503/803)
● One power on/off button for energy saving (FSD-503/803)
● 4Mbit on-chip frame buffer (FSD-1603)
● Automatic address learning and address aging
● Supports Auto MDI/MDI-X function
● Support CSMA/CD protocol
● External power adapter 12V 0.5A (FSD-503/803)
● External power adapter 12V 1A (FSD-1603)
● FCC, CE class A compliant
- 2 -

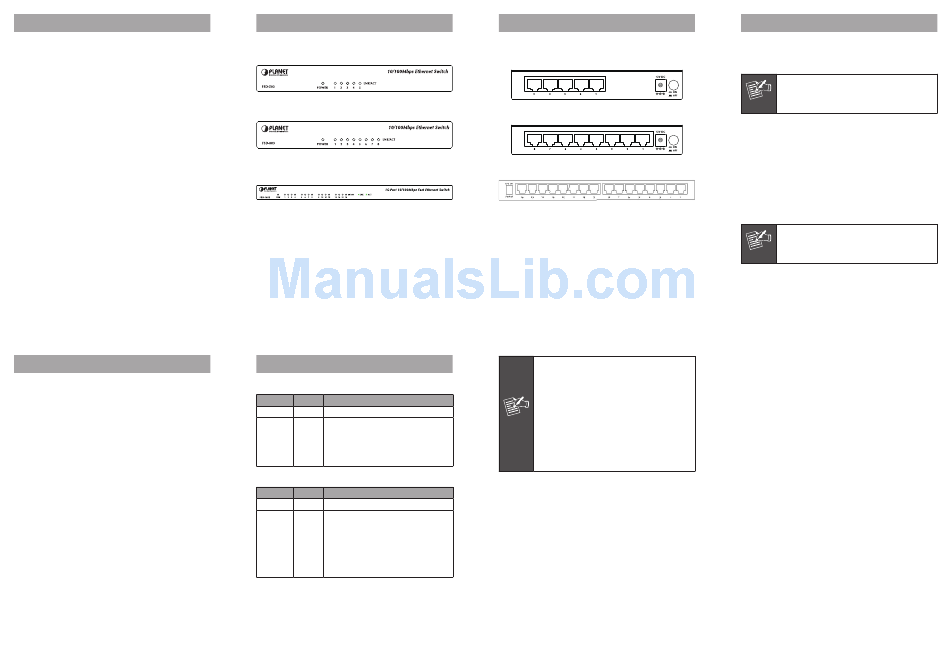

3. Switch Front Panel

Figure 1-1 & 1-2 & 1-3 shows a front panel of FSD-503 /
FSD-803 / FSD-1603.
Figure 1-1 FSD-503 front panel
Figure 1-2 FSD-803 front panel

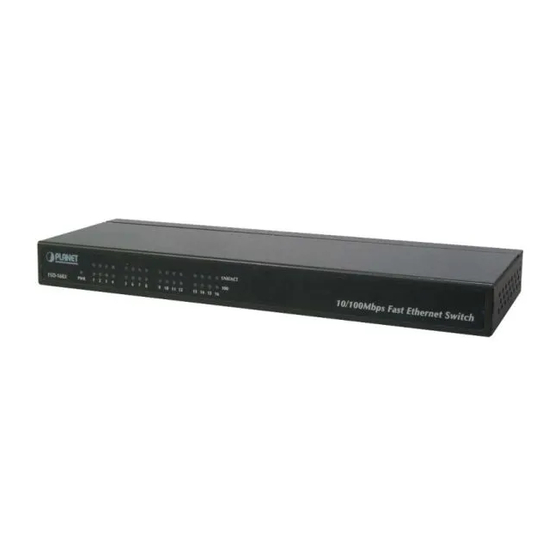

Figure 1-3 FSD-1603 front panel
- 3 -

4. LED Indicators

FSD-503/FSD-803
LED Color Function
PWR Green Lit: Power on.
Lit: indicate the link through that port
is successfully established.
LNK/ACT Green Blink: indicate that the Switch is
actively sending or receiving
data over that port.
FSD-1603
LED Color Function
PWR Green Lit: Power on.
Lit: indicate that the port is operating
at 100Mbps.
Off: indicate that the port is operating
10/100 Green at 10Mbps.
Blink: indicate that the Switch is
actively sending or receiving
data over that port.
- 4 -

5. Switch Rear Panel

Figure 1-4 & 1-5 & 1-6 shows a rear panel of FSD-503 /
FSD-803 / FSD-1603.
Figure 1-4 FSD-503 rear panel
Figure 1-5 FSD-803 rear pane
Figure 1-6 FSD-1603 rear panel
- 5 -
1. The device is a power-required device, it
means, it will not work till it is powered. If
your networks should active all the time,
please consider using UPS (Uninterrupted
Power Supply) for your device. It will
prevent you from network data loss or
network downtime.
Power
2. In some area, installing a surge
Notice
suppression device may also help to protect
your Switch from being damaged by
unregulated surge or current to the Switch
or the power adapter.
- 6 -

6. Installing the Switch

This part describes how to install your Fast Ethernet Switch
and make connections to it. Please read the following topics
and perform the procedures in the order being presented.
This Switch does not need software
configuration.
Note
Desktop Installation
To install the Switch on desktop, simply follow the next
steps:
Step 1: Attach the rubber feet to the recessed areas on
the bottom of the Switch.
Step 2: Place the Switch on desktop near an AC power
source.
Step 3: Keep enough ventilation space between the Switch
and the surrounding objects.
When choosing a location, please keep in
mind the environmental restrictions discussed
in Chapter 7. Product Specifications.
Note
- 7 -
Step 4: Connect your Switch to network devices.
A. Connect one end of a standard network cable
to the 10/100 RJ-45 ports on the Back of the
Switch.
B. Connect the other end of the cable to the
network devices such as printer servers,
workstations or routers...etc.
Step 5: Supply power to the Switch.
A. Connect one end of the power cable to the
Switch.
B. Connect the 12V DC power adapter to a
standard wall outlet.
When the Switch receives power, the Power LED should
remain solid Green.
