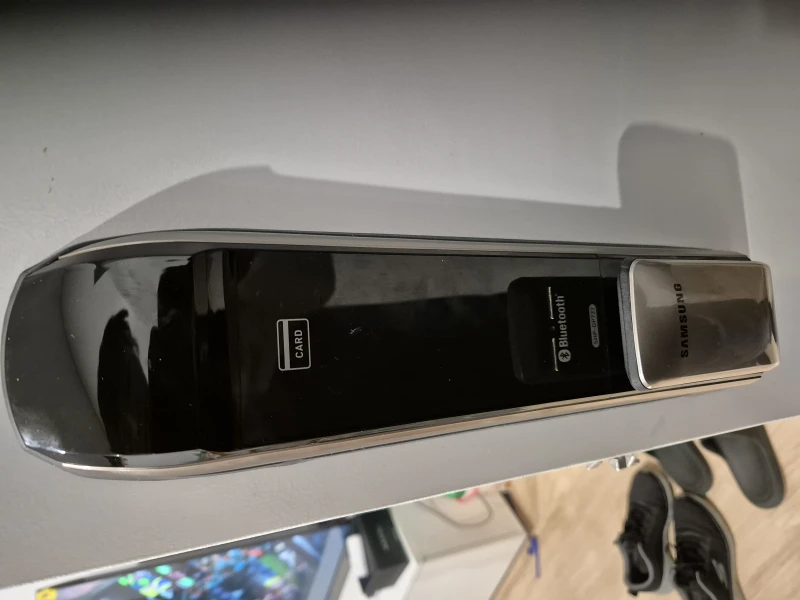

SHP-DP727
Convenient Opening
Easy push/pull handle access
Welcome Function
When a user gets close to the door lock,
the authorization standby mode will
automatically activate.
Silent-Mode Function
When going in or out, the sound of the
key entering and door opening will be
suspended.
Automatic Card Reading Function
When a card touches the reader,
the reader will conveniently recognize the card.
Double Authorization
Requires card & password combination to open
Security Assurance Function
When someone is inside the house,
authorization for entry from the outside
will be prohibited.
Built-in Fire Detection
Generates alarm in case of a fire
Security Function
Prevents intrusion from the outside
Smartphone Interworking function
Conveniently open the door through the Bluetooth
function of a smart phone
www.samsungsds-nss.com/en

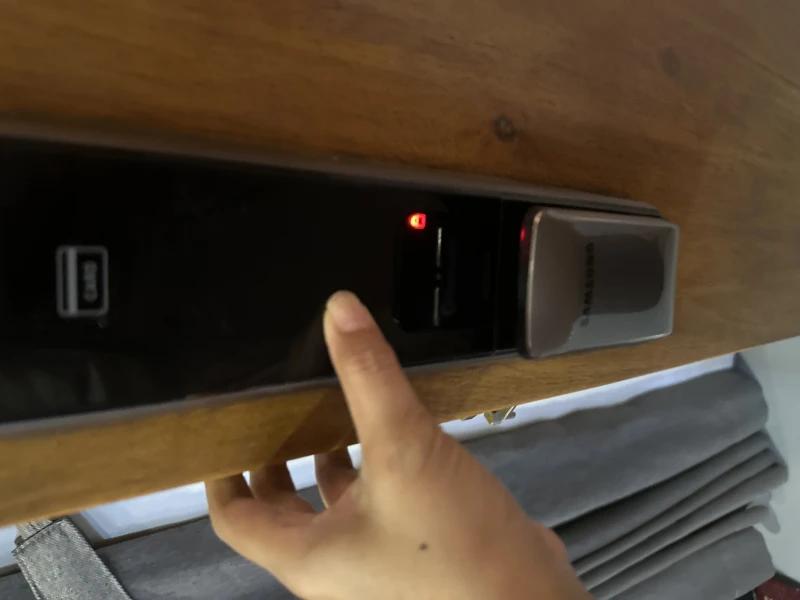

Opening the Door from Outside with a Password
When purchased, the product is set to Multi-leveled Security Code Entry Mode
initially. Please refer to "Multi-leveled Security Code Entry Mode setting" for
Common Mode setting.
※ Silent Mode
Before entering the password, press the [] button and enter the password, then
both the sound of the key entering and the door opening will be suspended. It is a
useful function if you do not want to disturb neighbors when you go in and out at
night.
1. Multi-leveled Security Code Entry Mode
Touching [Number
When two arbitrary
When the numbers on the
Pad] will light up the
buttons are lighted,
number pad are lighted, enter
number pad.
press the buttons in
the password and press the []
order.
button.
2. Common Mode
Touching [Number Pad] will
Enter the password when the
light up the number pad.
number pad is lighted, and press
the [] button.
Password must be entered after the light is on, and if does not, touch
[Number Pad] and re-enter.
Note
To cancel, press [
] button and re-enter.
If the password is wrong 5 times, "peep" warning alarm will sound 20 times
and the system will shut-down for about 3 minutes. When malfunction
happens, "beep" will sound every 10 seconds, and stop mode will be
turned off automatically after 3 minutes with multiple 'beeps'.
Opening the Door from Outside with a Card or
Key Tag
The door can be opened from outside using a card or key tag.
Place the registered card or key tag on the card reader.
Placing the Card or Key Tag on the Card Reader
Success:
DING DONG DENG DONG
Fail:
DING DONG DING DONG

Safety Cautions

This section contains important information to ensure the user's
safety and prevent potential damage to property. Please, read
this section carefully and use the product accordingly.
Warning
• The user shall not install or repair the
product without authorization.
• Do not install the product in the place
where the gap between the door and the
frame is 5mm or more.
• Make sure that no unauthorized person
has the access to the password.
• Do not operate the product with wet
hands, and keep liquids such as water
or drinks away from the product, or the
product may malfunction or be damaged.
• Do not use the excessive force or sharp
objects to push the lockbuttons, as this
can damage the product.
• Make sure that the door is completely
closed when going outside. The
manufacturer does not assume the
responsibility for any harm caused by
engagement of the lock on an improperly
closed door.
Product Components
The product components used may vary depending on the installation
environment.
Outer Body
Key Tag (For B2C Only) (2EA)
User Manual, Product Warranty
'AA' Batteries (LR6)
Emergency Key
GC68-02162A ED:01
Opening the Door from the Inside
Available in both a push-pull or pull-push
Depending on the direction of the door installed in the residence, customer can
choose from either push-pull type or pull-push type on purchase.
Push
Success:
Closing the Door from the Inside
DING DONG DENG DONG
Fail:
Automatic
DING DONG DING
Locking Setting
DONG
Manual
Locking Setting
● To check if the door is locked from the inside, press the security button briefly;
the red LED will flash if the door is locked and the blue LED will blink if the door
is unlocked.
Note
● For 5 seconds after the door is closed, the Bluetooth authentication mode is
Success:
not turned on even though you approach the door lock.
DING DONG DENG DONG
(Note that the Bluetooth mode is turned on when you touch the number pad.)
Fail:
Initialization (Password,
DING DONG DING
DONG
All registered data (password, Bluetooth, card, key tag) are deleted.
After initialization, the password is set to '1234', and the registered card, key tag
data are erased. Please register a new password after initialization.
1. Pressing the [Register] Button
(from the inside)
Press and hold the [Register]
button for 5 seconds.
Activation/Deactivation of the Bluetooth Mode
After the Bluetooth mode is activated, accessing the door lock from the outside
or touching its number pad can authenticate the registered Bluetooth smart-
phone to open the door. The Bluetooth mode is activated by default.
Place the card or key tag on
Open the battery cover, and press the
[Register] button shortly.
the card reader.
The door will be opened after
● For the information on the pair/unfair of a Bluetooth smart phone,
1 second.
see the description of application use.
● Only smart phones with iOS 7.1 or higher and Android 4.3 or
Note
higher support this function. Whether to support Bluetooth, see
4
the App description.
• Please do not hang on the product or pull it.
• Long-term exposure to direct sunlight
may cause a crack on its touch pad.
Avoid exposure to direct sunlight during
installation.
• During battery replacement, use a new one
instead of the existing battery.
• Be sure to correctly match the poles (+/-)
when installing the batteries. Install the
batteries with the correct poles (+/-).
• Do not use water, benzene or alcohol when
cleaning the product, as these fluids can
cause product malfunction.
• Replace the batteries within 1 week after
the battery replacement alarm sounds.
• Interference in wireless communication may
occur when this product is used.
• According to the wireless communication
environment, its battery may consume
much.
Mortise
Mortise
Strike
(SHS-AML320)
Mortise
Strike
Strike
(SHS-AML220)
box
Strike
Strike box
(For B2C Only)
Handle Shaft Spring
Handle Shaft, Installation Screws
Installation Manual(For B2C Only)
Pull
Pull
Push
● Please be careful
Or
not to trap your
hand during use.
Warning
The door is automatically locked 1 seconds after
the door is closed.
The door is locked when the [Close]
button is pressed.
Bluetooth,
Card, Key Tag)
2. Entering the Numbers for
Initialization (from the outside)
DING DONG →
DING DING →
Success:
DING DING
DING DONG DENG
DING DING
Fail:
DING DONG DING DONG
When the number pad is lighted, enter
'4560852580' and then press the [
DING DONG DENG
DING DONG
[11] button: Activate the Bluetooth
mode.
[00] button: Deactivate the Blue-
tooth mode.
Press the [11] or [00] button and the [] button
to activate or deactivate the Bluetooth mode.
Outer Body Parts
Number Pad
Unlighted
Touch Number Pad
Entry Complete/
Switch Button
Replacement
Inner Body Parts
Battery Cover
Registration
Button
CLOSE Button
Mortise
Inner Body
SHS-AML320
2
Pairing of a smart phone
Up to eight compatible smart phones can be paired. To pair multiple smart phones,
turn off the Bluetooth of a paired smart phone, and pair another smart phone. If a
Bluetooth smart phone registered is lost, replaced, or repaired and its information
cannot be deleted from the door lock, the door lock should be initialized.
Download "sHome
Turn on the Blue-
Doorlock" from
tooth smart phone.
App Store.
Success: DING DONG DENG
 DING DONG
Fail: DING DONG DING DONG
Enter the password and
press the [] button.
Card and Key Tag Registration
Up to 20 cards, including the key tag, can be registered.
(Only ISO14443 A Type is available.)
1. Pressing the [Register]
Button (from the inside)
DING DONG
Open the battery cover of the inner
body and briefly press the [Register]
button.
3. Placing the Card or Key Tag
on the Card Reader (from the
] button.
outside)
DING DONG
CARD
DENG
Place the card or key tag to be
registered on the card reader of the
outer body. You will know the card
or key tag has been registered when
"DING DONG DENG" sounds.
● To register multiple cards or key tags, lightly place another card or key
tag to the card reader within 20 seconds after registering the previous
Warning
card or key tag.
5
Number Pad Lighted
Card Reader
Proximity Sensor
Number Pad
Away Security
Setup
Silent Mode
Emergency Alert
Light
Battery
Double Lock Light
Time Alert
External Power
Contact Part
Reset Switch
Emergency
Keyhole
The Battery Cover Release
Button
(After pressing the battery cover
release button, pull towards the
front, and then the battery cover
will open.)
1.5V AA Batteries
Sound Control Switch
Built-in Wireless Module (Optional)
Auto/Manual
Locking Switch
Deadbolt
Latch bolt
Open-door sensor
SHS-AML220
3
DING
DING
DONG
DONG
Open the battery
If the number pad
cover and press the
lights, enter '88' and
[REG] button shortly.
press the [] button.
Success: DING DONG DENG
Fail: DING DONG DING DONG
The smart
Enter the 6-digit paring code
phone is
displayed in the App of the
paired.
phone, and press the [] button.
2. Entering the Password
(from the outside)
DING DONG
DENG, DING
DING
Enter the password when the number pad
is lighted, and press the [
] button.
4. Confirming Card or Key Tag
Registration (from the outside)
CARD
Place the registered card or key tag to
the card reader on the outer body.
6
