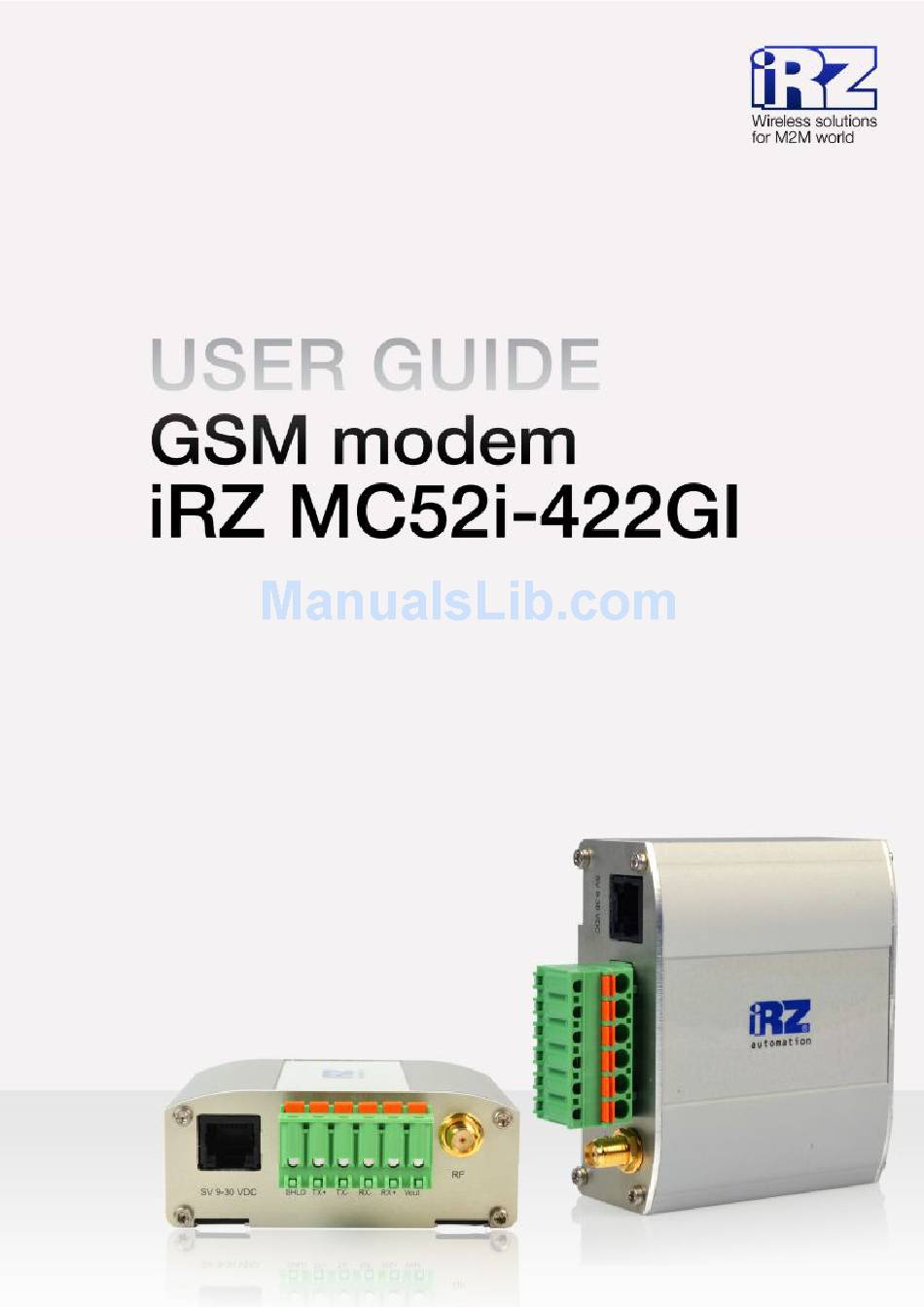

iRZ MC52i-422GI User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC52i-422GI and is the answer not in the manual?

Questions and answers

Related Manuals for iRZ MC52i-422GI

Summary of Contents for iRZ MC52i-422GI

  • Page 2: Table Of Contents

    Contents 1. Introduction ..........................4 1.1. Document description ........................4 1.2. Service data ........................... 4 1.3. Safety rules ............................ 4 2. General Information ........................ 5 2.1. Purpose............................5 2.2. Set ..............................5 2.3. Features............................5 2.4. Appearance ............................ 7 2.5. Interfaces ............................8 2.5.1.
  • Page 3 Tables Table 2.5.1: Terminal connector clamps .................... 8 Table 2.5.2: Using connector power pins ................... 9 Table 2.6.1: Connection status LED (green) ..................10 Table 2.6.2: Power LED (red) ......................10 Figures Fig. 2.4.1. Front view ......................... 7 Fig. 2.4.2. Back view.......................... 7 Fig.

  • Page 4: Introduction

    1. Introduction 1.1. Document description This manual is intended for experienced PC users. It describes the device and the operation of the GSM modem iRZ MC52i-422GI. 1.2. Service data Document version Issue date 2.11 08.30.2013 Prepared by V.N. Golovin Approved by P.A.

  • Page 5: General Information

    2. General Information 2.1. Purpose iRZ MC52i-422GI modem is an industrial GSM modem for receiving and transmitting data, text messages and faxes. It is perfectly suited both for providing mobile access to the Internet and for industrial applications including telemetry, wireless data collection from sensors, remote monitoring, control, and signaling.
  • Page 6 Physical characteristics: Dimensions not exceeding 76х85х30mm; Weight not exceeding 130g; Operating temperatures from -40°С to +65°С; Storage temperatures from -50°С to +75°С Interfaces: TJ6-6P6C for RJ12 power connector; Terminal connector for connecting the communication cable with RS422 interface; SMA Jack (female) for connecting the GSM antenna...

  • Page 7: Appearance

    2.4. Appearance MC52i-422GI modem is a compact device in an aluminum case. Its appearance is displayed on Fig. 2.4.1 and Fig. 2.4.2. Fig. 2.4.1. Front view Fig. 2.4.2. Back view The numbers on Fig. 2.4.1 and Fig. 2.4.2 stand for:...

  • Page 8: Interfaces

    2.5. Interfaces 2.5.1. Terminal connector This connector is used for communication with a controlling device, interface RS422. The AT-commands are used to control the modem operation (see the module description). Factory settings: speed – 9600 bit/s, data bit – 8, parity – none, stop bit – 1. This modem is mainly used for remote queries on CSD channel;...

  • Page 9: Power Connector

    2.5.2. Power connector TJ6-6P6C for RJ12 power connector is used to power the device. Fig. 2.5.2. Power connector Table 2.5.2: Using connector power pins Signal Purpose + 12V The positive pole of DC supply voltage. Fused circuit and overvoltage protection (when input voltage of over 30V is applied) and reverse polarity. Not used Not used Not used...

  • Page 10: Modem Status Display

    2.6. Modem status display LED is used to indicate the connection status. This function can be disconnected by a corresponding AT-command. Table 2.6.1: Connection status LED (green) LED mode Conditional indication Operation mode display ○ Turned off Modem is turned off or emergency situation, power saving mode, ALARM mode ●●●●●●○○○○○○...

  • Page 11: Connecting And Configuring

    3.2. Control, rebooting, and connecting The modem is controlled using standard and expanded AT-commands. For more detail see AT-commands description for the GSM module. You can find additional information and support at www.irz.net. The modem can be rebooted using one of the following ways: By using AT-command “AT+CFUN=1,1”...

  • Page 12: Support

    4. Support New document versions and software are available using: Company website: www.irz.net Telephone: +86 755 8832 9100 E-mail: support@irz.net Our support team is ready to assist you with any questions you might have when installing, configuring or solving issues with our equipment.
