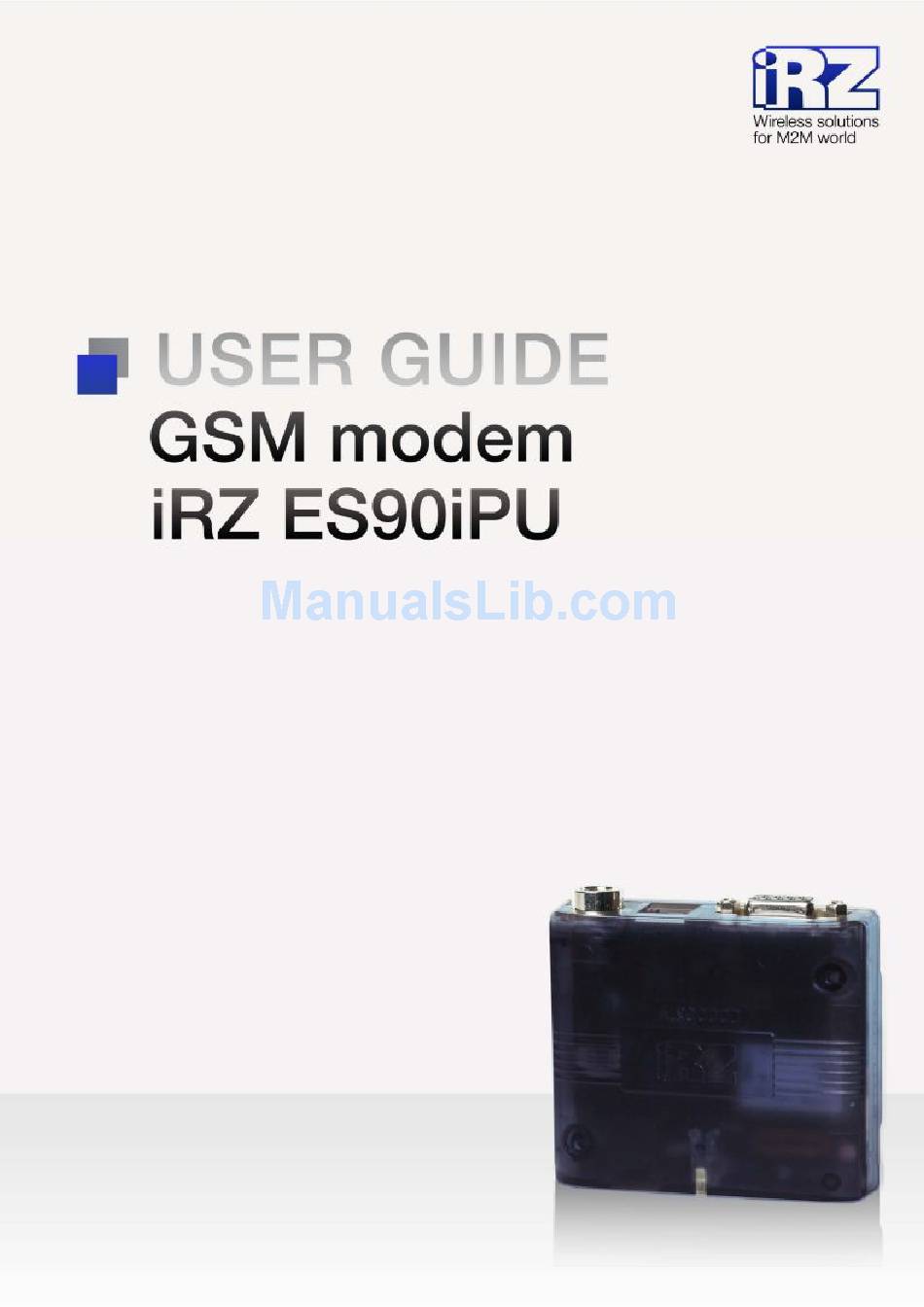

iRZ ES90iPU User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES90iPU and is the answer not in the manual?

Questions and answers

Related Manuals for iRZ ES90iPU

Summary of Contents for iRZ ES90iPU

  • Page 2: Table Of Contents

    Contents 1. Introduction ..........................4 1.1. Document description ........................4 1.2. Service data ........................... 4 1.3. Safety rules ............................ 4 2. General Information ........................ 5 2.1. Purpose............................5 2.2. Set ..............................5 2.3. Features............................5 2.4. Appearance ............................ 7 2.5. Interfaces ............................8 2.5.1.
  • Page 3 Таблицы: Table 2.5.1: Using DB9 connector pins....................8 Table 2.5.2: Using connector power pins ................... 9 Table 2.5.3: Using USB connector pins ................... 10 Table 2.6.1: Connection status LED (green) ..................11 Table 2.6.2: Emergency LED (red) ....................11 Рисунки: Fig.

  • Page 4: Introduction

    1. Introduction 1.1. Document description This manual is intended for experienced PC users. It describes the device and the operation of the GSM modem iRZ ES90iPU. 1.2. Service data Document version Issue date 1.0.6 06.26.2015 Prepared by V.N. Golovin Approved by P.A.

  • Page 5: General Information

    2. General Information 2.1. Purpose The 3G modem iRZ ES90iPU is an industrial GSM modem for receiving and transmitting data via GSM channel. It is perfectly suited both for providing mobile access to the Internet and for industrial applications including telemetry, wireless data collection from sensors, remote monitoring, control, and signaling.
  • Page 6 Power: Power supply, 9V to 27V; supply from USB, 5V; Consumption current not exceeding: with the supply voltage of +12V — 400mA; with the supply voltage of +24V — 200mA; Physical characteristics: Dimensions not exceeding 69 х 75 х 26 mm; Weight not exceeding 125g;...

  • Page 7: Appearance

    2.4. Appearance ES90iPU modem is a compact device in a plastic case. Its appearance is displayed on Fig. 2.1 and Fig. 2.2. Fig. 2.1. Front view Fig. 2.2. Back view The numbers on figures stands for: USB 2.0 connector (type B) – connect communication cable;...

  • Page 8: Interfaces

    2.5. Interfaces 2.5.1. Interface connector (RS232) This connector is used for connecting to the control device using the RS232 exchange protocol. Factory settings: Speed is set to 115200 bps, 8-N-1. The appearance of the connector is displayed on Fig. 2.5.1: Fig.

  • Page 9: Power Connector

    2.5.2. Power connector The connector TJ6-6P6C is used to power the device. One of the pins is used to reset the modem. Fig. 2.5.2. Power connector Table 2.5.2: Using connector power pins Signal Purpose +Vin The positive pole of DC supply voltage. Fused circuit and overvoltage protection (when input voltage of over 27V is applied) and reverse polarity.

  • Page 10: Usb Connector

    2.5.3. USB Connector Connector USB (type B) is used for connection to controlling the device, USB 2.0 interface. Fig. 2.5.3. USB connector Table 2.5.3: Using USB connector pins Signal Purpose +5 V (can be used to power the modem, see details in Chapter 3) D−...

  • Page 11: Modem Status Display

    2.6. Modem status display LEDs are used to indicate the connection status or emergencies. Management of indication operate can be controlling by "AT+CGFUNC" AT-command (AT+CGFUNC=1,1 - LED mode on; AT+CGFUNC=1,0 - LED mode off). By default, AT+CGFUNC=1,1 (LED mode off). For more information see tables 2.6.1 and 2.6.2. Table 2.6.1: Connection status LED (green) LED mode Conditional indication...

  • Page 12: Connecting, Configuring And Management

    GSM antenna, commuting cables and the power supply unit are not included in the set. To work with USB interface, install USB driver on your PC. USB driver you can find at www.irz.net. After installing the driver should you see several ports on your PC: SimTech HS-USB Modem 9000 —...

  • Page 13: Management, Rebooting And Turning Off

    3.2. Management, rebooting and turning off Connecting and configuring iRZ ES90iPU modem to access the Internet from your PC is same as for a standard modem. If you using RS232 interface, select “standard modem 33600 bps”. For modem management with industrial applications, use standard AT-commands. Description of AT-commands can be downloaded from the website www.irz.net.
  • Page 14 Variant XX — software version. Symbols <P…> stand for control commands. A command is sent after pressing “Enter”. If an incorrect command has been sent, the “ERROR” message appears. Entering commands is case-insensitive. After entering the “P1” command a transition into the submenu of statistics occurs: Statistics: Power_Modem = XXX Bad_Power_Modem = XXX...
  • Page 15 To change the reboot interval, enter a number from 0 to 255 (by pressing “Enter”). The reboot interval is set in hours. If you need to switch off this function enter 0. Keep in mind that after the set interval expires, the unconditional reboot of the modem will occur.

  • Page 16: Programming Mode

    3.4. Programming mode Program “mprog” is used to change or update software of the managing microcontroller of the modem. Figure 3.1 shows an external view and main features: 1 – language, 2 – working with ports, 3 – working with Flash, 4 – working with EEPROM, 5 – start button, 6 –...

  • Page 17: Fig. 3.2. Port Opening

    Click the button (not later than 10 sec once the modem was powered) in “Port’ frame; The device model should appear. For example see figure 3.2 – “MC52i-485” (or “BGS2-485”). Fig. 3.2. Port opening Then select the new firmware file to be downloaded. Click the button in “Flash”...

  • Page 18: Fig. 3.5. Flash-Memory Writing

    Fig. 3.5. Flash-memory writing Next click the button in bottom part of program window; This will make the modem exit from programming mode and the port will be closed. Fig. 3.6. Exiting program mode Close the program Place the SIM holder into the modem The software update is completed.

  • Page 19: Emergencies

    4. Emergencies To facilitate the use of the modem, tracking and display of emergencies are provided. 4.1. Emergency 1 (incorrect input power supply) Emergency 1 occurs when the input power supply deviates from the permissible value. The modem stops working and it shuts down the GSM module power. A permanent red LED signals that the emergency has occurred.

  • Page 20: Support

    5. Support New document versions and software are available using: St. Petersburg The company’s website: www.radiofid.ru Phone number in St. Petersburg: +7 (812) 318 18 19 E-mail: support@radiofid.ru Moscow The company’s website: www.digitalangel.ru Phone number in Moscow: +7 (495) 974 74 22 E-mail: info@digitalangel.ru Our support team is ready to assist you with any questions you might have when installing, configuring or...
