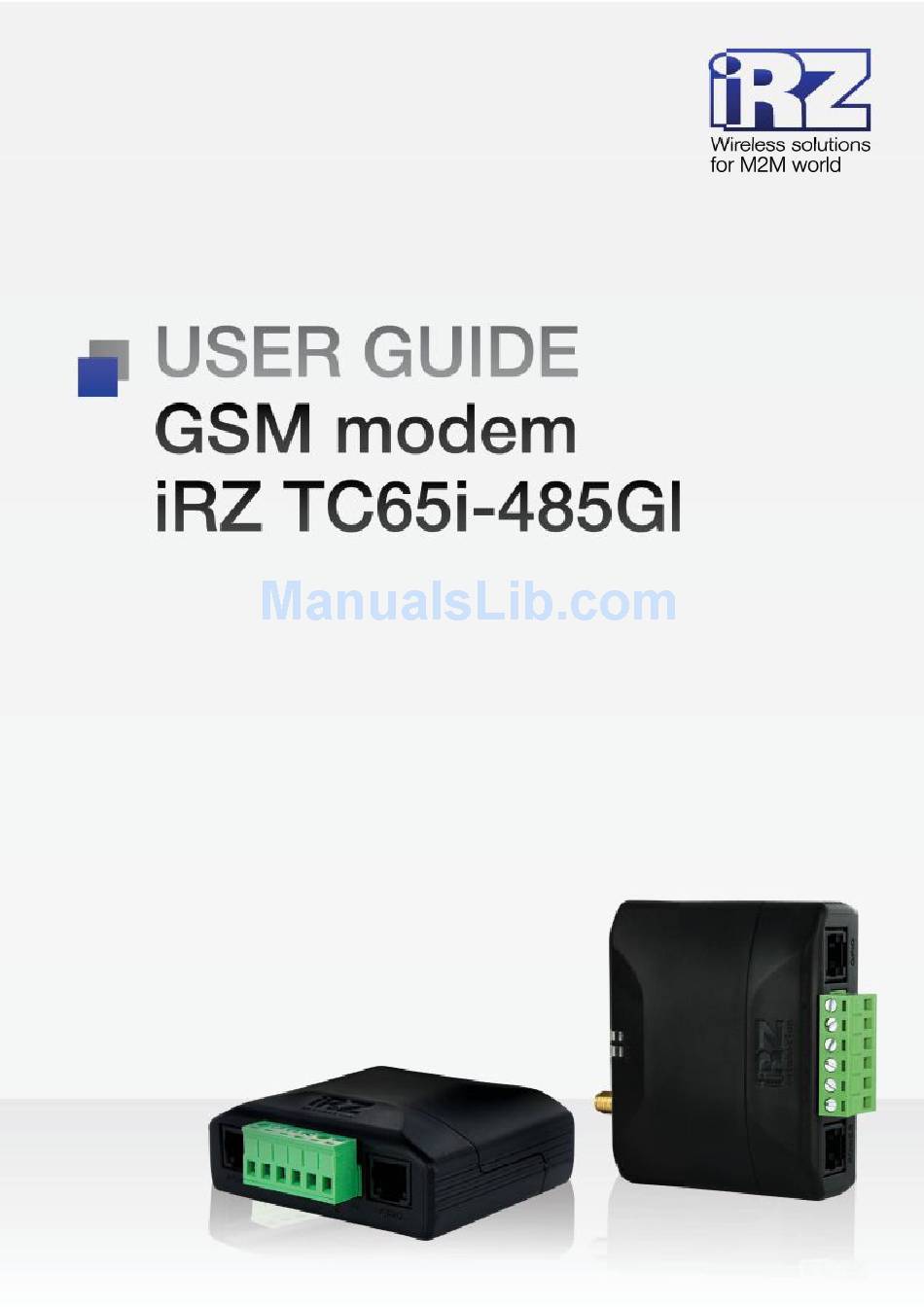

iRZ TC65I-485Gl User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC65I-485Gl and is the answer not in the manual?

Questions and answers

Related Manuals for iRZ TC65I-485Gl

Summary of Contents for iRZ TC65I-485Gl

  • Page 2: Table Of Contents

    Contents 1. Introduction ..........................4 1.1. Document description ........................4 1.2. Service data ........................... 4 1.3. Safety rules ............................ 4 2. General Information ........................ 5 2.1. Purpose............................5 2.2. Set ..............................5 2.3. Features............................5 2.4. Appearance ............................ 7 2.5. Interfaces ............................8 2.5.1.
  • Page 3 Tables Table 2.5.1: Using terminal connector pins ..................8 Table 2.5.2: Using connector power pins ................... 9 Table 2.5.3: Using digital connector pins ..................10 Table 2.6.1: Connection status diplay (green LED) ................11 Table 2.6.2: Emergency display (red LED) ..................11 Figures Fig.

  • Page 4: Introduction

    1. Introduction 1.1. Document description This manual is intended for experienced PC users. It describes the device and the operation of the GSM modem iRZ TC65i-485GI. 1.2. Service data Document version Issue date 2.11 09.20.2013 Prepared by V.N. Golovin Approved by P.A.

  • Page 5: General Information

    2. General Information 2.1. Purpose iRZ TC65i-485GI is an industrial GSM modem for receiving and transmitting data, text messages and faxes. It is perfectly suited both for providing mobile access to the Internet and for industrial applications including telemetry, wireless data collection from sensors, remote monitoring, control, and signaling.
  • Page 6 Power characteristics: Power supply from 9 to 28V Consumption current not exceeding: with the supply voltage of +12V — 400mА; with the supply voltage of +24V — 200mА; Physical characteristics: Dimensions not exceeding 76х85х30 mm; Weight not exceeding 130g; Operating temperatures from -30°С to +65°С; Storage temperatures from -40°С...

  • Page 7: Appearance

    2.4. Appearance TC65i-485GI modem is a compact device in an aluminum case. Its appearance is displayed on Fig. 2.4.1 and Fig. 2.4.2. Fig. 2.4.1. Front view Fig. 2.4.2. Back view The numbers on Fig. 2.4.1 and Fig. 2.4.2 stand for: LEDs (Emergency and Network);...

  • Page 8: Interfaces

    2.5. Interfaces 2.5.1. Plug-in terminal connector This connector is used for communication with a controlling device, interface RS485. The AT-commands are used to control the modem operation (see the module description). Factory settings: Speed: 115200 bps, Data Bit: 8, Parity: None, Stop Bit: 1. Fig.

  • Page 9: Power Connector

    2.6. Power connector TJ6-6P6C for RJ12 power connector is used to power the device. Also displayed on Fig. 2.5.2 are two keys to the “ground” and two ADC channels. Fig. 2.6.1. Power connector Table 2.6.1: Using connector power pins Contact Signal Purpose + 12V...

  • Page 10: Digital Connector

    2.6.1. Digital connector The connector has 4 digital pins. Both inputs and outputs can be used, which is specified in the GSM module settings. Fig. 2.6.2. Digital connector Table 2.6.2: Using digital connector pins Contact Signal Purpose Body of the system or “ground” GPIO2 Digital output controlling pin of GPIO2 module GPIO1...

  • Page 11: Modem Status Display

    2.7. Modem status display Two LEDs indicate current working mode (connection status) or signal for an emergency. This function can be controlling by a corresponding AT-command (AT^SSYNC=1 — LED mode on; AT^SSYNC=0 — LED mode off). By default, AT^SSYNC=1. Table 2.7.1: Connection status diplay (green LED) Display mode Conventional indication Operation mode...

  • Page 12: Functional Diagram And Operation Description

    3. Functional diagram and operation description 3.1. Functional diagram The functional diagram of the modem is displayed on Fig. 3.1.1. Fig. 3.1.1. Functional diagram of the modem 3.2. Operation description The operation mode of the modem changes depending on the presence of the SIM-tray. When the SIM-tray is installed, the modem is in the operation mode meaning that the pins of the RS485 interface of the umbilical connector are wired to the UART0 of the GSM module, UART of the managing microcontroller is connected to the UART1 of the GSM module, and the GSM module is tuned on.

  • Page 13: Watchdog Timer Types

    The modem can be powered using either of the two connectors: the power connector or the umbilical connector. 3.3. Watchdog timer types Several types of watchdog timers are provided in the GSM modem: Built-in watchdog timer in the managing microcontroller. The microcontroller itself is monitored for a possibility of software crash (It is permanently on and cannot be turned off);...

  • Page 14: Connecting And Configuring

    4.2. Control, rebooting and connecting The modem is controlled using standard AT-commands. You can find additional information and support at www.irz.net. The modem can be rebooted using one of the following ways: Rebooting after a given period of time (WD interval, turned off by default), setting is done in the menu mode;...

  • Page 15: Menu Mode

    4.3. Menu mode The menu mode’s function is to change the modem’s parameters and access the statistics. In this mode, the power of the GSM module is switched off. After leaving the menu mode automatic rebooting takes place. To access the menu mode from the operation mode remove the SIM-tray. Before accessing the menu mode connect the modem to the computer through the DB9 connector.
  • Page 16 Deadlock_of_Module – the number of GSM module deadlocks; Reset – the number of resets. After the statistics appears the transition to the main menu occurs. Use <P2> command to proceed to the WD submenu: WD interval, hour (0 - WD off, max - 255) <Q>...
  • Page 17 After entering the <PR> command a transition into the submenu of clearing the statistics occurs: Clear statistics? <YES> YES <Q> Quit The accumulated statistics is cleared by the <YES> command. In case incorrect information is entered the modem displays “ERROR” and offers the submenu of clearing the statistics once again. In case correct information is entered or <Q>...

  • Page 18: Programming Mode

    4.4. Programming mode Program “mprog” is used to change or update software of the managing microcontroller of the modem. Figure 3.1 shows an external view and main features: 1 – language, 2 – working with ports, 3 – working with Flash, 4 – working with EEPROM, 5 – start button, 6 –...
  • Page 19 Click the button (not later than 10 sec once the modem was powered) in “Port’ frame; The device model should appear. For example see figure 3.2 – “MC52i-485” (or “BGS2-485”). Fig. 4.2. Port opening Then select the new firmware file to be downloaded. Click the button in “Flash”...
  • Page 20 Fig. 4.5. Flash-memory writing Next click the button in bottom part of program window; This will make the modem exit from programming mode and the port will be closed. Fig. 4.6. Exiting program mode Close the program Place the SIM holder into the modem The software update is completed.

  • Page 21: Creating, Installing And Deleting Of Java-Applications

    This modem based on module Cinterion TC65i with built-in Java platform, which allows for many tasks. You can create, install and delete Java-applications with special tools from Cinterion company, “Module Exchange Suite” (MES) application. The software is available at www.irz.net, or from delivering on CD/DVD from our managers.

  • Page 22: Fig. 4.4.3. Working With "Module" Disk

    Fig. 4.4.3. Working with “Module” Disk Working with “Module Exchange Suite” is to copy and delete needed files to disk “Module”. For example, to install the Java-based applications simply copy the files to disk “Module”. Autostart of Java-based applications is given by the following AT-commands: AT^SCFG="userware/autostart/appname","","a:/ХХХ.jar"...

  • Page 23: Fig. 4.4.4. General View Of «Autoexec

    Fig. 4.4.4. General view of «AutoExec» application If the specified autostart interval does not allow send AT-command to cancel autostart, in this case use the program “autoexec_off.exe” (attached to the development software). Sequence of actions shall be as follows: connect the modem to the computer, run «autoexec_off.exe», and at the program window, enter the number of COM-port, power on the modem and after 1-3 seconds click on «AutoExec Off»...

  • Page 24: Emergencies

    6. Emergencies To facilitate the use of the modem, tracking and display of emergencies are provided. 6.1. Emergency 1 (incorrect input power supply) Emergency 1 occurs when the input power supply deviates from the permissible value. The modem stops working and it shuts down the GSM module power. A permanent red LED signals that the emergency has occurred.

  • Page 25: Support

    7. Support New document versions and software are available using: St. Petersburg The company’s website: www.radiofid.ru Phone number in St. Petersburg: +7 (812) 318 18 19 E-mail: support@radiofid.ru Moscow The company’s website: www.digitalangel.ru Phone number in Moscow: +7 (495) 974 74 22 E-mail: info@digitalangel.ru Our support team is ready to assist you with any questions you might have when installing, configuring or...
