Set The Protocol To Pppoe / Pppoa; Check Your Connection; Need Help? - Draytek Vigor2760 Delight Quick Start Manual

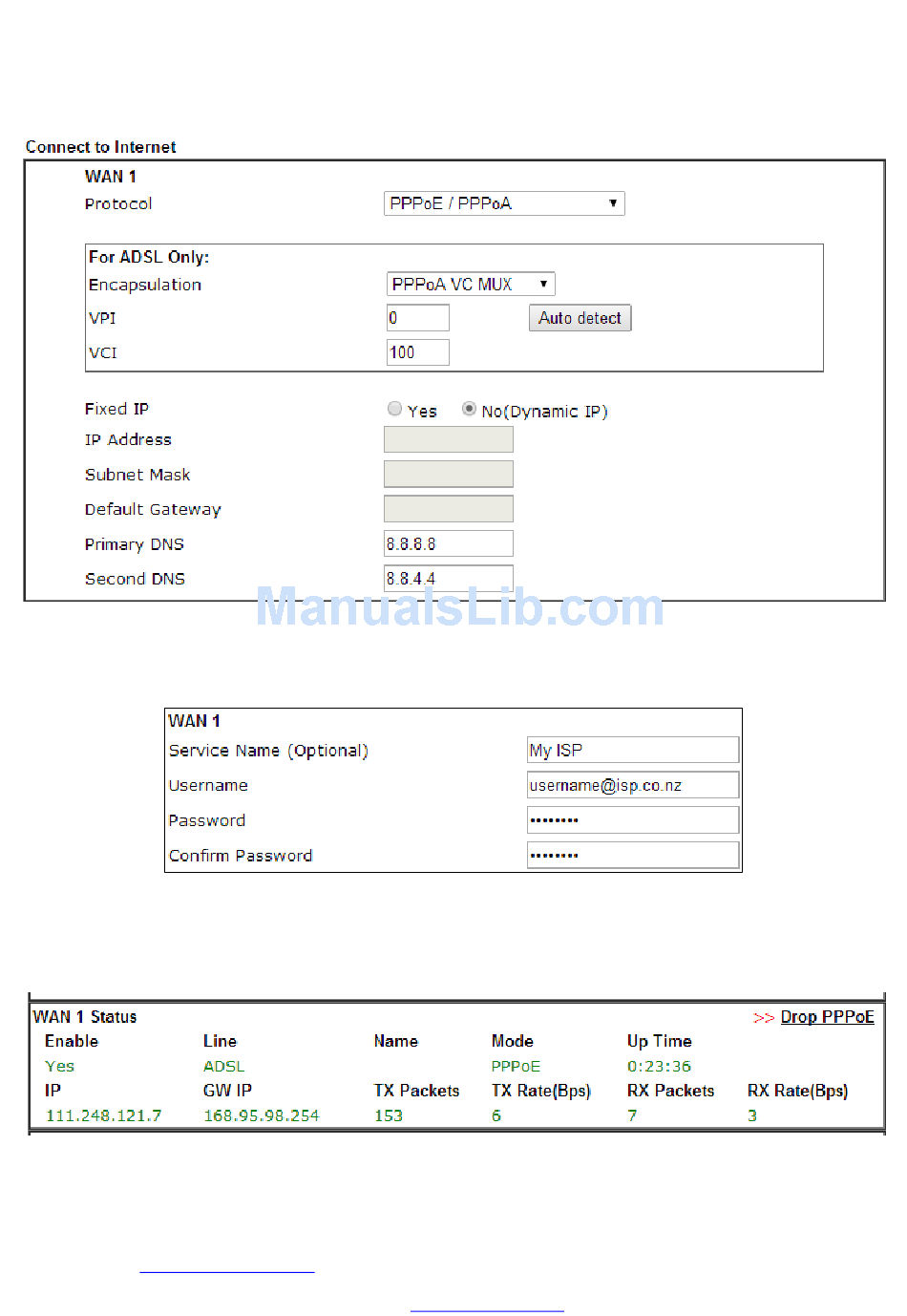

Set the protocol to PPPoE / PPPoA.

For ADSL only, set Encapsulation to PPPoA VC MUX, VPI to 0, VCI to 100.
Click Next >
Enter the username and password provided to you by your Internet Service Provider. Username should be in the
form of an email address. The password will need to be entered into both the Password and Confirm Password
fields. Note : All fields are case sensitive. Click Next >
Confirm your settings and click Finish. The router will restart.
Check your connection by logging back in to the router as above with your newly assigned password. Click Online
Status then Physical connection. Check the WAN 1 Status section to be sure you have an IP and GW IP assigned.

Need help?

We're available 9:00am to 5:00pm, Monday to Friday.
Phone: 09 415 4182
Email: tech@snappernet.co.nz
Firmware updates are available free of charge from www.draytek.net.nz
