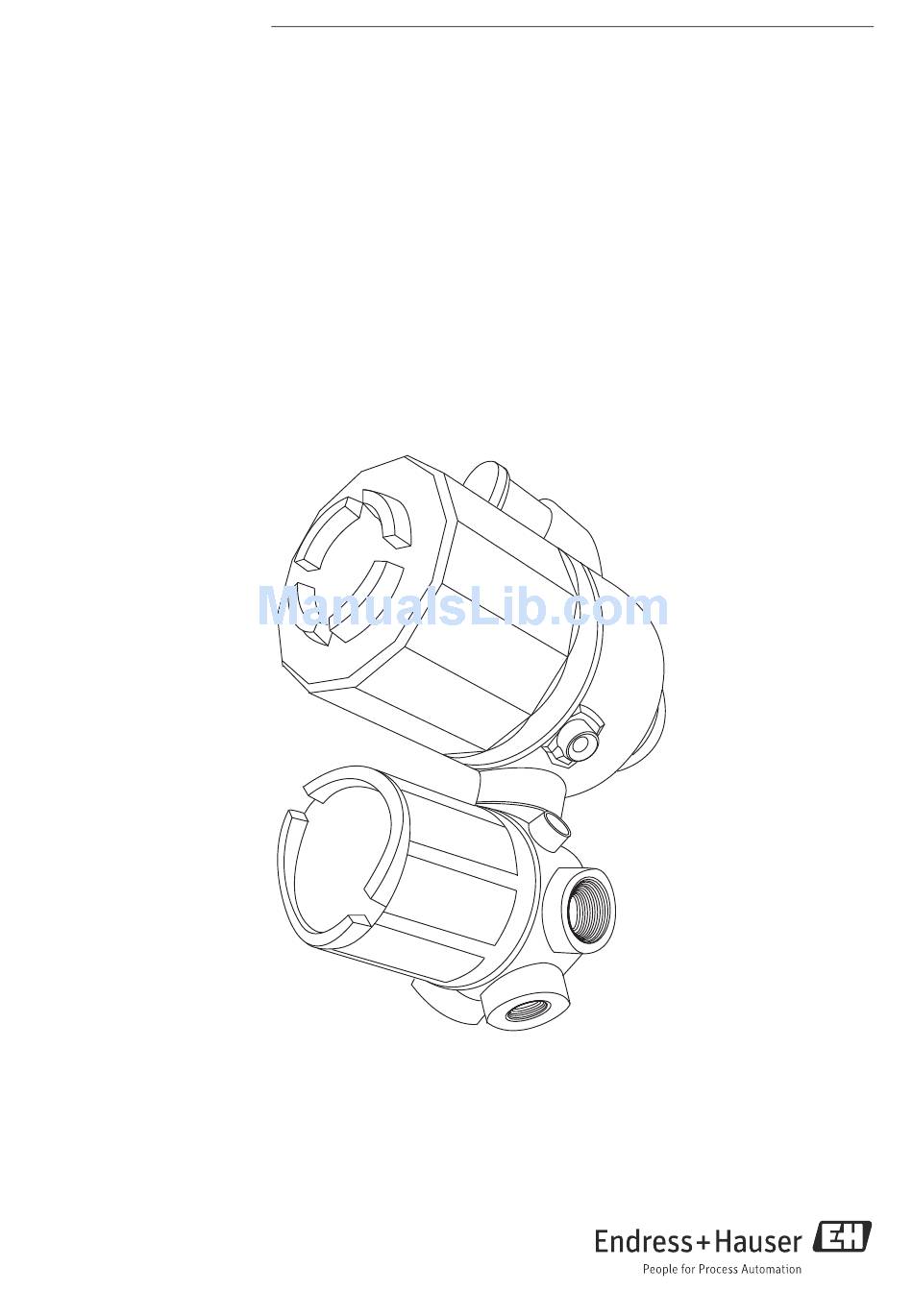

  • Page 1 BA00428G/08/EN/02.14 Products Solutions Services 71244425 Operating Instruction TMD1000 TMD1 Digital Transmitter Module Setting and Adjustment...

  • Page 2: Table Of Contents

    TMD1000 TMD1 module setting and adjustment Table of Contents Safety instructions......3 Terminals and wiring table .

  • Page 3: Safety Instructions

    • Do not change settings of module trimmer and jumper pins. TMD1 has been preset at factory. If need arise, follow the module setting of this instruction. Operational safety Changes or modifications other than those expressly approved by Endress+Hauser are strictly prohib- ited. Unauthorized modifications can cause malfunction or damage, resulting in serious injury or death.

  • Page 4: Notes On Safety Conventions And Symbols

    1 Safety instructions TMD1000 TMD1 module setting and adjustment Notes on safety conventions and symbols To highlight safety-relevant or alternative operating procedures in this manual, the following conven- tions have been used, each indicated by a corresponding symbol on the left.

  • Page 5: Module Outline

    2 Module outline TMD1000 TMD1 module setting and adjustment Module outline Module types TMD1 is available in a variety option modules. By installing modules as necessary, various customer specification requests may be built and filled economically. Number of Name Functions...

  • Page 6: Mother Board

    2 Module outline TMD1000 TMD1 module setting and adjustment Mother board Each module A, B, and C shows the maximum size to be installed. The size A module can be installed in any of the slot A, B, or C.

  • Page 7: Combination In Modules

    2 Module outline TMD1000 TMD1 module setting and adjustment Combination in modules The five modules for options can be installed at a maximum. The maximum number of module termi- nals and module size in total are described above. Precautions for addition and change of modules Confirmation of specifications Refer to "2.3 Combination in Modules"...

  • Page 8: Module Installation

    3 Module installation TMD1000 TMD1 module setting and adjustment Module installation Installation procedure Turn off the main power, then open the electrical chamber rid. Remove the module bracket. Install the module in the slot. Replace the module bracket. Follow the terminal table to connect connectors to modules.

  • Page 9: Module Adjustment

    Endress+Hauser representatives. Contact inputs (Status) This is used when it transfers status signals around device to a receiver via 2-way communication. If 5 points or more wires are needed, contact Endress+Hauser representatives. 4.1.2 General view of module and names LED4...
  • Page 10 4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.1.3 Module setting Exp-A is installed in slot 1 and connected to Main CPU-B. 4.1.4 2-way communication setting Switch to direct access mode in a receiver and adjust Exp-A so that it can access desired slave devices.
  • Page 11 4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.1.5 Operation check by LED Color Flashing Descriptions LED2 Orange Flashing on sending data LED3 Green Flashing on receiving data 4.1.6 Contact output (Alarm) adjustment and confirmation Refer to "4.5 Contact Output (Alarm) OUT-2" for details.
  • Page 12 4 Module adjustment TMD1000 TMD1 module setting and adjustment HHT2 Operation HHT2 Status SELECT DEVICE E : I/F NEXT SELECT DEVICE E:TGM/TM NEXT PUSH MODE HHT2 ROM V5.8 MODE: NO.01 TGM MODE OPERATION ? MODE: NO.00 TGM TGM/TM DATA ? ITEM NO.01...
  • Page 13 4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.1.8 Troubleshooting 2-way communication If there is a communication error, diagnosis for failure should be required, referring to the following check point and attached flow chart. The procedures include displaying data and error, and TMD operation confirmation using a receiver.
  • Page 14 4 Module adjustment TMD1000 TMD1 module setting and adjustment Communication error arose. Abnormal status in transmitter All tanks show All tanks Trouble in transmitter abnormal status. Refer to “Troubleshooting” . TMD opration input Selecting tank is O.K. Improper remote Tanks not work at all.
  • Page 15 4 Module adjustment TMD1000 TMD1 module setting and adjustment Module is Install connector connected properly. to recover TMD. TMD functions properly. No module damage Replace module. TMD functions properly. Repair or replace No cable breakage cable. TMD functions properly. Cable resistance is Replace cable.

  • Page 16: Temperature System Thermo-A Module

    4 Module adjustment TMD1000 TMD1 module setting and adjustment Temperature system Thermo-A module 4.2.1 Overview Temperature system Thermo-A supports four types of temperature and three types of temperature ele- ments as follows; 1) spot 1 point, 2) spot 4 points, 3) multi-element, 4) single element temperature, and 1) Pt100, 2) JPt 100, 3) Cu100.
  • Page 17 4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.2.3 Spot 1 point temperature setting Switch an element jumper post SW1 to spot side (SPT4). Select a temperature type and set "3" at MODE:00, ITEM:19. Select any of number for temperature element at MODE: 00 ITEM: 20: "0": Rt100, "1": JPt 100, "2": Cu100.
  • Page 18 4 Module adjustment TMD1000 TMD1 module setting and adjustment Set the element interval at MODE: 09, ITEM: 04. Connect a standard resistor instead of an appropriate element corresponded to current level. Set the standard resistor alternately to the resistance value 0°C and 200°C. Adjust the net tem- perature in MODE: 09, ITEM: 01 so as to be within ±...

  • Page 19: To 20 Ma Output Dac-1 Module

    4 Module adjustment TMD1000 TMD1 module setting and adjustment 4 to 20 mA output DAC-1 module 4.3.1 Overview DAC-1 module is used to output level or temperature data at 4 to 20 mA analog signal. Two DAC-1 modules can be installed at a time.
  • Page 20 4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.3.4 Adjustment and operation check Start Adjustment when output error is arising. Module #2 Module #1 Start Module #2 Use MODE 11 Use MODE 12 Module #1 for Adjustment. for Adjustment.
  • Page 21 4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.3.5 Adjustment and confirmation procedure The following procedure is described only for the first module. Follow the steps to adjust the module. When installing the second module, use same steps as follows and adjust it by using MODE: 12 (When 0 to 20 mA is outputted, adjust 4 mA as the 0 mA.

  • Page 22: Parallel Output Out-3 And Out-4 Module

    4 Module adjustment TMD1000 TMD1 module setting and adjustment Parallel output OUT-3 and OUT-4 module The three specifications of output data are as follows. Specifications Descriptions LEVEL - BCD BCD output for level data LEVEL - SIG SAKURA CODE output for level data...
  • Page 23 4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.4.1 Overview The parallel output module is used to output level and /or temperature data with BCD or SIC cord. The module can provide 24bit output, however for a standard cable module, the standard is limited to 17bit.
  • Page 24 4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.4.4 Level output setting Setting flow chart Start Set the level output at MODE: 05 using HHT2. Temperature BCD Output Output Set output code in Select temperature case of level A/D...
  • Page 25 4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.4.6 Level output confirmation Input level value at MODE: 03, ITEM: 04 and confirm the code output corresponds to the level value on the terminal or transmitter. 4.4.7 Temperature output confirmation Confirmation procedure Read and note the temperature offset value at MODE: 07, ITEM: 02.

  • Page 26: Contact Output (Alarm) Exp-A Module

    4 Module adjustment TMD1000 TMD1 module setting and adjustment Contact output (Alarm) Exp-A module Do not open the cover in dangerous area during full condition unless otherwise specified by law. 4.5.1 Setting flowchart Each data is set at MODE: 06 with HHT2.
  • Page 27 4 Module adjustment TMD1000 TMD1 module setting and adjustment NOTICE • If the alarm output is not necessary, select NONE (no alarm) for both level and temperature data. • If alarm is used for either of level or temperature, set NONE (no alarm) to the other one which is not selected.

  • Page 28: To 20Ma Input Adc-2 Module

    4 Module adjustment TMD1000 TMD1 module setting and adjustment 4 to 20mA input ADC-2 module 4.6.1 Overview The ADC-2 module converts a 4 to 20 mA signal received from a manometer or angle indicator into a 0 to 100% form, and transmits the data to a receiver via a 2two-way 2-wire communication (V1 pro- tocol).

  • Page 29: Optical (Ffi) Communication Odc-1 Module

    4 Module adjustment TMD1000 TMD1 module setting and adjustment Optical (FFi) communication ODC-1 module CAUTION ODC-1 module uses precision optical materials. Check the following items. • Do not subject the module to strong impact. • Put a protection cap on the optical connector if the connector is not used.
  • Page 30 4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.7.4 Module adjustment Check the transmission loss of optical fiber and make sure that the loss is within the allowable range prior to operating optical communication. Set the following items using HHT2 for optical communica- tion operation.
  • Page 31 4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.7.7 Operation confirmation Confirm that TMD1 data can be received correctly in a receiver upon completion of data setting. 4.7.8 Troubleshooting When abnormality is found in communication operation, follow the check point and flowchart to make a diagnosis of failure.
  • Page 32 4 Module adjustment TMD1000 TMD1 module setting and adjustment Operation diagnosis flowchart Communication error arose. Trunk line of fiber error All tanks show All tanks Check main fiber, distribute abnormal status. repeat, star couper Refer to TMD1 Is TMD1 operation normal? Is TMD1 operation normal? troubleshooting.

  • Page 33: Contact Input (Status) Exp-A Module

    4 Module adjustment TMD1000 TMD1 module setting and adjustment Contact input (Status) Exp-A module 4.8.1 Module setting Refer to "3 Module Installation" for details on installation. 4.8.2 Operation confirmation The input signal is contact OFF (open) and valid signal (logic "1"). Confirm that the signal can be trans- fered correctly to a receiver corresponding to SHORT or OPEN at signal input board.

  • Page 34: Contact Input (Status) Exp-A Module

    4 Module adjustment TMD1000 TMD1 module setting and adjustment Contact input (Status) Exp-A module 4.9.1 Overview When transmitting status signals from other device to a receiver by using V1 communication (new 2- way 2-wire communication, INT-2 module is used for signal input.

  • Page 35: Drm9700 Interface Drmm-A Module

    4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.10 DRM9700 interface DRMM-A module 4.10.1 Overview DRMM-A module is used to communicate with tank gauge monitor DRM9700. The level and tempera- ture data can be monitored in some distance from TMD1 by using DRM9700 (refer to "DRM9700 Oper- ating Instruction).

  • Page 36: Output For External Device Operation Cnt-2 Module

    4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.11 Output for external device operation CNT-2 module Note that the output switches ON to OFF during adjustment and operation and the device connected to TMD1 also are activated. If this causes negative effects on the adjustment or operation, removing cable terminals is recommended.

  • Page 37: Level A/D Conversion Mif4 Module

    4 Module adjustment TMD1000 TMD1 module setting and adjustment 4.12 Level A/D conversion MIF4 module 4.12.1 Overview MIF4 module is used for level A/D conversion. This module reads encoder and counter values and after converting their values, transfers the level value to CPU board.

  • Page 38: Alarm Contact Output Cd-688 Module

    4.13.1 Overview CD-688 is used to output level or temperature alarm. The mechanical relay is used for output. The out- put configuration is 4 point. If 5 point or more are needed, contact Endress+Hauser Japan representa- tives. 4.13.2 Module configuration and names...

  • Page 39: Terminals And Wiring Table

    5 Terminal and wiring table TMD1000 TMD1 module setting and adjustment Terminals and wiring table A - 3 H Connector Connection Terminal No. Signal name Polarities Remarks board Supply Power AC/DC No polarity on AC DC 4-20mA Output DAC-1 DC 4-20mA Output...
  • Page 40 5 Terminal and wiring table TMD1000 TMD1 module setting and adjustment A - 2 H Connector Connection Terminal No. Signal name Polarities Remarks board Supply Power AC/DC No polarity on AC Level Gauge Operation Output: HOISTING Common Level Gauge Operation Output: HOISING...
  • Page 41 5 Terminal and wiring table TMD1000 TMD1 module setting and adjustment B - 2 H Connector Connection Terminal No. Signal name Polarities Remarks board Supply Power AC/DC No polarity on AC Level Gauge Operation Output: HOISTING Common Level Gauge Operation Output: HOISING...
  • Page 42 5 Terminal and wiring table TMD1000 TMD1 module setting and adjustment B - 3 H Connector Connection Terminal No. Signal Name Polarities Remarks Board Supply Power AC/DC No polarity on AC Level Gauge Operation Output: HOISTING Common Level Gauge Operation Output: HOISING...

  • Page 43: C H

    5 Terminal and wiring table TMD1000 TMD1 module setting and adjustment Connector Connection Terminal No. Signal Name Polarities Remarks Board Supply Power AC/DC No polarity on AC This is for connection of NRF and HART Communication Main CPU-B NMT. 2-way 2-wire Transmission...

  • Page 44: E H

    5 Terminal and wiring table TMD1000 TMD1 module setting and adjustment E - 1 H Connector Connection Terminal No. Signal Name Polarities Remarks Board Supply Power AC/DC No polarity on AC This is for connection of NRF and HART Communication Main CPU-B NMT.

  • Page 45: 550 H

    5 Terminal and wiring table TMD1000 TMD1 module setting and adjustment 550 H Connector Connection Terminal No. Signal Name Polarities Remarks Board Supply Power AC/DC No polarity on AC Level Gauge Operation Output: HOISTING Common Level Gauge Operation Output: HOISING...

  • Page 46: H Optical Ffi

    5 Terminal and wiring table TMD1000 TMD1 module setting and adjustment A - 2 H Optical FFi Connector Connection Terminal No. Signal Name Polarities Remarks Board Supply Power AC/DC No polarity on AC DC 4-20mA Output DAC-1 DRM9700 Output DRMM-A DRMM-A board is an option.

  • Page 47: Troubleshooting

    The measuring device must be returned if repairs or a factory calibration are required, or if the wrong measuring device has been ordered or delivered. According to legal regulations, Endress+Hauser, as an ISO-certified company, is required to follow certain procedures when handling returned products that are in contact with medium.
