TP-Link TL-SM301U User Manual

Ø
The maximal transmission distance of Multi-mode/Single-
Mode/Cat.5 Twisted-pair is 550m/10000m/100m
Ø
Option for some type TP-LINK Switches
Ø
LED indicators of the module indicate the module status
Ø
Plug and play and TL-SM371series support hot plug and play

6. Installation Guide

Ø
Turn off the power supply
Ø
Take down the module panel on the Switch
Ø
Push module into Switch along the track smoothly
Ø
Screw the module on Switch
Ø
Plug fiber/UTP into the module, turn on the power supply of the
Switch. Without any configuration manually, the Gigabit Module
can work

7. Remarks

Ø

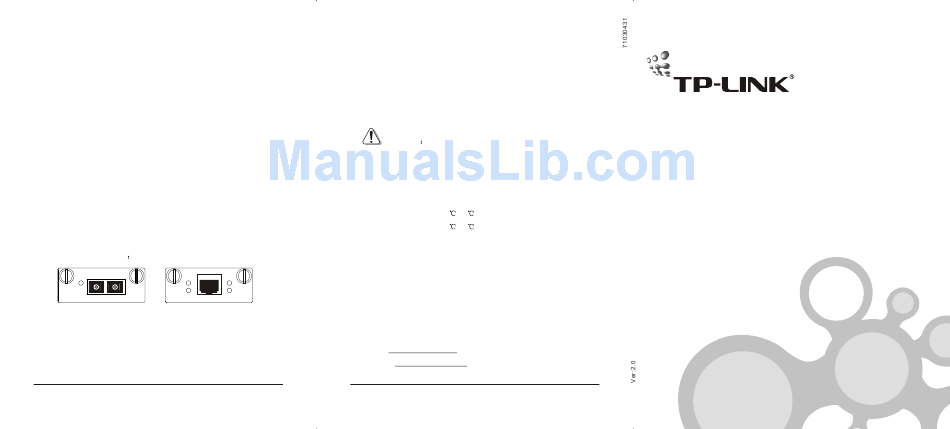

There are led indicators on the module to show the working
condition. as follows
TX RX
1000M
Link/Act
10/100M FDX/Col
FIBER MODULE UTP MODULE
Ø
TL-SM301 module support plug and play ,but must turn off power
supply before install/uninstall, TL-SM371 module support hot plug
and play.
Ø
TL-SM301GB don't work independently, it must be worked with
4
TL-SM371 series GBIC module.
Ø
TL-SM301 module only install in the TP-LINK Switch, do not install
this card in any other brand Switch.
Ø
At present. TL-SM301 module can be installed in TL-SL2226P,
TL-SL2226P+ and TL-SL3226P Switches only, we will give a
indication in the user's guide when a new type Switch could use
this card. See our web site for more details:
Warning
In order to avoid ESD, do not touch the parts on the circuit including IC's
pins with your hand directly!

8. Working Environment

Power supply: supplied by Switch
Operating T emperature: 0 -40
Storage T emperature: -40 -70
Operating Humidity: 10%-90%(non-condensing)
Storage Humidity: 5%-95%(non-condensing)
Appendix: Contact Information
Act
For help with the installation or operation of the TP-LINK TL-SM301
Series Gigabit Module, please contact us.
TP-LINK TECHNOLOGIES CO., LTD.
Add: Fl.3, Bldg.R1-B, High-Tech Industrial Park, Shennan Road,
Shenzhen, China
E-mail: support@tp-link.com
Website: http://www.tp-link.com
http://www.tp-link.com.
Made in China
5
User's Guide
TL-SM301 Series Gigabit Module
TL-SM371 Series GBIC Module
