Onkyo HTP-980 Service Manual

7.1 ch thx certified
Hide thumbs Also See for HTP-980:

Advertisement

Quick Links

Download this manual

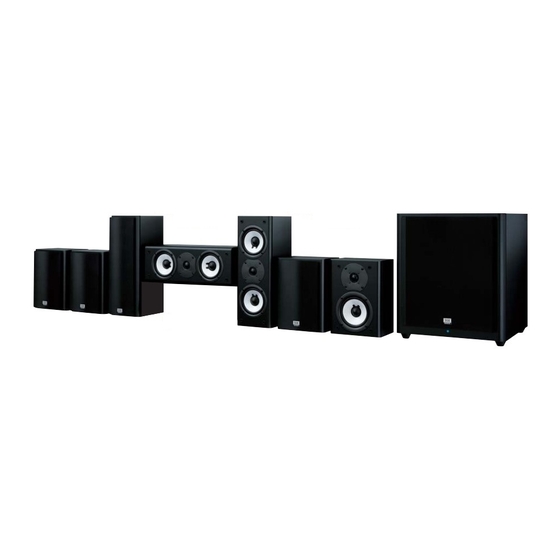

HOME THEATER SPEAKER PACKAGE
- - Surround Back Speakers (L/R) - -
"SKB-980"
- - Front Speakers (L/R) - -
SERVICE MANUAL
SERVICE MANUAL
7.1-CH THX CERTIFIED
HTP-980(B)
MODEL
- - Surround Speakers (L/R) - -
"SKF-980"
- - Center Speaker - -
"SKC-980"
Black model
B MDC
120V AC, 60Hz
B MPP
230V AC, 50Hz
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
- - Powered Subwoofer - -
"SKW-980"(MDC model)
"SKW-938"(MPP model)
"SKR-980"
ON THE
HTP-980
Ref. No. 4236
(MDC) 072010
(MPP) 102010

Advertisement

loading
Need help?

Need help?

Do you have a question about the HTP-980 and is the answer not in the manual?

Questions and answers

Related Manuals for Onkyo HTP-980

Summary of Contents for Onkyo HTP-980

  • Page 1 COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE...

  • Page 2: Adjustment Procedure

    HTP-980 ADJUSTMENT PROCEDURE SKW-980 : POWERED SUBWOOFER (EuP AMP.) / ADJUSTMENT OF IDLING CURRENT [When] 1. Exchange transistors (Q505 - Q519). 2. Exchange MAIN PC board ass'y (BAAF-0491). [Procedure] <Note> No speaker load and No input signal. 1. Short test point P631 for amplifier is under active mode.

  • Page 3: Exploded Views

    HTP-980 EXPLODED VIEWS-1 SKW-980 (MDC model) : POWERED SUBWOOFER (EuP Amp.) P901 SP11 x 10 pcs. (NSP) x 2 pcs. A102 See "EXPLODED VIEWS-3" A103 SP12 x 5 pcs. A101 SP13 A104 (NSP) x 2 pcs. x 2 pcs. x 2 pcs.
  • Page 4 HTP-980 EXPLODED VIEWS-2 SKW-938 (MPP model) : POWERED SUBWOOFER (EuP Amp.) <Note> S901 P901 Part No. of S901 ---> See "PRINTED CIRCUIT BOARD PARTS LIST". SP11 x 10 pcs. (NSP) x 2 pcs. A102 See "EXPLODED VIEWS-3" A103 SP12 x 5 pcs.
  • Page 5 HTP-980 EXPLODED VIEWS-3 SKW-980 / SKW-938 : POWERED SUBWOOFER SP01a/b : SPK SYSTEM ASS’Y (All) SP01c : SPK SYSTEM ASS’Y (Without amplifier unit, power transformer and speaker unit.) SP08 SP07 SP09 SP02 x 4 pcs. SP03 x 4 pcs.
  • Page 6 HTP-980 EXPLODED VIEWS-4 SKF-980 <L> / SKF-980 <R> SP21a/b : SPK SYSTEM ASS’Y (ALL) SP31 SP32a/b I N A L c h l a c i t e TWEETER R c h I N A l a c INPUT R e d...
  • Page 7 HTP-980 EXPLODED VIEWS-5 SKC-980 SP41 : SPK SYSTEM ASS’Y (ALL) SP52 SP51 I N A l a c G r e TWEETER WOOFER WOOFER INPUT (Terminal) SP43 SP42 x 4 pcs. SP44 SP43 SP54...
  • Page 8 HTP-980 EXPLODED VIEWS-6 SKR-980 <L> / SKR-980 <R> SP71 SP61a/b : SPK SYSTEM ASS’Y (ALL) L c h I N A B l a B l u R c h I N A TWEETER B l a G r a...
  • Page 9 HTP-980 EXPLODED VIEWS-7 SKB-980 <L> / SKB-980 <R>...
  • Page 10 HTP-980 SCHEMATIC DIAGRAMS-1 NOTE THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY SKW-980 (MDC model) : POWERED SUBWOOFER (EuP AMP with protection.) REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL). ALL PNP TRANSISTORS ARE EQUIVALENT TO 2SA1015-GR UNLESS OTHERWISE NOTED.
  • Page 11 HTP-980 SCHEMATIC DIAGRAMS-2 NOTE THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY SKW-938 (MPP model) : POWERED SUBWOOFER (EuP AMP with protection.) REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL). ALL PNP TRANSISTORS ARE EQUIVALENT TO 2SA1015-GR UNLESS OTHERWISE NOTED.

  • Page 12: Exploded Views Parts List

    1/24 PAGE HTP-980 EXPLODED VIEWS PARTS LIST <Notes> <L> : Lch NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ARE CRITICAL FOR RISK OF FIRE AND <R> : Rch ELECTRIC SHOCK. REPLACE ONLY WITH PART <MDC> : Canadian model only NUMBER SPECIFIED.
  • Page 13 2/24 PAGE [TRANS COIL] EXPLODED T901 P TRANS NPT-1539D 2301863 <MDC> EXPLODED T901 P TRANS NPT-1539P 2301864 <MPP> EXPLODED [SW TRM] EXPLODED F901 FUSE 5A-UL/T-233 252326GR <MDC> EXPLODED F901 FUSE 1.6A-SE-EAK IECFUSE 252073GR <MPP> EXPLODED F901 or FUSE 1.6A-SE-TL250V ( 1) 252273GR <MPP>...
  • Page 14 SP21b SPK SYSTEM ASS'Y(ALL) SKF-980 (B) <R> MDC 000-SKF980RBCSER <R> EXPLODED SP22 CATCHING HOLDER D230-DN3X01B-01 EXPLODED SP23 WOOFER W1277C (ONKYO ELE M) W1277C EXPLODED SP24 TWEETER TW3208B (ONKYO ELE M) TW3208B EXPLODED SP31 CROSSOVER SKF/SKC NETWORK PCB ASS'Y 311-SKF940-00 EXPLODED...
  • Page 15 SPK SYSTEM ASS'Y(ALL) SKR-980 (B) <R> MDC 000-SKR980RBCSER <R> EXPLODED SP62 CATCHING HOLDER D230-DN3X01B-01 EXPLODED SP63 WOOFER W1367B (ONKYO ELE M) W1367B EXPLODED SP64 TWEETER TW3223A (ONKYO ELE M) TW3223A EXPLODED SP65 S. ABSORBER 25t x 50 x 50 443-925404-00...

  • Page 16: Printed Circuit Board Parts List

    SPK SYSTEM ASS'Y(ALL) SKB-980 (B) <R> MDC 000-SKB980RBCSER <R> EXPLODED SP82 CATCHING HOLDER D230-DN3X01B-01 EXPLODED SP83 WOOFER W1367B (ONKYO ELE M) W1367B EXPLODED SP84 TWEETER TW3223A (ONKYO ELE M) TW3223A EXPLODED SP85 S. ABSORBER 25t x 50 x 50 443-925404-00...
  • Page 17 6/24 PAGE D901 DIODE D3SBA60 22380272F <MDC> D901 or DIODE RBV402 ( 1) 22380022F <MDC> D911 DIODE 1SS133 223163T <MDC> D913 DIODE 1SS133 223163T <MDC> D917 DIODE 1SS133 223163T <MDC> D918 DIODE 1SS133 223163T <MDC> D919 DIODE RL1N4003 22380260T <MDC> D920 ZENER D MTZJ9.1B...
  • Page 18 7/24 PAGE Q505 2SA949-O(TPE6_F) 2211353T <MDC> Q505 or 2SA949-Y(TPE6_F) ( 1) 2211354T <MDC> Q505 or KTA1024-Y ( 1) 2215844T <MDC> Q506 2SC2229-O(TPE6_F) 2211633T <MDC> Q506 or 2SC2229-Y(TPE6_F) ( 1) 2211634T <MDC> Q506 or KTC3206-Y ( 1) 2215854T <MDC> Q507 2SA949-O(TPE6_F) 2211353T <MDC>...
  • Page 19 8/24 PAGE Q607 2SA933S-S 2213355T <MDC> Q607 or 2SA933S-R ( 1) 2213354T <MDC> Q607 or KTA1267-GR ( 1) 2215995T <MDC> Q608 2SC1740S-S 2213285T <MDC> Q608 or 2SC1740S-R ( 1) 2213284T <MDC> Q608 or KTC3199-GR ( 1) 2215864T <MDC> Q610 2SA933S-S 2213355T <MDC>...
  • Page 20 9/24 PAGE Q703 or KTC3199-GR ( 1) 2215864T <MDC> Q704 2SC1740S-S 2213285T <MDC> Q704 or 2SC1740S-R ( 1) 2213284T <MDC> Q704 or KTC3199-GR ( 1) 2215864T <MDC> Q705 2SA933S-S 2213355T <MDC> Q705 or 2SA933S-R ( 1) 2213354T <MDC> Q705 or KTA1267-GR ( 1) 2215995T <MDC>...
  • Page 21 10/24 PAGE C903 TF C ECQ-V100V-104J 374731044T <MDC> C904 TF C ECQ-V100V-104J 374731044T <MDC> C905 ELECT C CE62W71V5600M 3504444 <MDC> C906 ELECT C CE62W71V5600M 3504444 <MDC> C907 UTSP C CE04W25V-220M(UTSP) 397552217T <MDC> C908 UTSP C CE04W25V-220M(UTSP) 397552217T <MDC> C911 UTSK C CE04W25V-1000M(UTSK) 398351027S <MDC>...
  • Page 22 11/24 PAGE C955 TF C ECQ-V50V-223J 374722234T <MDC> [RESISTOR] R301 CARBON R R16J-1K 417341024T <MDC> R302 VARI R N17RGL20KB15M 5151508 <MDC> R303 CARBON R R16J-47K 417344734T <MDC> R304 CARBON R R16J-2.2K 417342224T <MDC> R305 CARBON R R16J-8.2K 417348224T <MDC> R307 CARBON R R16J-270 417342714T...
  • Page 23 12/24 PAGE R543 CARBON R R16J-180 417341814T <MDC> R544 TRIM R N06HR100BC 5210399T <MDC> R601 CARBON R R16J-5.6K 417345624T <MDC> R602 CARBON R R16J-100K 417341044T <MDC> R603 CARBON R R16J-150K 417341544T <MDC> R604 CARBON R R16J-180 417341814T <MDC> R605 CARBON R R16J-22 417342204T <MDC>...
  • Page 24 13/24 PAGE R616 CARBON R R16J-100K 417341044T <MDC> R617 CARBON R R16J-1K 417341024T <MDC> R619 CARBON R R16J-22K 417342234T <MDC> R620 CARBON R R16J-100K 417341044T <MDC> R621 CARBON R R16J-1K 417341024T <MDC> R622 CARBON R R16J-10K 417341034T <MDC> R623 CARBON R R16J-22K 417342234T <MDC>...
  • Page 25 14/24 PAGE F901Bor FUSE HOL NSCT-1P2031 ( 1) 25052133T <MDC> P301 PIN JACK NPJ-1PDB581 25045801 <MDC> P301 or PIN JACK NPJ-1PDBL382 ( 1) 25045567 <MDC> P301 or PIN JACK NPJ-1PDB556 ( 1) 25045774 <MDC> P531 PLUG NPLG-2P29 25055038 <MDC> P535A SOCKET AS NSAS-2P1865 2009991199UL...
  • Page 26 15/24 PAGE SKW-938 (MPP model) MAIN PC BOARD (BAAF-0491-1F) POWER TRANS. PC BOARD (BAPS-0492-1F) POWER SWITCH PC BOARD (BASW-0494-1F) CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS [SEMI CONDUCTOR] D501 ZENER D MTZJ5.6B 224470562T <MPP> D601 ZENER D MTZJ3.6B 224470362T <MPP>...
  • Page 27 16/24 PAGE Q506 2SC2229-O(TPE6_F) 2211633T <MPP> Q506 or 2SC2229-Y(TPE6_F) ( 1) 2211634T <MPP> Q506 or KTC3206-Y ( 1) 2215854T <MPP> Q507 2SA949-O(TPE6_F) 2211353T <MPP> Q507 or 2SA949-Y(TPE6_F) ( 1) 2211354T <MPP> Q507 or KTA1024-Y ( 1) 2215844T <MPP> Q509 2SA949-O(TPE6_F) 2211353T <MPP>...
  • Page 28 17/24 PAGE Q514 2SA1930(ONK_Q) 2203000 <MPP> Q514 or KTB1369-Y ( 1) 2203424 <MPP> Q517 2SA933S-S 2213355T <MPP> Q517 or 2SA933S-R ( 1) 2213354T <MPP> Q517 or KTA1267-GR ( 1) 2215995T <MPP> Q518 2SC2235-Y(TPE6_F) 2211654T <MPP> Q519 2SA965-Y(TPE6_F) 2211644T <MPP> Q602 KRC103M 2215810T <MPP>...
  • Page 29 18/24 PAGE Q704 or KTC3199-GR ( 1) 2215864T <MPP> Q705 2SA933S-S 2213355T <MPP> Q705 or 2SA933S-R ( 1) 2213354T <MPP> Q705 or KTA1267-GR ( 1) 2215995T <MPP> Q706 DTC123JS 2213640T <MPP> Q901 DTC123JS 2213640T <MPP> Q902 78M05AHF(MPC78M05AHF) 222780055NEC <MPP> Q902 or 78M05(NJM78M05FA) ( 1) 222780055JRC <MPP>...
  • Page 30 19/24 PAGE C501 UTSP C CE04W50V 47M(UTSP) 397584707T <MPP> C503 TF C ECQ-V50V-224J 374722244T <MPP> C504 UTSP C CE04W25V-220M(UTSP) 397552217T <MPP> C505 CERA C CC45CH50V-020C 345340201T <MPP> C506 CERA C CC45CH50V-070D 345340702T <MPP> C514 UPZ C 2AUPZTF101JE 376331014T <MPP> C517 VR C CE04W100V-22M(VR) 394692207T...
  • Page 31 20/24 PAGE R301 CARBON R R16J-1K 417341024T <MPP> R302 VARI R N17RGL20KB15M 5151508 <MPP> R303 CARBON R R16J-47K 417344734T <MPP> R304 CARBON R R16J-2.2K 417342224T <MPP> R305 CARBON R R16J-8.2K 417348224T <MPP> R307 CARBON R R16J-270 417342714T <MPP> R501 CARBON R R16J-1K 417341024T <MPP>...
  • Page 32 21/24 PAGE R509 CARBON R R16J-1K 417341024T <MPP> R510 CARBON R R16J-100K 417341044T <MPP> R511 NF CARBON R R25J-82 415478204T <MPP> R512 NF CARBON R R25J-68 415476804T <MPP> R513 NF CARBON R R25J-82 415478204T <MPP> R514 NF CARBON R R25J-82 415478204T <MPP>...
  • Page 33 22/24 PAGE R617 CARBON R R16J-1K 417341024T <MPP> R619 CARBON R R16J-22K 417342234T <MPP> R620 CARBON R R16J-100K 417341044T <MPP> R621 CARBON R R16J-1K 417341024T <MPP> R622 CARBON R R16J-10K 417341034T <MPP> R623 CARBON R R16J-22K 417342234T <MPP> R624 CARBON R R16J-100K 417341044T <MPP>...
  • Page 34 23/24 PAGE R652 CARBON R R16J-470K 417344744T <MPP> R653 CARBON R R16J-680K 417346844T <MPP> R654 CARBON R R16J-330K 417343344T <MPP> R704 CARBON R R16J-100K 417341044T <MPP> R714 CARBON R R16J-68K 417346834T <MPP> R715 CARBON R R16J-10K 417341034T <MPP> R716 CARBON R R16J-1K 417341024T <MPP>...
  • Page 35 24/24 PAGE RL901 RELAY NRL-1P5A-DC9-179 25065669 <MPP> S901 RC SW NRC-11007P 25065620 <MPP>...
  • Page 36 Service Dept. Technical Support : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8163 ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 800-229-1687, 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/ ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/...
