HTP-993
7.1ch Home Theater Speaker Package

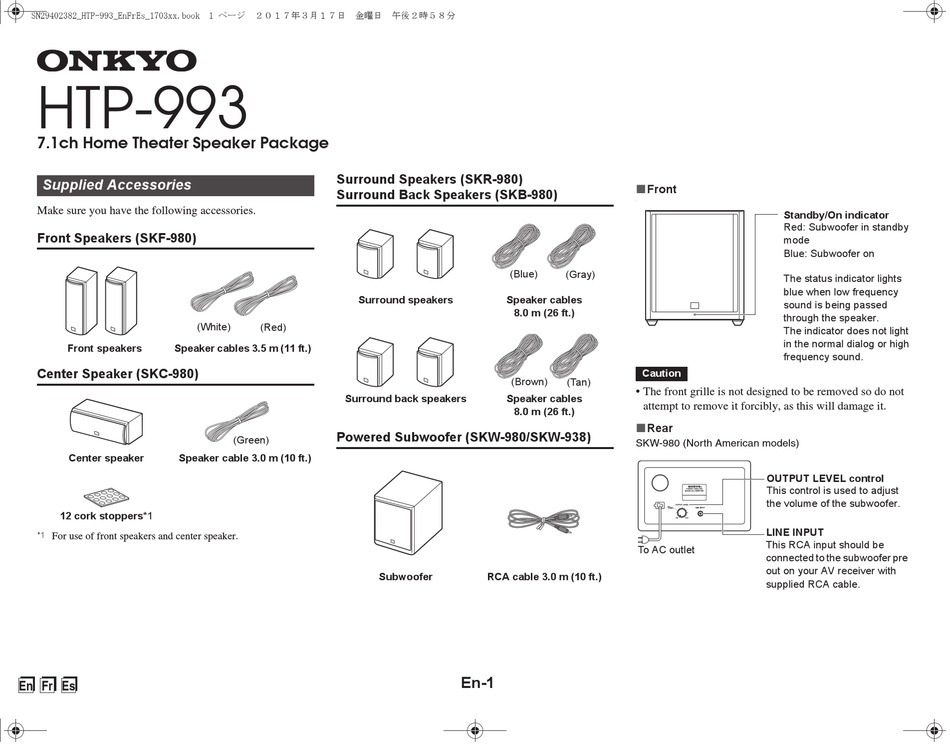

Supplied Accessories

Make sure you have the following accessories.
Front Speakers (SKF-980)
Front speakers Speaker cables 3.5 m (11 ft.)
Center Speaker (SKC-980)
Center speaker Speaker cable 3.0 m (10 ft.)
12 cork stoppers*1
*1
For use of front speakers and center speaker.
En Fr Es En
Surround Speakers (SKR-980)
Surround Back Speakers (SKB-980)
Surround speakers
(White) (Red)
Surround back speakers
Powered Subwoofer (SKW-980/SKW-938)
(Green)
(Blue)
Speaker cables
8.0 m (26 ft.)
(Brown)
Speaker cables
8.0 m (26 ft.)
Subwoofer RCA cable 3.0 m (10 ft.)
En-1
Front
.
(Gray)
Caution
(Tan)
• The front grille is not designed to be removed so do not
attempt to remove it forcibly, as this will damage it.
Rear
SKW-980 (North American models)
To AC outlet
Standby/On indicator
Red: Subwoofer in standby
mode
Blue: Subwoofer on
The status indicator lights
blue when low frequency
sound is being passed
through the speaker.
The indicator does not light
in the normal dialog or high
frequency sound.
OUTPUT LEVEL control
This control is used to adjust
the volume of the subwoofer.
LINE INPUT
This RCA input should be
connected to the subwoofer pre
out on your AV receiver with
supplied RCA cable.
