ironLogic Z-5R NET Operation Instructions page 5

Characteristics of Z-5R Net controller operation in standalone mode (without
network connection).
Maximum number of keys – up to 2024 pcs.
-simple keys for passage
-master keys only to enter into the modes of programming and exit from
Locking mode
Locking
-locking keys for passage and entry into the locking mode
Additional operating modes:
- Locking mode – passage open for locking keys, closed for simple keys;
- Accept mode –simultaneous opening and record of all swiped keys (switch
by master key)
Characteristics of Z-5R Net controller network operation.
Maximum number of cards/keys:- 2024 шт
events memory capacity - 2048
maximum number of controllers in network - 255
rate of exchange by network RS-485: 19200/57600 bit/sec (set
automatically)
When the door sensor is installed "Door breaking" and "Unclosed door"
events are available.
1.О GENERAL
Controller Z-5R Net is designed to manage access in accommodation and production facilities, track of
passage time and events.
Controller can operate both in standalone mode and using the network.
Connection and operation in standalone mode of controller Z-5R Net are the same as for controller Z-5R.
Connection to network by RS 485 (double-wire connection)
Controller Z-5R Net allows connection of the following equipment:
- non-contact reader for proximity-cards, emulating key protocol DS1990А;
- non-contact reader – contactor;
- electromagnetic lock, electromechanical lock/latch;
- door release button (normally open);
- external buzzer, external light-emitting diode (analogue set at the controller plate);
- open door sensor (normally open type).

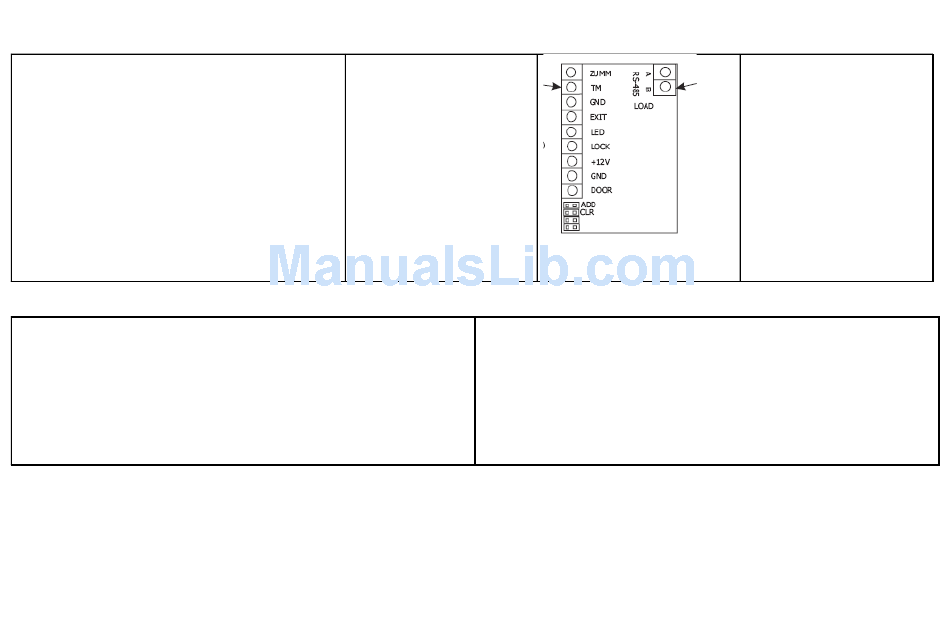

Connector No 1
1.
ZUMM – external buzzer.
2.
ТМ - input ТМ central
3.
GND – general earth (-)
4.
EXIT – door release button
5. LED – external light-emitting diode
(+)
6.
LOCK - lock
7.
+12V power +12V
8.
GND – general earth (-)
9. DOOR – door release sensor
(hermetic contact).
Date of sale: "_____" _______________________200___
Distributor______________________________________
Connector No2
(connection RS-485)
A- to A of converter
B- to B of converter
Note:
1) When non-contact reader MATRIX-II is
connected with Z-5R Net light-emitting
diodes and sound are managed by wire
ТМ.
2) Connection not required for:
External buzzer; light-emitting diode; door
sensor.
