ironLogic Z-5R NET Operation Instructions page 4

GENERAL CHARACTERISTICS OF PROGRAMMING MODE
To enter into required programming mode use short (less than 1 sec) and long (about 6 sec) swipes with
master key. Operation in programming mode is restricted with period after the last swipe (about 16
seconds), after which controller comes to initial condition informing about it with a series of five short
signals.
1. Adding of simple keys ( 1 д М).
Swipe and hold master key (long swipe). At the moment of swipe controller gives short signal confirming
identification of master key and in 6 seconds another signal confirming controller entry into the mode of
simple keys adding. After that master key should be removed. To add new keys swipe them in turn to the
controller with the interval between swipes not less than 16 seconds. After each swipe of a new key
controller gives confirming short signal. If the key is already recorded in the memory, it gives two short
signals. Exit from the mode occurs automatically in 16 seconds after the last swipe or after the swipe of a
master key. After exit from the mode controller gives a series of 5 short signals.
2. Adding of locking keys ( 1 д М).
In the mode of simple keys adding it is required to swipe the selected key to the controller and hold it for 9
seconds till the long signal (i.e. first it gives a short signal and after that long signal confirming adding of a
locking key).
If you do not add other keys the controller gives a series of short signals confirming exit from the
programming mode.
2. PROGRAMMING OF CONTROLLER MATRIX-II NET
2.1 Programming in operation in offline mode (without network connection)
First switch on (no keys in the base).
Short signals within 16 seconds. They indicate that the memory is deleted and the mode of master keys
adding is set.
At the moment of signals swipe the key to the controller to record it into its memory as a master key.
Termination of short signals confirms successful recording of the first master key.
To add new master keys swipe them in turn to the controller with an interval between swipes not exceeding
16 seconds. After each swipe of a new key controller gives a short confirming signal.
Exit from the mode of master keys adding occurs automatically in 16 second after the last swipe. After the
exit from the mode the controller gives five short signals.
Further master keys are used for programming.
If no keys were recorded turn on the controller again.
Entry into the mode of master key recording when power is supplied occurs only if the base is empty
(neither simple, nor master, nor locking keys).

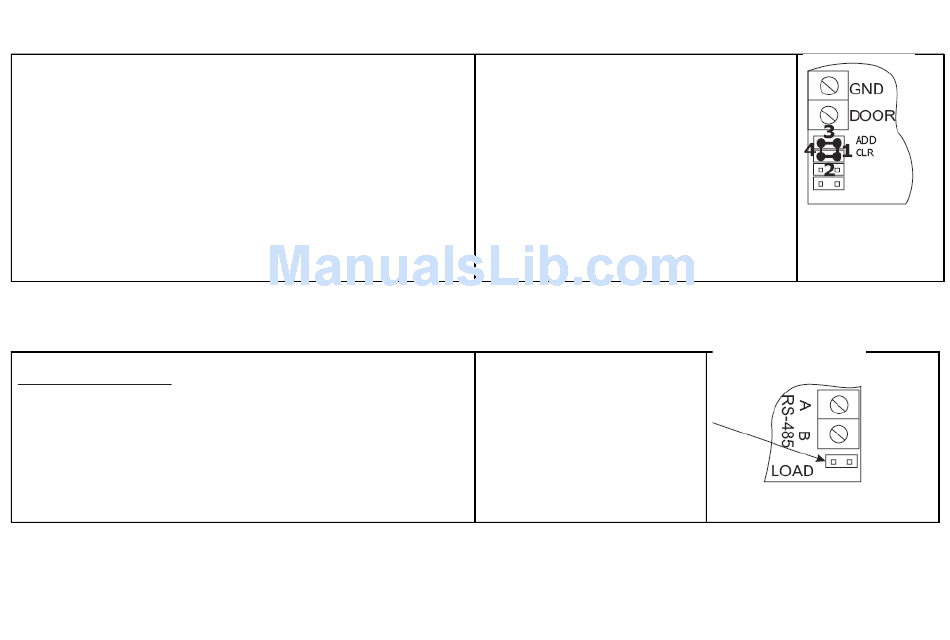

Use of socket straps No 1.
Controller is complete with one socket used for programming and setting
into the mode of electromechanical lock (total four positions).
Position No 1 – sets logics of power cascade without connection
element of the electromagnetic lock, in closed position voltage applied;
With connection element of electromagnetic lock, in closed position
voltage released
Position No 2 CLR – to delete controller memory. For this purpose turn
off power, install connection element and turn on power. After deleting
controller gives a series of short signals.
*-Deleting of all keys and programmed release time.
(sets default settings - 3 sec.)
Position No 3 ADD to add simple keys without master keys.
For this purpose turn off power, install connection element and turn on
power.
After a signal controller is in the mode of simple keys adding (you may
add simple, locking keys without master key)
Position No 4
- standard position, does not influence on controller operation
Connection element encloses at the controller
Socket No 2(LOAD)
Number of controller in the network is defined by
special software.
Initial all controllers have network address "1".
