Summary of Contents for Azumi K5QL
-

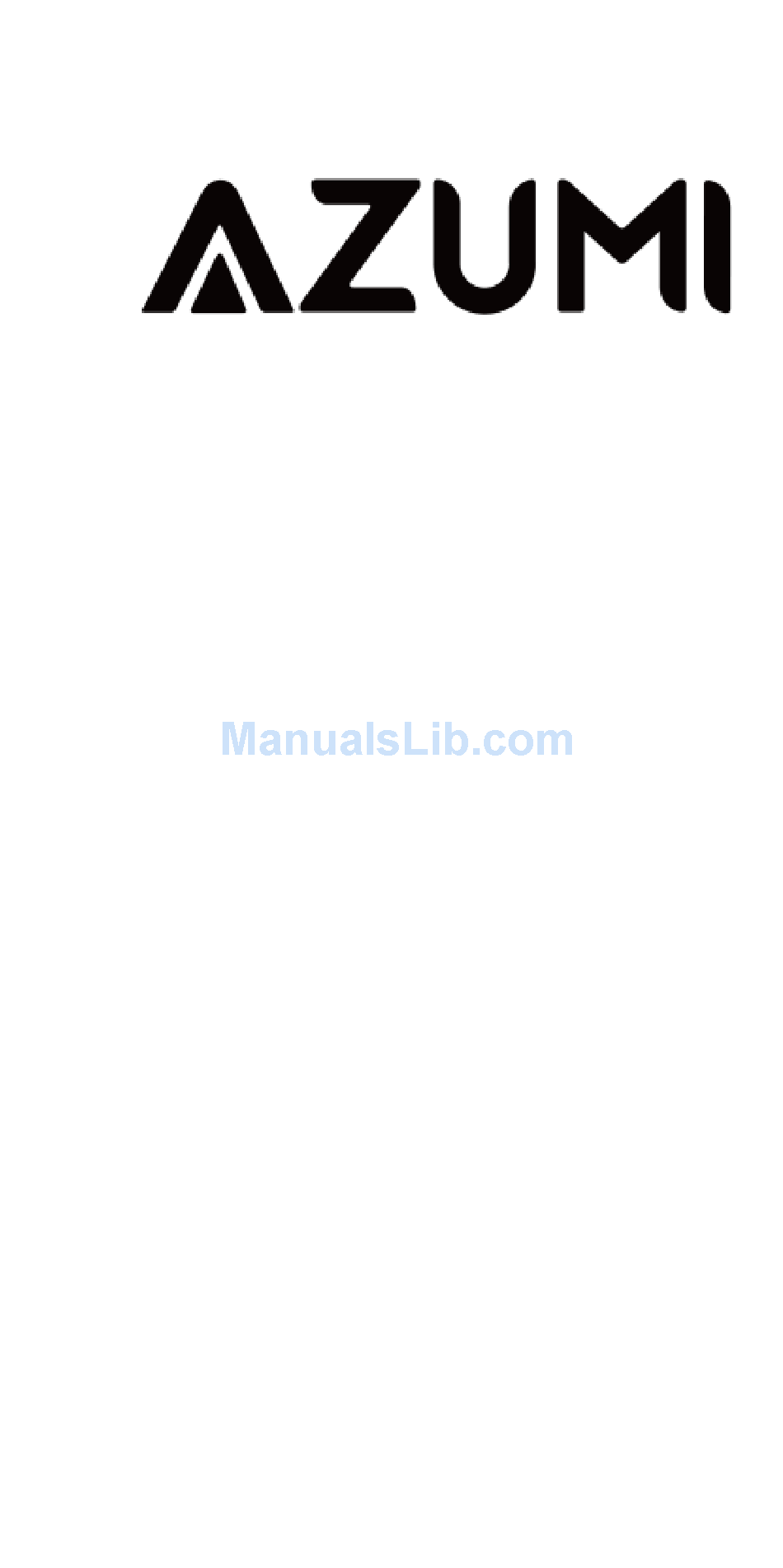

Page 1: User Guide
K5QL Mobile Phone User Guide... - Page 2 WELCOME Congratulations your purchase AZUMI_K5QL mobile phone. Your phone provides many functions which are practical for daily use, such as a hands-free loudspeaker, camera, Music player, Ultra clear video You can read the manual to understand how to use AZUMI_K5QL mobile phone and experience the well-established functions and simple operation method.

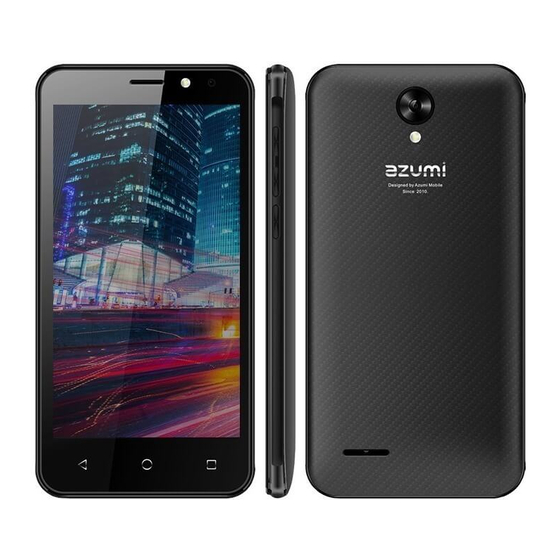

- Page 3 YOUR PHONE-FRONT VIEW...
- Page 4 YOUR PHONE-BACK VIEW...
-
Page 5: Charge The Battery
CHARGE THE BATTERY Connect this end to phone’s USB port. Tip: Be sure to charge your phone’s battery completely after inserting it in the phone for the first time. INSERT SIM AND Micro SD CARD Please insert the SIM card(s) according to the label on the phone. -
Page 6: Turn The Phone On And Off
into the designated slot is shown by a label on the phone. Tip: For additional media storage insert a micro SD card. TURN THE PHONE ON& OFF Hold down the power button to turn the phone Hold down the power button, then touch Power off to turn the phone off... - Page 7 DIM LOCK & WAKE THE PHONE When the power is on and you want to dim the screen, press the power button. When the screen is dimmed and you want to wake the phone, press the power button and then drag the lock to the right...
-
Page 8: Home Screen
HOME SCREEN Phone status bar and notifications Touch and hold an empty spot to change the wallpaper Touch it to enter Menu Touch it to message Touch it to Web Touch it to enter Carlo Touch it to enter dial pad interface... -
Page 9: Status Bar
APPS Touch an app to launch it STATUS BAR The status bar shows your phone’s status and notifications. (Notifications are described on the next page.) Notification icons Status icons... -
Page 10: Status Icons
Status icons The following status icons may appear on your screen: Icon Statement Icon Statement Headset is Network inserted signal level Indicates Bluetooth is battery activated capacity Unread Wi-Fi is messages connected Airplane Missed calls mode is activated Alarm is USB is activated connected... - Page 11 2. Touch Dial a number using the dial pad. 3. Touch to initiate the call Answer a call Drag Decline a call Drag VOLUME CONTROL WHEN CALLING Volume key is at the left side of the phone. During a...
- Page 12 conversation, you can press the volume key to tune the sound volume. SEND A TEXT From the Home screen, touch 2. Touch 3. Touch the To field, then enter a recipient. 4. Touch the Type message field, then enter a message 5.
- Page 13 Get to know the settings in your phone so that you can personalize them to your own requirements. Go to Settings to configure how your phone looks, sounds, communication, privacy, and operations in a variety of ways: You can use Wireless & Network settings to manage your SIM card, configure and manage connections to networks and...
- Page 14 You can view your battery status, Battery battery level and battery use in this interface. You can use the Applications settings to view details about the applications installed on your phone, to manage their data and Apps force them to stop, to view and control currently running services, and to view the storage used by applications, etc.
- Page 15 dates are displayed. You can also use these settings to set your own time and time zone, rather than obtaining the current time from the network, etc. You should set a certain time, Timer switch when the time arrive, the phone machine would power on/off automatically.
- Page 16 FM RADIO 1. Pull out the telescopic antenna or insert earphone, then Tap the Power icon to stop or play FM. 2. Tap the forward by 0.1 MHz or scroll the knob icon to change channel frequency. Press volume key to adjust the volume.
-
Page 17: Shoot A Video
Touch and hold Rewind/Forward Volume adjust Press side key Now playing: Touch to Touch open the current playlist. Shuffle: Touch to shuffle Touch the current playlist. Repeat: Touch to repeat the current playlist; touch Touch again repeat current track. Camera 1. -
Page 18: Sound Recorder
1. Launch the calculator by pressing the calculator icon on the home screen. 2. In the calculator app, enter numbers and arithmetic operators on the basic screen. Calendar You can use the calendar to keep track of important events. After entering the calendar function menu you can select year, month and date. -
Page 19: Sim Toolkit
SIM Toolkit STK features are provided by your service provider. If your SIM card supports STK feature, you will see the STK menu. Different STK has different STK main menu. Please contact your service provider if the STK does not work. - Page 20 USE AS MODEM VIA USB You can connect your phone to a computer with a USB cable, to transfer music, pictures, and other files between your phone’s SD card and the computer.
-
Page 21: Connect To Wi-Fi Networks
CONNECT TO Wi-Fi NETWORKS Wi-Fi is a wireless networking technology that can provide Internet access at distances of up to 100 meters, depending on the Wi-Fi router and your surroundings. Touch Settings> WI-FI . Check Wi-Fi to turn it on. The phone scans for available Wi-Fi networks and displays the names of those it finds. - Page 22 A50c 开机电流 Corriente eléctrica encendido 180-650mA 屏幕电流 Corriente eléctrica pantalla 100-280mA 屏幕电压 Voltaje Pantalla 3.4-4.2 Vcc 通话电流 Corriente eléctrica Llamada 80-590 mA 通话电压 Voltaje Llamada 3.6-4.2 Vcc 关机的电压 Voltaje celular apagado 3.4 Vcc Entrada 充电器输入电 100-240Vca，50-60Hz，0.15A Cargador de 流电压 corriente ca/cc Salida 输出电流电压...
-
Page 23: Fcc Caution
FCC Caution. This equipment has been tested and found to comply with the limits for a Class B digi tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This e quipment generates, uses and can radiate radio frequency energy and, if not installe d and used in accordance with the instructions, may cause harmful interference to ra dio communications. - Page 24 belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10mm for body worn must be maintained between the user’s body and the handset, including the antenna.
