2 Outlet HOse Faucet timer
DIAL
watering schedule
IMPORTANT PLEASE READ!
STATION
to program
RESET
WHEN ExpECTING FREEzING
TEMpERATURES, TIMERS SHOULD
MANUAL/CLEAR
BE REMOvED FROM THE HOSE
manually or to clear programming within a
FAUCET AND STORED INDOORS TO
specific program
AvOID pOTENTIAL FREEzE DAMAGE.
+/- Buttons
FILTER TRApS DIRT pARTICLES,
and system setup
pROLONGING LIFE OF TIMER.
CLEAN FILTER REGULARLy AND
REpLACE IF WORN.

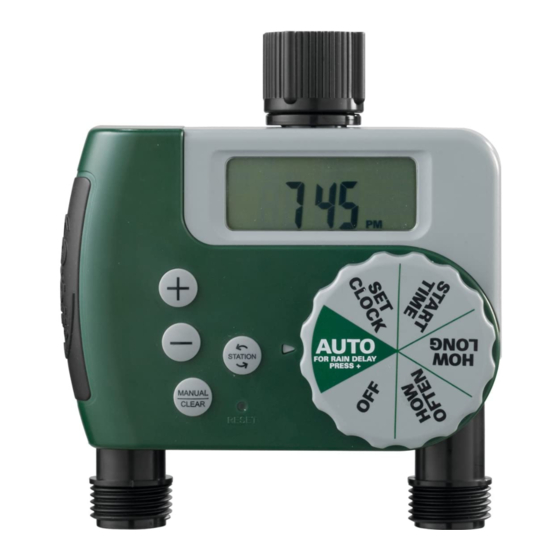

TIMER FEATURES
FILTER
HOSE TAP
CONNECTION
AUTO
customized schedule for both stations
+/-
STATION
SET CLOCK
BUTTONS
START TIME
DIAL
each Station to start
MANUAL/
HOW LONG
CLEAR
each Station
STATION 1
HOW OFTEN
STATION 2
OUTLET
OUTLET
each Station
OFF
RESET
p 801 295 9820
f 801 951 5815
www.fluid-studio.net
1065 South 500 West
Bountiful, Utah 84010
QUICK START
—Rotate the dial to customize your
INSTALLING THE BATTERIES
—Press to select the station you want
1. Remove the tray on the back of the timer by
sliding or pulling it out.
—Press to clear all programming
2. Insert two AA (1.5V) alkaline batteries (not
—Press to water
included) and replace the tray.
Note: Firmly replace the battery tray to insure
water resistance and increase battery life. You will
—Use these buttons to adjust time
know the battery tray is fully inserted if it does not
pull out easily.
pROGRAMMING THE TIMER
SET CLOCK
1. Turn dial to SET CLOCK.
2. Using the +/- buttons, set the time of day,
—Timer waters according to your
including AM and PM.
3. Turn dial to save changes.
—Set the time of day
START TIME
—Select what time you would like
—Determine how long to water
—Choose how often you will water
—Turn off all watering
3
dimensions:
proof no:
flat: w: 12.0" h: 6.0"
date:
09.05.13
finished: w 3.0" d: 0 h 3.0"
des:
SH
spck:
colors
color non
job no: N/A
printing
Registration
Die
client:
ORBIT
PMS
sku:
58910
Black
???
upc:
N/A
additional instructions:
·
Font sizes cannot be smaller than 7 pt.
file name:
58910-24 rA.indd
·
· Proofing Code:
software:
InDesign CS6
1. Turn dial to START TIME.
2. Select the station you would like to program
by pressing the STATION button.
3. Using the +/- buttons, set your start time,
including AM and PM.
4. Turn dial to save changes.
HOW LONG
1. Turn dial to HOW LONG.
2. Select the station you would like to program
by pressing the STATION button.
3. Using the +/- buttons, select watering
duration from 1 to 240 minutes.
4. Turn dial to save changes.
HOW OFTEN
1. Turn dial to HOW OFTEN.
2. Select the station you would like to program
by pressing the STATION button.
3. Using the +/- buttons, set your watering
frequency. You can choose to water every
6 hours, 12 hours, or from 1 to 7 days.
Printers are responsible for
meeting print production
requirements. Any changes
must be approved by the
client and Fluid Studio.
color non
printed piece must meet
printing
Product Position
designated specifications
on this form.
color non
printing
PMS
Glue Area
???
© 2013 Fluid Studio. This
work is the property of Fluid
Studio, and cannot be used,
reproduced or distributed
in any way without their
express permission.
MINS
EVERY
DAYS
