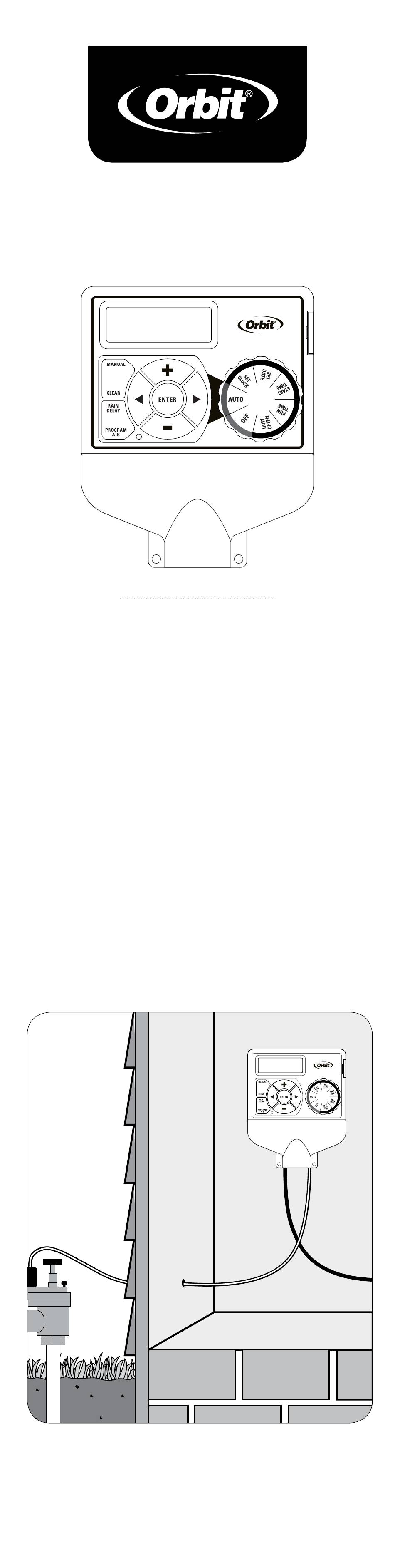

QUICK START GUIDE
Note: The quick start guide is intended to help
you get up and running with your new timer. It
includes basic installation and programming
help. For more detailed and advanced
instruction, please download the full manual
"Easy Dial Timer" at www.orbitonline.com
1. SELECT LOCATION
.
.
.
.
.
.
.
.
.
.
REQUIRED TOOLS:
Phillips Screwdriver
Wire Strippers
.
.
.
.
.
.
.
.
.
.
Clean, dry, and out of direct sunlight.
.
.
TIMER
Indoor
PN 57594-50 rB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 57594 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orbit 57594

Summary of Contents for Orbit 57594

  • Page 1 It includes basic installation and programming help. For more detailed and advanced instruction, please download the full manual “Easy Dial Timer” at www.orbitonline.com 1. SELECT LOCATION Indoor Clean, dry, and out of direct sunlight. PN 57594-50 rB...

  • Page 2: Mount Timer

    2. MOUNT TIMER Keyhole 1/8" No. 8 Screw Wall Pre-formed mounting holes Use included mounting Hang timer on screw using keyhole. template to mark screw locations. Level 24VAC SENSOR COM 1 Fasten screw through one of the pre-formed mounting holes. 3.

  • Page 3: Connect To Electrical Power

    Station 1 Strip wire Push in wire and tighten screw 24VAC SENSOR COM 1 5. CONNECT TO ELECTRICAL POWER 24VAC SENSOR COM 1 Attach power connector to 24VAC plug on the timer wiring terminal. 6. ACTIVATE BATTERY Remove plastic strip to activate battery.
  • Page 4 Battery Shroud Reset cover attachment Button Function: ENTER - To confirm a new setting MANUAL - To water manually CLEAR - To clear a setting PROGRAM - to switch between programs - A and B ARROW [ ] - To skip to the next setting / watering station or move to other programs/settings ARROW [...

  • Page 5: Program Timer

    7. PROGRAM TIMER Set Current Time (e.g. pacific, mountain standard) Turn dial to SET CLOCK enter current time (+/-). Set Date DATE • Turn dial to SET DATE to enter the Year, Month and Day. • Use the (+/-) button to select the Year. •...

  • Page 6: Additional Features

    8. ADDITIONAL FEATURES RAIN DELAY • Turn dial to AUTO and Press the [RAIN DELAY] button. • Push the [+/-] to select 24, 48 or 72 hours. • Press [ENTER] to begin. Press CLEAR to cancel the rain delay. MANUAL WATERING Your timer has the ability to allow you to manually water without disturbing the preset program.
  • Page 7 DOWNLOAD THE ORBIT B-HYVE LITE APP Let the Orbit B-hyve Lite app take the guess work out of programming your sprinkler timer. Download the “Orbit B-hyve Lite” app. After download, the app will guide you through setting up an account and entering information about your landscape.
  • Page 8 HELP 1-800-488-6156 or 1-801-299-5555 www.orbitonline.com Before returning this sprinkler timer to the store, contact Orbit ® Technical Service at: 1-800-488-6156, 1-801-299-5555. LISTINGS This Class B digital apparatus complies with Canadian ICES-003. Disconnection : Type 1Y Normal Pollution Situation. NOTICE The information in this manual is primarily intended for the user who will establish a watering schedule and enter that schedule into the sprinkler timer.
