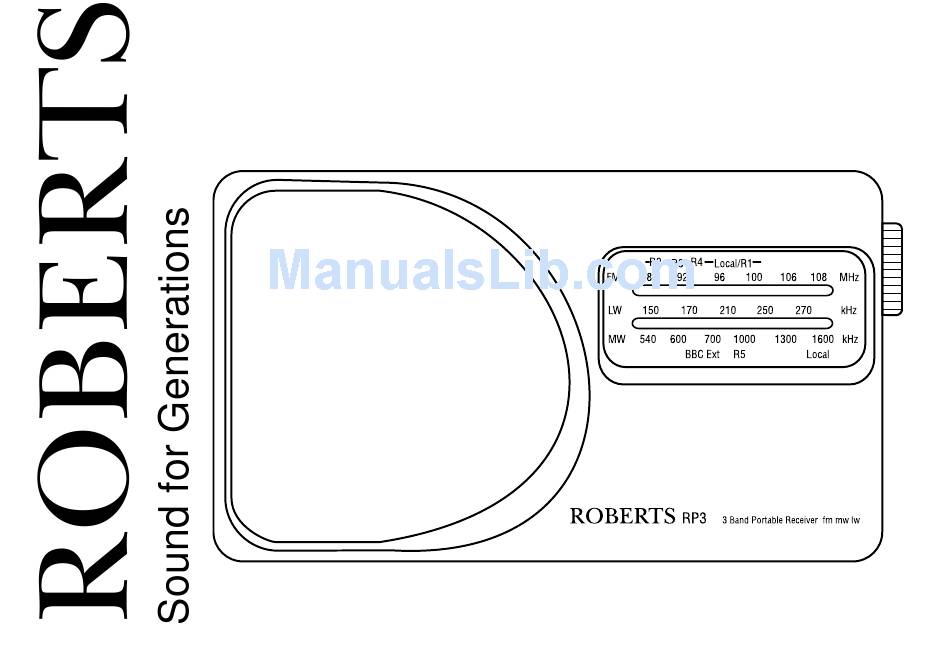

- Page 1 3 Band Battery Portable Radio Please read this manual before use...
- Page 2 Controls 1. Telescopic aerial 2. Waveband switch...
- Page 3 Controls (cont.) 3. Tuning scale 4. Tuning knob...
- Page 4 Controls (cont.) on rear) 5. Volume On/Off control 7. DC input socket 6. Headphone socket...
-
Page 5: Headphone Socket
DC input socket Note : The telescopic aerial is inoperative on MW and LW. The RP3 is fitted with a DC input socket (7) located on the left hand end of the cabinet. The RP3 requires a 6V 200mA supply with the centre pin of the plug having a negative polarity. -
Page 6: Specifications
Specifications Circuit Features Power Requirements Loudspeaker 65mm 8ohms Batteries 6.0V 4 x IEC R6 (AA size) cells Output Power 300 mW into 8ohms Headphone socket 3.5mm dia Battery Life Approx. 80hrs of listening for 4 hours a day at Aerial System FM Telescopic aerial normal volume, using Alkaline cells. - Page 7 In the event that it is not possible to return the instrument to the Roberts dealer from whom it was purchased, please contact Roberts Radio service department at the address shown on the back page of this manual before taking further action.
- Page 8 ROBERTS RADIO CO. LTD 127 Molesey Avenue, West Molesey, Surrey KT8 2RL Tel No: 081-979 7474 Fax No: 081-979 9995...
