Chap 5 Controlling-panel operations
5-1. _0 Types
5-1-1 Introduction

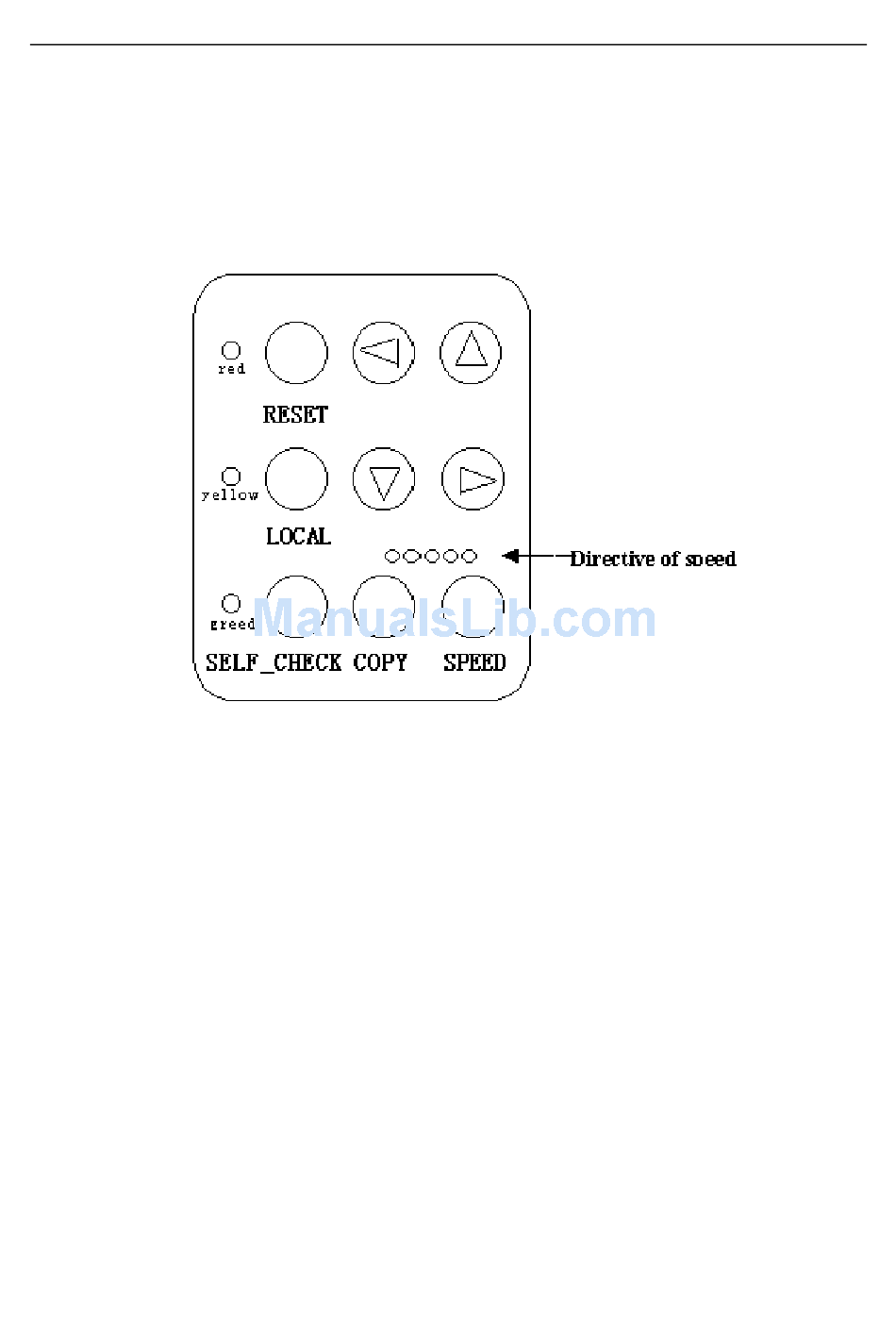

1.State lights:
Red light: directive of power, when it is on means to be properly running.
Yellow light: directive of local, the machine is in local state when it is on and
remote state when it is off.
Green light: directive of set-up, when it is on means to be in set-up state and the
bode-rate of serial communication can be set. If the yellow and green lights flash up
at the same time, that means to be in copy state.
2.Speed lights:
Red light: directive of high speed, "on" means to be at the speed of four high
grades and "off" means at four low speed grades.
Green light: directive of speed grade, the speed grade at current is the number of
green light's position if the red light is off, or to be added four. For example, when
the no. 3 green light and the red light are on at the same time, the grade is 7 (3 + 4 =
7).
3.Direction keys:
In local state, the carriage and the roller can be moved by pressing direction keys;
In remote state, pressing them can control the plotter up and down; In set-up state,
