Summary of Contents for USCutter TITAN 2 SE

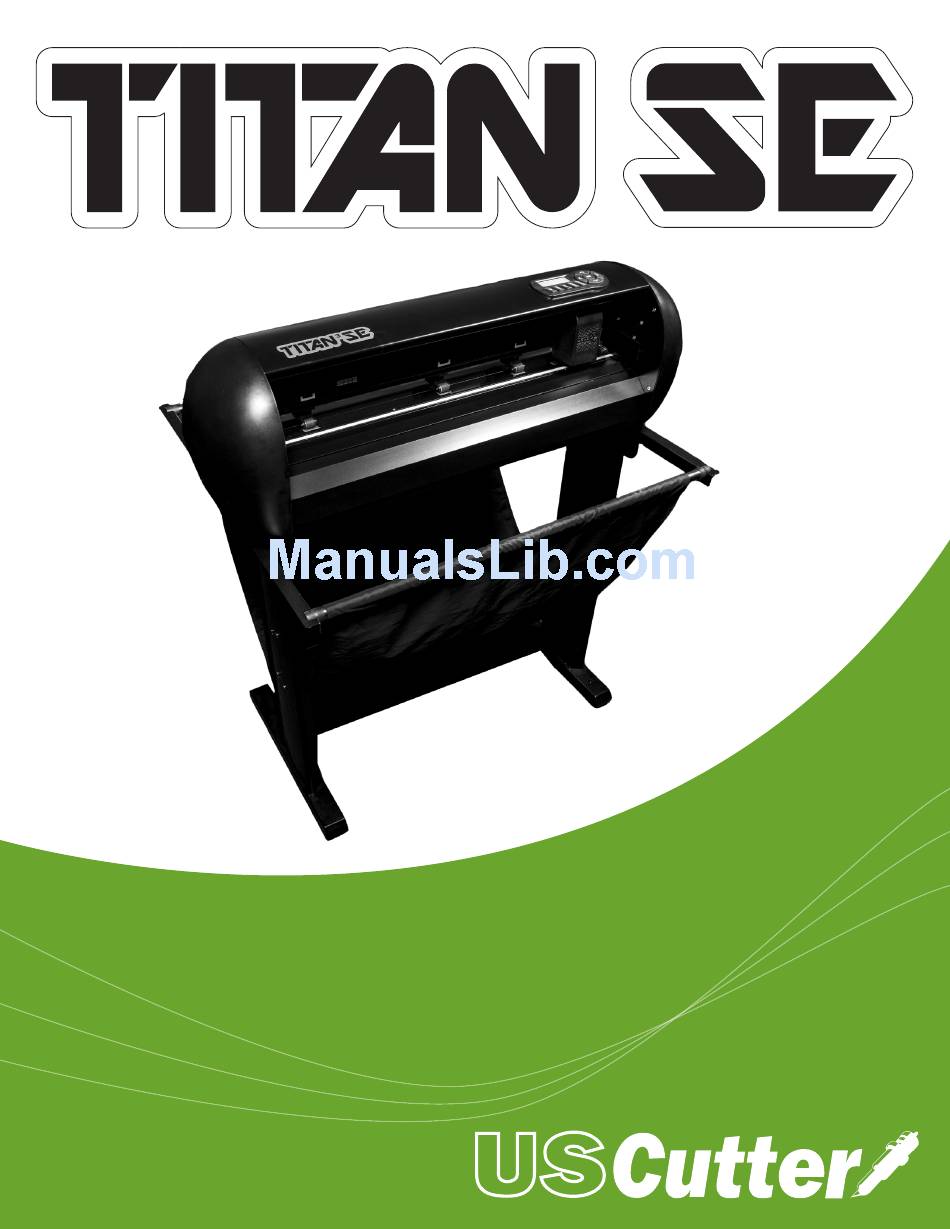

- Page 1 TITAN 2 SE / TITAN 3 SE USER MANUAL...
- Page 2 Thank you for your purchase of this new Titan SE Vinyl Cutter Congratulations on purchasing a quality USCutter product! This manual applies to Special Edition Titan 2 SE and Titan 3 SE models. Please read these operating instructions carefully before using the product.
-
Page 3: Safety Precautions
Vinyl cutting is a creative medium and can be an enjoyable hobby or classroom learning experience, but this vinyl cutter is not a toy and should not be used by children without supervision. 425.481.3555 www.uscutter.com... - Page 4 Ensure that liquids and metal objects do not get into the inside of the cutter. Ensure that the wall socket used is grounded and protected with a ground fault switch. Ensure that the connected voltage (110V) does not deviate by more than ±10%. Otherwise install a voltage stabilizer. 425.481.3555 www.uscutter.com...
- Page 5 Do not touch the tip of the sliding blade to avoid injury. Always place the unit on a stable base to prevent it from falling down. Do not operate the unit during thunderstorms; it can be damaged or destroyed by lightning. 425.481.3555 www.uscutter.com...
- Page 6 Items Included Before starting work, please check whether the following items are all present: 425.481.3555 www.uscutter.com...
- Page 7 STEP 2 Using 4 screws and the allen key, attached the foot to the bottom of the leg as shown here. Repeat the same procedure for the leg on the opposite side 425.481.3555 www.uscutter.com...
- Page 8 Repeat the same procedure for the opposite side of the stand. STEP 4 Next, using the black screw guides provided provided, insert screws into guides and with the allen key attach the cross beam to both as shown in the diagram. 425.481.3555 www.uscutter.com...
- Page 9 ONLY IN THE CASE OF THE 68” MODEL, WHEN OPTIONAL FILM SENSOR HAS BEEN PURCHASED, THE FOLLOWING STEPS ARE ALSO NEEDED: STEP 6 Using the provided screws, attach the secondary support leg as shown 425.481.3555 www.uscutter.com...
- Page 10 STEP 7 Attach the secondary support to the stand as shown STEP 8 For 68” model with optional automatic vinyl feeding mechanism, when assembled correctly the stand should appear as shown. 425.481.3555 www.uscutter.com...
- Page 11 Control panel c) Blade holder d) Pressure lever for all pressure rollers e) USB and serial interfaces f) Media feed roller (68” model adds optional film sensor) g) Pressure rollers h) Stand with catch basket i) Power supply, powerswitch 425.481.3555 www.uscutter.com...
-
Page 12: Control Panel
OK KEY - Sets a new X/Y zero point at the current bottom of this key allows the user to location, or if in configuration menus, exits config increase or decrease the force (pressure) menu and resumes ready state of the blade on the material being cut. 425.481.3555 www.uscutter.com... - Page 13 VinylMaster operates on Windows Vista, Windows XP, Windows 7, Windows 8, Windows 8.1 and Windows 10 (older versions of Windows are not supported) VinylMaster will also run on a Mac by using Boot Camp. (note that Boot Camp installations are not supported by USCutter) To install the software on a Windows PC: •...
- Page 14 Installing Vinyl Master drivers Under the Launcher pull down menu select Vinyl Spooler When in the Spooler select Connections tab 425.481.3555 www.uscutter.com...
- Page 15 Click ADD, then select desired Titan maker from pull down menu Select the specific cutter from the pull down menu 425.481.3555 www.uscutter.com...
- Page 16 Verify that Direct USB Port appears and then select Detect Follow the instruc- tions to power off/ on your cutter and click Next. 425.481.3555 www.uscutter.com...
- Page 17 Newer versions of Vinyl Master Cut also have extensive help menus and context sensitive videos that will help train you and help guide you through any software issues you may experience. 425.481.3555 www.uscutter.com...
- Page 18 Blade Carriage . is protruding appro ximately 1/64 of an against the Cap . This will help keep inch. the cap in place during operation. 6 months Blades should be replaced every . Your blade may need to be replaced 425.481.3555 www.uscutter.com...
- Page 19 • Ragged edges after cutting the vinyl indicate that the blade is dull. Replacing a dull blade with a sharp one will solve this problem. Blades should be replaced every 6 months or whenever they are no longer sharp. 425.481.3555 www.uscutter.com...
- Page 20 • Loosen the lock nut until there is sufficient room to insert the blade holder. • Insert the blade holder so that the brass colored ring is just above the lock nut holder. Tighten the lock nut to secure the blade holder. a) Blade adjustment screw b) Lock nut c) Blade holder 425.481.3555 www.uscutter.com...
- Page 21 • Lock the two pressure rollers by turning down the pinch roller lever on the outer edges of the material (about 1/2 inch indented), so that the material is positioned and a maximum cutting area is guaranteed. • The pinch rollers can be adjusted by tensioning the spring to the desired pressure. 425.481.3555 www.uscutter.com...
-
Page 22: Setting The Origin Point
The origin point is where the cutter blade will start to cut. Note that cutter can be set to compensate for the distance between the laser and the blade to allow for using the laser as a visual guide for desired origin point. This is done in Vinylmaster. 425.481.3555 www.uscutter.com... - Page 23 - Reset setting. Press and hold the right arrow key for 3 seconds to reset to factory settings. Note that this will also clear factory calibrated settings for XP/YP scale. Not advised. 425.481.3555 www.uscutter.com...
- Page 24 For most applications, however the blade only needs to be exposed half the width of a credit card. A common rookie mistake is for first time users to expose too much blade. Become a pro and keep the your blade at minimal depth. 425.481.3555 www.uscutter.com...
- Page 25 • The cutter will now cut your job as shown on your PC screen. Tip: Some users prefer to insert the plotter pen instead of the cutter blade holder until they are comfortable that they are ready to proceed with an actual cut. 425.481.3555 www.uscutter.com...
- Page 26 425.481.3555 www.uscutter.com...
- Page 27 425.481.3555 www.uscutter.com...
- Page 28 This option needs to be purchased separate- ly. See assembly section for instructions on how to attach to the stand. 425.481.3555 www.uscutter.com...
- Page 29 High Accuracy Servo Servo Weight 26lbs / 49lbs with 26lbs / 49lbs with packag- 49lbs / 71lbs with pack- 110lbs / 142lbs with packag- packaging+stand ing+stand aging+stand ing+stand Dimensions 36”x12”x10” 36”x12”x10” 63”x12”x10” 76”x12”x10” W / H / D 425.481.3555 www.uscutter.com...
- Page 30 425.481.3555 www.uscutter.com...
- Page 31 425.481.3555 www.uscutter.com...
- Page 32 Extended warranties must be purchased during the time initial warranty is in effect. On Cutter equipment, USCutter will supply new or rebuilt parts to replace parts that are found to be defective within the warranty period instead of replacing the equipment outright. USCutter will ship these parts via FedEx ground shipping with no cost to the customer as long as the shipment is within the United States.
- Page 33 Defective Items: If any item arrives in unusable condition, USCutter must be notified within 30 days or receiving the product or replacement may not be provided. USCutter reserves the right to request proof in the form of photos as proof of defects or to document failure of parts replaced under warranty.
- Page 34 For permission requests, write to USCutter, 7945 NE 65th St., Suite 200, Redmond, WA 98052...
