StarTech.com US1GC303APD Quick Start Manual

Quick-start guide
USB-C to GbE Adapter with 3-Port Hub - PD Charging
US1GC303APD
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
Introduction
You can connect the US1GC303APD to the USB-C™ port on your
laptop to add three USB 3.0 ports and one GbE port. When you
use a USB-C based power adapter (not included) with this network
adapter, you can power and charge your laptop using USB Power
Delivery 2.0.

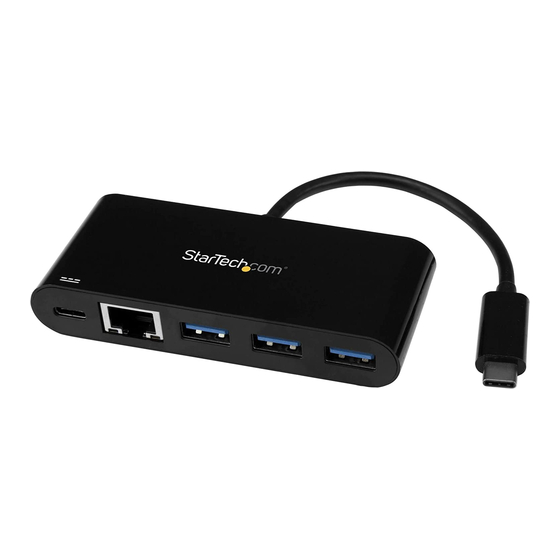

Product diagram
Ethernet port
(10/100/1000)
USB-C port
(power input only)
Connection and
activity LEDs
Package contents
• 1 x USB network adapter
• 1 x quick-start guide
About USB 3.0 and USB 3.1 Gen 1
USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard
offers speeds up to 5Gbps. Any mention of USB 3.0 in this manual or
on the StarTech.com website for US1GC303APD refers to the 5Gbps
USB 3.1 Gen 1 standard.
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/US1GC303APD.
USB-A ports
USB-C connector
(USB 3.0)
*actual product may vary from photos
Requirements
• A laptop with a USB-C port
If your laptop doesn't support USB Power Delivery 2.0, you can't use
the US1GC303APD network adapter to pass power through to your
laptop.
USB Power Delivery 2.0 requirements
• A laptop with a USB-C port that supports USB Power Delivery 2.0
• A USB-C power adapter
• An AC electrical outlet
Not all USB-C ports support the full functionality of the USB Type-C™
standard. To use the US1GC303APD to power and charge your
laptop, make sure that the USB-C port on your laptop supports USB
Power Delivery 2.0
Requirements are subject to change. For the latest requirements,
please visit www.StarTech.com/US1GC303APD.
USB Power Delivery 2.0
USB Power Delivery 2.0 is a specification that allows power (up to
100 watts) to be sent over a USB-C or Thunderbolt™ 3 cable that
supports the specification.
The US1GC303APD network adapter supports USB Power Delivery
2.0 and will deliver up to 60 watts of power through the USB-C or
Thunderbolt 3 port on your laptop.
Connect the network adapter
1. Connect the USB-C connector on the network adapter to a USB-C
port on your laptop.
2. Connect your USB peripherals to the USB-A ports on the network
adapter.
3. Connect an RJ-45 network cable to your network gateway (router
or switch) and to the Ethernet port on the network adapter.
The US1GC303APD is natively supported and when you connect it
to your laptop, your laptop automatically detects and installs the
required drivers.
Powering the network adapter
You can power the network adapter in the following ways:
• Bus power
• USB Power Delivery 2.0
If you use bus power to power the network adapter, it might not
provide sufficient power to all of your connected peripherals. To
make sure that your connected devices are detected and functional,
you should use a USB-C power adapter (for example, your laptop
USB-C power adapter) to power the network adapter.
Manual Revision: 01/17/2017
